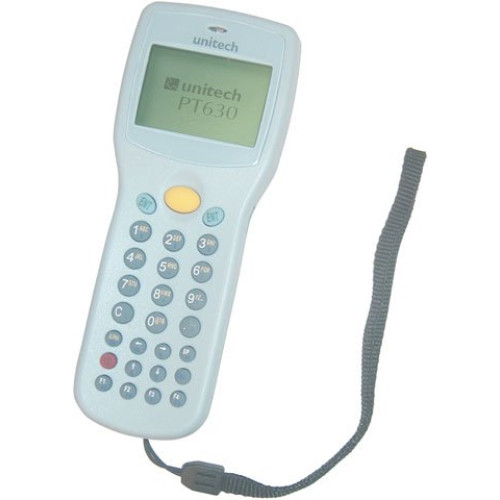

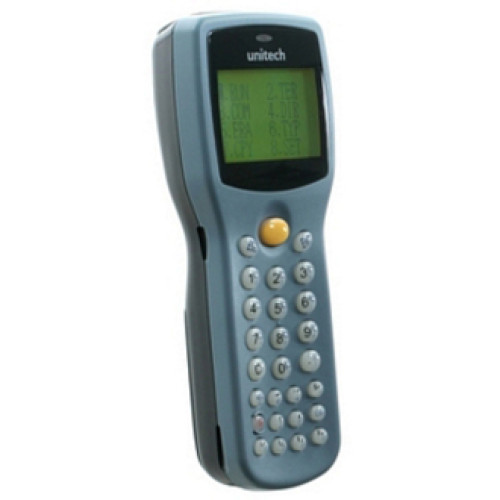

PT630D-2C00B - Unitech PT630 Hand Held Computer

The PT630 is ideal for many environments, including transportation and inventory management, meter reading, mobile sales and other field services. The PT630 is also idea for retail applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
PT630D-2C00B PT630, 2.5MB RAM, batch, 27 keys, monochrome display. Includes CCD scanner, power supply, battery, & RS-232 communication & charging cable.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

PT630D-2C00B Details

Technical Information

  • Operating System: DOS Compatible
  • Processor: NEC V25
  • Data Collection Type: Batch
  • Scanner Type: CCD Long Range
  • Symbologies Supported:
    • China Post
    • Codabar
    • Code 39
    • Code 39 Full ASCII
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • EAN-128
    • Interleaved 2 of 5
    • ITF
    • UPC-A
    • UPC-E
    • China Postal Code

General Information

  • Manufacturer: Unitech
  • Product Line: Portable Terminals (PT)
  • Product Name: PT630D Portable Data Terminal

Physical Characteristics

  • Display:
    • Monochrome Backlight - 8 Lines x 20 Characters - LCD
    • Monochrome Backlight - 4 Lines x 12 Characters - LCD
  • Display Resolution: 128 x 64
  • Keyboard:
    • 26 Key Alphanumeric Integrated
    • 1 Key Trigger Integrated
  • Battery Capacity: 900 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions:
    • 6.6" (168mm) x 2.64" (67mm) x 1.38" (35mm)
    • 6.6" (168mm) x 2.64" (67mm) x x 1.38" (35mm)
  • Weight: 245 g - Approximately with Battery Pack

Environmental Conditions

  • Environmental Sealing: IP54
  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • 8kV Air Discharge
    • 4kV Contact Discharge
  • Drop Spec: 4' To Concrete

Other

  • Additional Information: Communication Port: RS-232
  • Package Contents:
    • PT630D Portable Data Terminal Battery RS232 Cable A/C Power Supply Software
    • PT630D Portable Data TerminalBatteryRS232 CableA/C Power SupplySoftware

Agency Approvals

  • Agency Approvals:
    • FCC CE
    • FCCCE

Memory

  • RAM Memory: 2.5MB
  • Flash Memory: 256KB

Warranty

  • Manufacturer Warranty: 1 Year(s)

The Unitech PT630D-2C00B is also known as UNI-PT6302C00B or PT630D2C00B .
