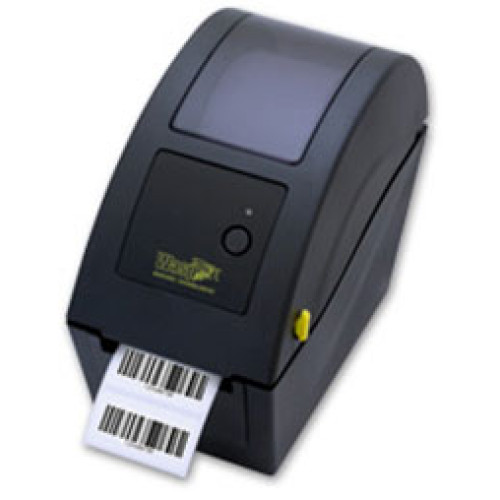

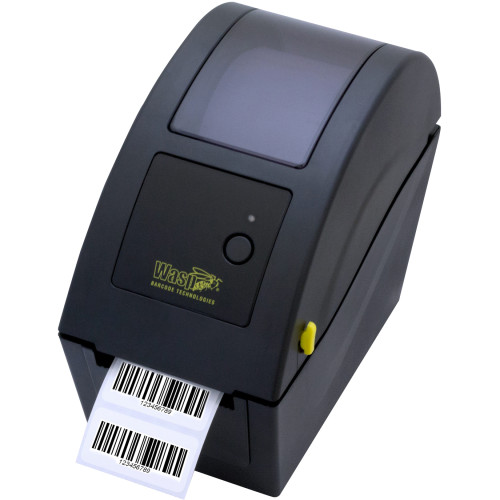

Wasp WPL25 Barcode Label Printer
Part #: 633808403836 | SKU: WAS187049

The Wasp WPL25 enables you to maximize your workplace efficiency and productivity by using a 200 MHz, 32 bit RISC processor. With a MicroSD memory expansion slot, the WPL25 can easily store up to 4 GB of additional fonts or graphics. For space constrained environments, the WPL25 includes wall mountable holes on the bottom cover, providing you the option to have a wall mounted or desktop printer.

Wasp WPL25 Barcode Label Printer

Part Details: WPL25, Desktop Barcode printer

Additional Information

Manufacturer Wasp
Model Name WPL25
Print Resolution 203 dpi

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.13"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128 UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • UPC E with 2 and 5 add on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • GS1 DataBar
    • Code 11
    • PDF-417
    • Maxi Code
    • Data Matrix
    • QR Code
    • Aztec Code

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: Wasp
  • Manufacturer: Wasp Barcode Technologies
  • Product Model: WPL25
  • Product Name: WPL25 Desktop Barcode Printer

Physical Characteristics

  • Height: 6.7"
  • Width: 4.3"
  • Depth: 8.2"
  • Form Factor: Desktop
  • Weight (Approximate): 2.60 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • WPL25 Desktop Wristband Printer
    • USB Cable
    • Power Cord
    • 200 x Sample Labels (2.0 in. x 1.0 inc)
    • 2-year Warranty
    • WPL25 Desktop Wristband Printer
    • USB Cable
    • Power Cord
    • 200 x Sample Labels (2.0 in. x 1.0 inc)
    • 2-year Warranty
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TUV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Length: 90"
  • Media Type: Label
  • Media Size: 0.59" x 2.36"
  • Media Sensor:
    • Cover Open Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Fonts & Emulation

  • Language Emulation:
    • WPL
    • ZPL
    • EPL

Warranty

  • Limited Warranty: 2 Year

Power Description

  • Power Source: AC Supply
Extended Details
