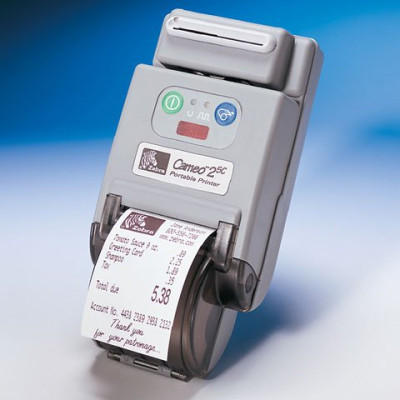

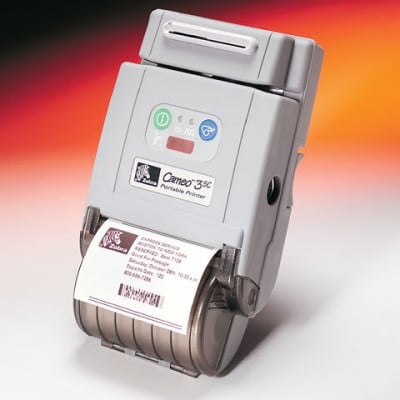

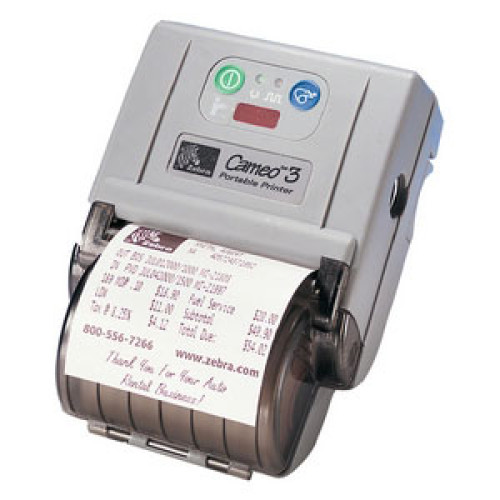

Zebra Cameo 3 Portable Printer

Zebra MZ320 A newer version of this item is available.
It is replaced by the Zebra MZ320.
Receipt printing is quick and efficient with the lightweight, versatile Cameo 3 mobile printer. The Zebra Cameo 3 is light, sleek and durable enough to carry and use anywhere. Easily clipped to a belt, the Cameo 3 simplifies point of sale transactions, receipt printing and other ticket printing. Communicate wirelessly with Cameo printers using IrDA or Bluetooth technology. The Zebra Cameo 3 features a three-inch print width.
Questions?
1-888-875-7170
We respond to every email
Cameo 3 Options
Part # DescriptionAvailabilityPriceOrder
C3B-0UBAV001-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Bluetooth, Linered Platen, VAR, Belt Clip and Mag Card Reader See Replacement Call for Details
C3B-0UBAV000-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Bluetooth, Linered Platen, VAR and Belt Clip. Order charging cable separately. See accessories. See Replacement Call for Details
CPB-0UBAV010-00 Cameo 3, Direct thermal, 203 dpi, 3" printhead, Magnetic Card Encoder, 1MB, Bluetooth, Linered Platen, VAR and Shoulder Strap Check Availability Call for Details
CPB-0U2AVS10-03 Cameo 3, Direct thermal, 203 dpi, 3" printhead, Magnetic Card Encoder, 1MB, IrDA, Linered Platen, VAR and Shoulder Strap Check Availability Call for Details
C3N-1U1AVS00-A1 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, 802.11b, Linered Platen, VAR, Symbol PIM Compatible, Belt Clip Check Availability Call for Details
C3C-0UFA0001-00 Cameo 3, Direct thermal Mobile Receipt printer, 203 dpi, 3 inch Print width, 3 ips Print speed, Serial interface, 2MB SRAM/2MB Flash, 802.11b VALUE, Magnetic Card Reader Check Availability Call for Details
C3C-0UFA0000-00 Cameo 3, Direct thermal, 3" Printhead, 2MB, 802.11b ZEBRA Value radio Check Availability Call for Details
C3C-0UBA0001-00 Cameo 3, Direct thermal, 3" Printhead, 2MB RAM, 2MB Flash, Bluetooth, Linered Platen, Belt Clip and Magnetic Card Reader Check Availability Call for Details
C3C-0UBA0000-00 Cameo 3, Direct thermal Mobile Receipt printer, 203 dpi, 3 inch Print width, 3 ips Print speed, Serial interface, 2MB SRAM/2MB Flash, Bluetooth, Linered Platen and Belt Clip Check Availability Call for Details
C3C-0U2A0000-00 Cameo 3, Direct thermal, 3" Printhead, 2MB RAM, 2MB Flash, IrDA, Linered Platen and Belt Clip Check Availability Call for Details
C3C-0U1A0000-00 Cameo 3, Direct thermal, 3" Printhead, 2MB RAM, 2MB Flash, Cable Ready, Linered Platen and Belt Clip Check Availability Call for Details
C3B-0UBAVS01-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Bluetooth, Linered Platen, VAR, Symbol PIM Compatible, Belt Clip and Mag Card Reader Check Availability Call for Details
C3B-0UBAVS00-L1 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Bluetooth, Linered Platen, VAR, Charger and Belt Clip Check Availability Call for Details
C3B-0UBAVS00-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Bluetooth, Linered Platen, VAR, Symbol PIM Compatible and Belt Clip Check Availability Call for Details
C3B-0UBAV011-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Bluetooth, Linered Platen, VAR, Shoulder Strap and Mag Card Reader Check Availability Call for Details
C3B-0UBAV010-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Bluetooth, Linered Platen, VAR and Shoulder Strap Check Availability Call for Details
C3B-0UBA0001-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Bluetooth, Linered Platen, VAR, Belt Clip and Mag Card Reader Check Availability Call for Details
C3B-0UBA0000-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Bluetooth, Linered Platen, VAR and Belt Clip. Order charging cable separately. See accessories. Check Availability Call for Details
C3B-0U2AVS00-L1 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, IrDA, Linered Platen, VAR, Charger and Belt Clip Check Availability Call for Details
C3B-0U2AVS00-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, IrDA, Linered Platen, VAR, Symbol PIM Compatible and Belt Clip Check Availability Call for Details
C3B-0U2AV000-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, IrDA, Linered Platen, VAR and Belt Clip Check Availability Call for Details
C3B-0U1AVS00-L1 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Cable Ready, Linered Platen, VAR, Charger and Belt Clip Check Availability Call for Details
C3B-0U1AVS00-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Cable Ready, Linered Platen, VAR, Symbol PIM Compatible and Belt Clip Check Availability Call for Details
C3B-0U1AV001-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, 1MB, Cable Ready, Linered Platen, VAR, Belt Clip and Mag Card Reader Check Availability Call for Details
C3B-0U1AV000-00 Cameo 3, Direct thermal, 203 dpi, 3" Printhead, Cable Ready, Linered Platen, VAR and Belt Clip Check Availability Call for Details
C3A-0UBAVS00-00 Cameo 3, Direct thermal, 203 dpi, 2.83" Print width, 3 ips Print speed, Bluetooth, Linered Platen, VAR, Symbol-PIM Compatible and Beltclip Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
AK17591-345 Cable, Mobile Printer to MC3000, 8 ft., Coiled, For Cameo Ships Free Today $54.11
Retail $75.65
Save 28%
BL11757-001 Interface Cable for the QL, ENC and Cameo printers Ships Free Today $30.64
Retail $35.60
Save 13%
CC16614-G2 Lithium Ion battery, DC/DC, 9-30 VDC. Ships Free Today $194.06
Retail $263.71
Save 26%
CC16614-G3 Lithium Ion battery, DC/DC, 30-60 VDC.
Ships Free in 3-5 Days
$282.91
Retail $376.73
Save 24%
BL12093-1 Interface cable for Symbol PDT 3100/3500/6100
Ships Free in 3-5 Days
$30.30
Retail $35
Save 13%
AK17591-347 QL/Cameo 8 ft. Coiled Cable for Symbol MC1000
Ships Free in 3-5 Days
$63.10
Retail $85
Save 25%
Recommended Labels
Zebra Z-Perform 1000D (LD-R4AW5B-R)
4" x 6" Direct thermal paper label. Black mark sensing. 105 labels/roll, single roll. Also available as a case (Part# LD-R4AW5B).
Ships Today
$14.51
+ Add to Quote
Zebra Z-Perform 1000D (LD-R4AW5B)
4" x 6" Direct thermal paper label. Black mark sensing. 105 labels/roll. 36 roll case. Also available as a roll (Part# LD-R4AW5B-R).
Ships Today
$328.50
+ Add to Quote
Zebra Z-Ultimate 3000T White (18940-R)
2" x 1.25" Thermal transfer polyester label. 2,070 labels/roll, single roll. Also available as a case (Part# 18940).
Ships Today
$51.98
+ Add to Quote
Zebra Z-Ultimate 3000T White (18940)
2" x 1.25" Thermal transfer polyester label. 2,070 labels/roll, 8 roll case. Also available as a roll (Part# 18940-R).
Ships Today
$426.56
+ Add to Quote
Zebra Z-Select 4000D (10010043-R)
3" x 1" Direct thermal paper label. 2,340 labels/roll, single roll. Also available as a case (Part# 10010043).
Ships Today
$20.43
+ Add to Quote

Zebra Cameo 3 Details

Printer Specifications

  • 203-dots-per-inch resolution (8 dots per mm)
  • Print width: 2.83" (71.9mm) maximum
  • Maximum receipt media width: 3.1" (78.5mm)
  • Maximum label length with 203dpi (with standard memory): 10" (260mm)
Media Dimensions
  • Total thickness: 3.2mil to 5.5mil -- Cameo 3 prints receipts only
  • Label roll outside diameter: 2.2" (56mm)
  • Label roll inside diameter: .75" (19mm)
Media Sensors
  • Reflective
Print Speeds
  • Maximum Print Speed: 3" (76.2mm) per second with 203dpi
Fonts
  • 25 types, downloadable, scalable fonts
  • Supports user-defined fonts and graphics-- including custom logos
Memory
  • Standard: 1 MB SRAM; 1 MB Flash
Bar codes/Symbologies
UPC-A UPC-E EAN-8
Code 39 NW-7 EAN-18
Code 93 MSI/Plessey Postnet
Code 128 Interleaved 2-of-5 UCC/EAN-128
Codabar UPC-A UPC-E

2-Dimensional Codes

Maxi Code PDF417

Electrical

  • 7.2V; 1.6Ah
  • 120/230V VAC/47-63Hz battery charger brick
  • Agency approvals: FCC (Part 15 Subpart B/ClassA);FCC Class B; CE compliance
Communications Interface
  • 8 pin RS-232 connector serial port
  • Optional: IrDA
  • Optional: Bluetooth
Physical
  • Height: 6.2" (157.5mm)
  • Width: 4.7" (119.4mm)
  • Depth: 2.6" (66mm)
  • Weight without options: 1.4 lbs (.64kg)
Environment Operating temperature
  • Operating Temperature: 5°F (-15°C) to 122°F (50°C)
  • Storage/transportation temperature: -13°F (-25°C) to 158°F (70°C) 10% to 90% non-condensing relative humidity (storage)

Options

  • Wireless Bluetooth communication
  • Wireless I/R communication
  • Environmental case for increased printer protection
  • Shoulder strap or belt clip
  • UCN72 Fast Battery Chargers
  • UCN74 Quad Battery Chargers
