More Standard Features
- 203 dpi resolution (8 dots/mm)
- Print Speed: up to 4 ips (102 mm/s)
- CPCL and ZPL programming languages
- Resident fixed and scalable fonts
- 400 MHz 32-bit ARM processor with 128MB RAM
- 128 Flash supports downloadable programs, receipt formats,
fonts, and graphics
- USB port
- 16oomAH Li-Ion battery
- Optical out-of-media sensing using fixed center position
sensor
- Tear bar for easy receipt dispensing
- Supports vertical and horizontal printing
- Printer can be used in any orientation
- Fixed media roll width
- "Clamshell" design for easy loading
- Management : Mirror, SNMP, Web server (with customizable HTML
pages), Wavelink Avalanche®
- Four LEDs as user interface indicators
- 4' (1.2 m) drop to concrete (multiple times)
- IP42 rated for dust and water resistance (IP54 with durability
enhancing case)
- Label odometer
- Bluetooth™ security modes 1-4
- Bluetooth printing from Apple, Android and Windows devices
- Made for iPod, iPhone, iPad
-
Link-OS™ environment capable
-
Print Touch™ via NFC (Near Field Communication)
Validated Handheld Terminals, Smartphones, and Software
- Wireless connectivity was tested with the leading handheld
terminals to improve the integration of the complete solution with
the iMZ printers. If a product is not documented as being
interoperable there is no implication it does not work with the
printer.
- Honeywell: Dolphin 6000, Dolphin 6100, Dolphin 7800, Dolphin
99EX, Tecton
- Motorola: MC909x, MC75A, MC55, ET1
- Intermec: CK71
- Android: Google Nexus 7, Motorola ET1, Samsung Galaxy
Tablet
- Apple: iPod touch (5th and 4th generation), iPhone (5, 4S, 4),
iPad (3rd generation and 2)
- A list of Independent Software Vendor (ISV) software
applications that have been validated to work with the iMZ can be
found at zebra.com/validation.
Validated applications have gone through the Zebra
Validation Program to verify the interoperability of the
software applications with Zebra products.
Printer Specifications
Resolution: 203 dpi (8 dots/mm)
Memory: 128 MB Flash, 128 MB RAM

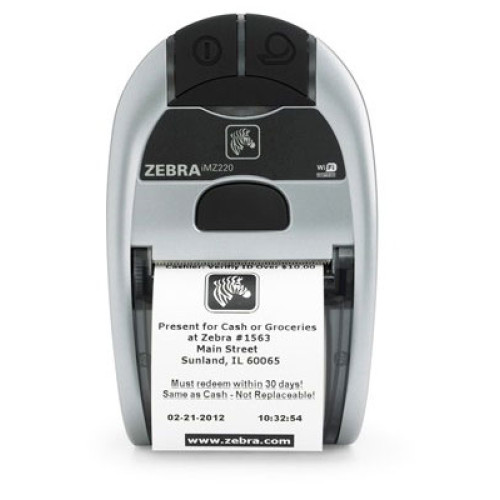

iMZ220 Print width: 1.9" (48.3 mm)
Print length: Maximum continuous
Print speed: 4ips (102 mm/s)
Options
- Bluetooth 2.1 connectivity
- 802.11 (a/b/g/n) connectivity
Programming Lanuages
- Core programming languages: CPCL and ZPL
Media Characteristics
Media width: 2.0" (+/-0.03"), 50.8 mm (+/-0.76 mm)
Max media thickness: 4 mil (0.1016 mm)
Max print width: 1.9" (48.3 mm)
Media roll ID: 0.4" (10.2 mm) to 0.75" (19 mm)
Max media roll OD: 1.88" / 47.8 mm
Media types: Direct-thermal receipt paper, or UV-coated media
Related Products
Accessories:
- Protective silicone case
- Durability-enhancing case (IP54 rating when using the
case)
- Shoulder strap
- iMZ™ Series 4-bay power station
- Vehicle adapter
Communication and Interface Capabilities:
ZebraNet 802.11 a/b/g/n radio with support for:
- WEP, TKIP, and AES encryption (802.1x)
- EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
- 802.11i (WPA2), 802.11d, 802.11h
- 802.11n (optional): Wi-Fi Certified
- USB 2.0
- Bluetooth 2.1 (includes Bluetooth support for iOS devices)
- Windows R compatibility: (CE NET, Pocket PC, Windows Mobile
2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra
Windows print driver and/or our Mobile SDK controls and other
applications.)
- Android 2.3, 4.0, 4.1
- iOS 6, iOS 5
- Dual radio 802.11 a/b/g/n & Bluetooth 3.0 radio
Operating Characteristics
Operating temperature:
14° F (-10° C) to 122° F (50° C)
Operating humidity: 10-90% non-condensing
Storage humidity: 10-90% non-condensing
Storage temperatures:
-4° F (-20° C) to 140° F (60° C)
Agency approvals:
FCC Part 15 and EN55022 Class B limits
FCC, ICS, and European Standards for Bluetooth and
802.11a/b/g/n
TUV and IEC 60950 standard for Safety
NOM
C-Tick
VCCI
S-Mark
PSE
CCC
MII Bluetooth SIG-registered
Made for iPod, iPhone, iPad certified
Wi-Fi certified
Physical Characteristics
Width: 3.18"/80.8 mm
Height: 5.34" (135.6 mm)
Depth: 2.26" (57.4 mm)
Weight: .70 lbs (.32 kg)
barcode Symbologies
Barcode Ratios:
1.5:1, 2:1, 2.5:1, 3:1, 3.5:1"
Linear barcodes:
Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, 2 and 5
digit add-on, Interleaved 2 of 5, UCC/EAN 128, UPC-A, UPC-E, 2 and
5 digit add-on"
2-Dimensional:
Aztec Code, Data Matrix, GS1/DataBar™, (RSS) family, MaxiCode,
MicroPDF417, PDF 417, QR Code, TLC 39"
Fonts and Graphics
Standard fonts: 25 bitmapped, 1 smooth-scalable (CG Triumvirate™
Bold Condensed)
Optional fonts: Downloadable bitmapped and scalable fonts
International character sets / codepages supported: USA, Germany,
France, Sweden, Spain, Norway, Italy, CP850, UK (Latin 9), Chinese
GB18030, BIG 5 (Traditional), Japanese and Korean supported in
16x16 and 24x24, Thai and others upon request
Supports user-defined fonts and graphics, including custom
logos
