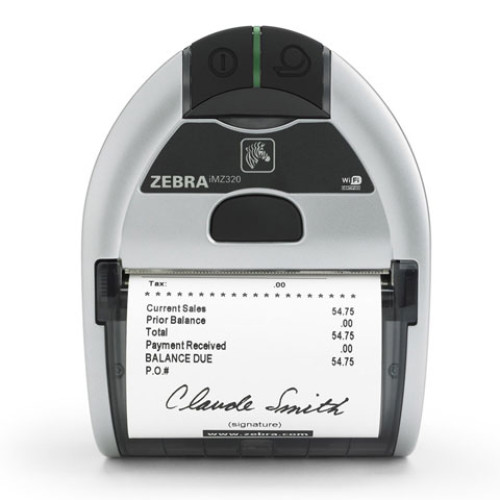

Zebra iMZ320 Portable Barcode Printer

Zebra iMZ320 Portable Barcode Printer

Simplify transactions and print three inch-wide receipts quickly and easily from the palm of your hand with Zebra's compact and easy-to-carry mobile printer the iMZ320 Supports 3-inch receipts.

STANDARD FEATURES

  • A receipt label mobile printer using direct thermal printing technology
  • Primary vertical applications center around retail, mobile workforce, transportation & logistics and hospitality
  • Compatible with the latest smartphone and tablet operating systems

More Standard Features
  • 203 dpi resolution (8 dots/mm)
  • Print Speed: up to 4 ips (102 mm/s)
  • CPCL and ZPL programming languages
  • Resident fixed and scalable fonts
  • 400 MHz 32-bit ARM processor with 128MB RAM
  • 128 Flash supports downloadable programs, receipt formats, fonts, and graphics
  • USB port
  • 1600 mAH Li-Ion battery
  • Optical out-of-media sensing using fixed center position sensor
  • Tear bar for easy receipt dispensing
  • Supports vertical and horizontal printing
  • Printer can be used in any orientation
  • Fixed media roll width
  • "Clamshell" design for easy loading
  • Management : Mirror, SNMP, Web server (with customizable HTML pages), Wavelink Avalanche®
  • Four LEDs as user interface indicators
  • 4' (1.2 m) drop to concrete (multiple times)
  • IP42 rated for dust and water resistance (IP54 with Durability Enhancing Case)
  • Label odometer
  • Bluetooth™ security modes 1-4
  • Bluetooth printing from Apple (iOS 5, iOS 6, iOS 7), Android and Windows devices
  • Made for iPod, iPhone, iPad
  • Link-OS™ environment capable
  • Print Touch™ via NFC (Near Field Communication)

Validated Handheld Terminals, Smartphones, and Software
  • Wireless connectivity was tested with the leading handheld terminals to improve the integration of the complete solution with the iMZ printers. If a product is not documented as being interoperable there is no implication it does not work with the printer.
  • Honeywell: Dolphin 6000, Dolphin 6100, Dolphin 7800, Dolphin 99EX, Tecton
  • Motorola: MC909x, MC75A, MC55, ET1
  • Intermec: CK71
  • Android: Google Nexus 7, Motorola ET1, Samsung Galaxy Tablet
  • Apple: iPod touch (5th and 4th generation), iPhone (5, 4S, 4), iPad (3rd generation and 2)
  • A list of Independent Software Vendor (ISV) software applications that have been validated to work with the iMZ can be found at zebra.com/validation. Validated applications have gone through the Zebra Validation Program to verify the interoperability of the software applications with Zebra products.

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Memory: 128 MB Flash, 128 MB RAM
iMZ320 Print width: 2.9" (73.7 mm)
Print length: Maximum continuous
Print speed: 4ips (102 mm/s)


Options
  • Bluetooth 2.1 connectivity
  • 802.11 (a/b/g/n) connectivity

Programming Lanuages
  • Core programming languages: CPCL and ZPL

Media Characteristics

Media width: 3.0" (+/-0.03"), 76.2 mm (+/-0.76 mm)
Max media thickness: 4 mil (0.1016 mm)
Max print width: 2.9" (73.7 mm)
Media roll ID: 0.4" (10.2 mm) to 0.75" (19 mm)
Max media roll OD: 1.88" / 47.8 mm
Media types: Direct-thermal receipt paper, or UV-coated media


Related Products

Accessories:

  • Protective silicone case
  • Durability-enhancing case (IP54 rating when using the case)
  • Shoulder strap
  • iMZ™ Series 4-bay power station
  • Vehicle adapter

Communication and Interface Capabilities:

ZebraNet 802.11 a/b/g/n radio with support for:

  • WEP, TKIP, and AES encryption (802.1x)
  • EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
  • 802.11i (WPA2), 802.11d, 802.11h"
  • 802.11n (optional): Wi-Fi Certified
  • USB 2.0
  • Bluetooth 2.1 (includes Bluetooth support for iOS devices)
  • Windows R compatibility: (CE NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows print driver and/or our Mobile SDK controls and other applications.)
  • Android
  • iOS
  • Dual radio 802.11 a/b/g/n & Bluetooth 3.0 radio

Operating Characteristics

Operating temperature: 14° F (-10° C) to 122° F (50° C)
Operating humidity: 10-90% non-condensing
Storage humidity: 10-90% non-condensing
Storage temperatures: -4° F (-20° C) to 140° F (60° C)

Agency approvals:
FCC Part 15 and EN55022 Class B limits
FCC, ICS, and European Standards for Bluetooth and 802.11a/b/g/n
TUV and IEC 60950 standard for Safety
NOM
C-Tick
VCCI
S-Mark
PSE
CCC
MII Bluetooth SIG-registered
Made for iPod, iPhone, iPad certified
Wi-Fi certified


Physical Characteristics

Width: 4.11"/104.4 mm
Height: 5.34" (135.6 mm)
Depth: 2.26" (57.4 mm)
Weight: .75 lbs (.34 kg)


barcode Symbologies

Barcode Ratios:
1.5:1, 2:1, 2.5:1, 3:1, 3.5:1"
Linear barcodes:
Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, 2 and 5 digit add-on, Interleaved 2 of 5, UCC/EAN 128, UPC-A, UPC-E, 2 and 5 digit add-on

2-Dimensional:
Aztec Code, Data Matrix, GS1/DataBar™, (RSS) family, MaxiCode, MicroPDF417, PDF 417, QR Code, TLC 39"


Fonts and Graphics

Standard fonts: 25 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed)
Optional fonts: Downloadable bitmapped and scalable fonts
International character sets / codepages supported: USA, Germany, France, Sweden, Spain, Norway, Italy, CP850, UK (Latin 9), Chinese GB18030, BIG 5 (Traditional), Japanese and Korean supported in 16x16 and 24x24, Thai and others upon request
Supports user-defined fonts and graphics, including custom logos
