Photo of Zebra KR-403
Zebra logo

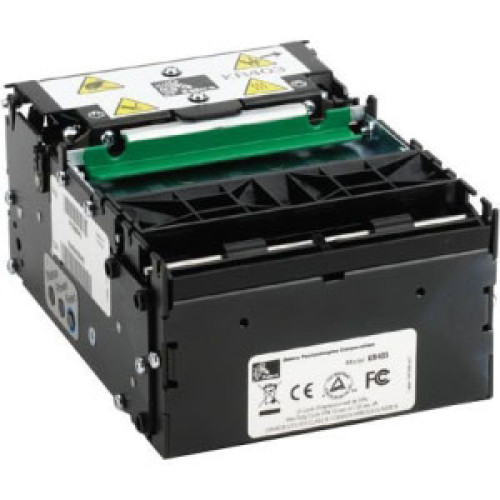

Zebra KR-403 Printer

Decrease costs and raise customer satisfaction with a receipt kiosk printer designed for frequent-use self-service environments. The KR-403 Prints high-quality, legible receipts.
Questions?
1-888-875-7170
We respond to every email
KR-403 Options
Part # DescriptionAvailabilityPriceOrder
P1009545-0-0119R KIOSK DT PRINTER KR403 Serial/USB MASSACHUSETTES
Ships Free in 3-5 Days
$644.91
P1009545 KR403, Kiosk Printer (Serial and USB) Ships Free Today $431.20
Retail $560
Save 23%
P1009545-3 KR403, KISOK PRINTER ETHERNET/USB Ships Free Today $469.70
Retail $610
Save 23%
P1009545-2 KIOSK RECEIPT PRINTER WITH SERIAL AND USB, EXPANDED MEMORY-65.5MB TOTAL (REQUIRES A PAPER GUIDE)
Ships Free in 3-5 Days
$508.20
Retail $660
Save 23%
P1009545-4 KR403, KIOSK PRINTER, UE, 64MB Check Availability Call for Details
P1009545-3-8J KR403, Ethernet PRINTER ESTEELAUDER Check Availability Call for Details

Zebra KR-403 Details

STANDARD FEATURES

  • Direct thermal printing
  • USB and RS-232 Serial connectivity, or USB and TCP-IP connectivity
  • Looping presenter with pull detector

More Standard Features

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Print width

Print length: 2.75" (70 mm) to 23.6" (600 mm)
Print speed: 6" (152 mm)/sec


Media Characteristics

Maximum roll diameter: 9.8" (250 mm)
Core diameter: 1" (25 mm)
Media thickness: 0.002" (0.054 mm) to 0.004" (.11 mm)
Media types: Roll or fanfold


Operating Characteristics

Operating temperature DT: Operating temperature: 14° F (-10° C) to 122° F (50° C)
Direct thermal Storage temperatures: 14° F (-10° C) to 122° F (50° C)
Operating humidity: 10-95% non-condensing R.H.
Electrical: 24 VDC, ± 5%, average 2 A when printing


Physical Characteristics

Width: 4.2" (107 mm)
Height: 2.7" (68 mm)
Depth: 5.7" (144 mm)
Weight: 2.4 lbs (1.1 kg)


Kiosk Characterstics

Max/Min Receipt Width: 3.3" (82.5 mm)/2.3" (58 mm)


Related Products

Communication and Interface Capabilities


Programming Languages

Core programming languages: ZPL


barcodes/Symbologies

Linear Code 128
Codabar
Code 11
Code 128 with subsets A/B/C
Code 39
Code 93
EAN-13
EAN-18
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
MSI
MSI-3
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UCC/EAN-128
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MacroPDF417
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics
