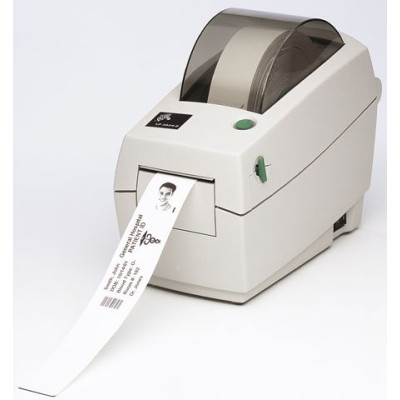

Photo of Zebra LP2824Z
Zebra logo

Zebra LP2824Z Printer

This product is discontinued and replaced by the

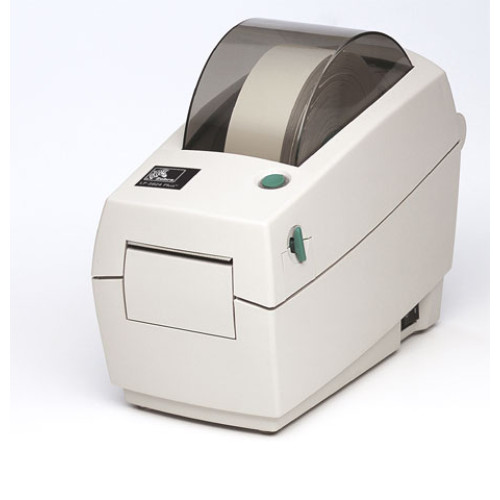

Zebra LP2824 Plus Zebra
LP2824 Plus
The ultra-compact direct thermal Zebra LP2824Z barcode printer, prints labels up to 2.2 inches wide. Its ease of use, including its clear media window allows for simple media loading and monitoring, making the Zebra LP2824Z a foolproof means to increased workplace efficiency. The LP2824Z integrates easily into a variety of printing applications, including retail point of sale, shelf labeling, product marking, inventory control and asset management, health care specimen labeling, patient tracking, and small office mailing, shipping and file labeling. With serial, parallel, and USB interfaces, plus network connection options, the Zebra LP2824Z meets a variety of connectivity needs.
LP2824Z Options
Part # DescriptionAvailabilityPriceOrder
282Z-21401-0001 LP2824Z, Direct thermal printing, 203 dpi, 2.25" max print width, Serial and Ethernet Interfaces, Dispenser, and US power cord. Cables sold separately. Check Availability Call for Details
282Z-21400-00GA LP2824Z, Direct thermal printing, 203 dpi, 2.25" max print width, Serial and Ethernet Interfaces, and US power cord. Cables sold separately. This is the TAA compliant version of printer (Part# 282Z-21400-0001) for government purchasers. Please call for more information. Check Availability Call for Details
282Z-21400-0001 LP2824Z, Direct thermal printing, 203 dpi, 2.25" max print width, Serial and Ethernet Interfaces, and US power cord. Cables sold separately. Check Availability Call for Details
282Z-21202-0041 This part is replaced by 282P-201212-000.
LP 2824-Z, Direct thermal printing, 203 dpi, 2.25" max print width, Parallel Interface, Cutter, Real-time clock, and US power cord. Cables sold separately.
See Replacement Call for Details
282Z-21201-0001 This part is replaced by 282P-201211-000.
LP2824Z, Direct thermal printing, 203 dpi, 2.25" max print width, Parallel Interface, Dispenser, and US power cord. Cables sold separately.
See Replacement Call for Details
282Z-21200-0001 This part is replaced by 282P-201210-000.
LP2824Z, Direct thermal printing, 203 dpi, 2.25" max print width, Parallel Interface, and US power cord. Cables sold separately.
See Replacement Call for Details
282Z-21102-0001 This part is replaced by 282P-201512-000.
LP2824Z, Direct thermal printing, 203 dpi, 2.25" max print width, Serial, USB, and Ethernet Interfaces, Cutter, and US power cord. Cables sold separately.
See Replacement Call for Details
282Z-21101-0001 This part is replaced by 282P-201111-000.
LP2824Z, Direct thermal printing, 203 dpi, 2.25" max print width, Serial and USB Interfaces, Dispenser, and US power cord. Cables sold separately.
See Replacement Call for Details
282Z-21100-0001 This part is replaced by 282P-201110-000.
LP2824Z, Direct thermal printing, 203 dpi, 2.25" max print width, Serial and USB Interfaces, and US power cord. Cables sold separately.
See Replacement Call for Details

Zebra LP2824Z Details



Printing Solutions for Business Improvement

INDUSTRY SOLUTIONS PRODUCTS HOW TO
BUY
DRIVERS & DOWNLOADS SERVICE & SUPPORT RESOURCE LIBRARY ABOUT
ZEBRA
FOR
PARTNERS


LP 2824-Z



Standard Features

  • Print method: Direct thermal (LP)
  • Construction: ABS double-walled casing
  • OpenACCESS™ design
  • 32 bit RISC processor
  • Resident scalable font
  • Head-up sensor

Printer Specifications

Resolution
203 dpi (8 dots/mm)
Memory
  • Standard: 8 MB SDRAM (4 MB available to user); 4 MB Flash (2.75 available to user)
  • Optional: 8 MB Flash with real time clock (12 MB total)
Print width
2.2" (56 mm)
Print length
39" (991 mm)
Print speed
4" (102 mm)/sec
Media sensors
Reflective
Transmissive

Media Characteristics

Maximum label and liner width
2.36" (59.9 mm)
1.44" (37 mm) with Media Adapter Guide
Minimum label and liner width
1.00" (25.4 mm)
0.585" (15 mm) with Media Adapter Guide
Maximum label and liner length
39" (991 mm)
Maximum label and liner length (optional)
N/A - no SDRAM memory option
Maximum roll diameter
5" (127 mm)
Core diameter
1.0" (25.4 mm) and 1.5" (38 mm)
Media thickness
0.003" (.075 mm) to 0.007" (0.18 mm)
Media types
roll-fed, fanfold, tag stock, continuous, die-cut, continuous receipt, linerless, black mark, notch, black bar, gap, optional linerless platen

Operating Characteristics

Operating temperature
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal
Storage temperatures
-40° F (-40° C) to 140° F (60° C)
Operating humidity
10-90% non-condensing R.H.
Storage humidity
5-95% non-condensing R.H.
Electrical
Auto-detectable (PFC compliant) 100-240 VAC, 50-60 Hz
Agency approvals
  • FCC
  • VCCI/PSE
  • C-TICK
  • UL
  • NOM
  • GOST-R
  • CSA
  • CE
  • CCC/SRRC
  • BSMI

Physical Characteristics

Width
3.6" (91 mm)
Height
6.8" (173 mm)
Depth
7.5" (191 mm)
Weight
2.7 lbs (1.2 kg)
Shipping weight
5.3 lbs (2.4 kg)
Orientation
Center

Related Products

Options
Cutter
Liner-free platen
Asian language support
Internal ZebraNet PrintServer II for Ethernet connectivity
Dispenser with label taken sensor
8 MB Flash memory with real time clock
Communication and Interface Capabilities
Serial RS-232 (DB9)
Parallel (Centronics)
USB
Optional ZebraNet PrintServer II - internal or external

Programming Languages

Core programming languages
ZPL II, ZPL

Bar codes/Symbologies

Linear
Code 11
Code 39
Code 93
Code 128
UPC-E
UPC-A
EAN-8
EAN-13
UPC-A and UPC-E with EAN 2 or 5 digit extensions
Plessey
Postnet
Standard 2-of-5
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Codabar
RSS-14 (limited, truncated, stacked)
2-dimensional
PDF417
MicroPDF417
Code 49
MaxiCode
Codablock
Data Matrix
QR Code
RSS
Fonts and Graphics
  • Standard Fonts: 16 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
  • Supports user-defined fonts and graphics--including custom logos
  • IBM Code Page 850 International Characters
