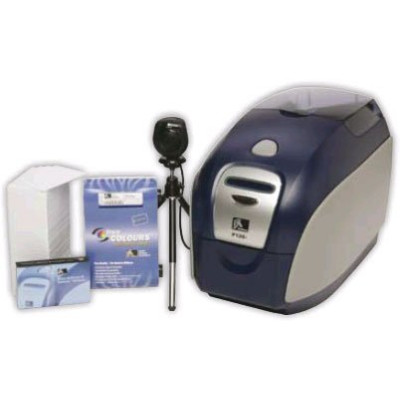

Photo of Zebra P120 i Card Printer System
Zebra logo

Zebra P120 i Card Printer System ID Card Printer System

The Zebra P120 i Card Printer System has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

With advanced design and solid durability, the Zebra P120 i Card Printer System makes dual-sided card printing more affordable than ever. Use the P120 i Card Printer System to improve security with clearly identifiable photo IDs or access control cards. Build customer loyalty with high-quality membership cards and even gift cards. The space-saving design, 300 dpi resolution and USB interface make the P120 i Card Printer System a revolution in versatility and cost effectiveness. Other features include Load-N-Go ribbon cartridge with an integrated cleaning roller, CardSense slot-loading single card feed, and color or monochrome printing on one or both sides. Save your business time and money with the Zebra P120 i Card Printer System.
P120 i Card Printer System Options
Part # DescriptionAvailabilityPriceOrder
P120I-BUNDLE P120 i Card Printer System, Bundle: Thermal transfer, 300 dpi, USB interface, 100 cards per hour, 16MB image memory, double-sided. Includes software, cards, ribbon, lanyards, slot punch and US power cord. Order cables separately. See accessories. See Replacement Call for Details
P120I-0M10A-IDB P120 i Card Printer System, Bundle, including P120i printer with Magnetic Stripe Encoder, Software, Webcam and Media Starter Kit See Replacement Call for Details
P120I-0000A-IDB P120i Card Printer System, QuikCard ID Solution, Bundle, including P120i double-sided card printer with CardStudio Standard edition software, Webcam and Media Starter Kit (200 30-mil PVC cards, one full-color YMCKOK ribbon cartridge). See Replacement Call for Details

Zebra P120 i Card Printer System Details

General Specifications
  • Integrated card feeder and flipper
  • Load-N-Go drop-in ribbon cartridge
  • 16-digit LCD display
  • Zebra printer drivers for Windows 2000 and Windows XP
  • One year printer warranty
  • One year (unlimited passes) printhead warranty
  • Color dye sublimation or monochrome thermal transfer printing
  • 30 seconds per card full-color single-sided (YMCKO)
  • 35 seconds per card full-color dual-sided (YMCKOK)
  • 300 dpi (11.8 dots/mm) print resolution
  • Code 39, Code 128 B & C with & without check digit
  • 2 of 5 & 2 of 5 Interleaved
  • UPC-A, EAN 8 & EAN 13
  • PDF-417 2D barcode and other symbologies can be printed via Windows drivers
Card Specifications
  • Types: PVC, PVC Composite
  • Card width/length: ISO CR-80-ISO 7810, 2.12" (54mm) x 3.38" (86mm)
  • Magnetic Stripe-ISO 7811
  • Smart Card-ISO 7816
  • Card thickness: 30 mil (.76mm)
  • Card feeder capacity: 100 cards (30 mil)
  • Card output hopper capacity: 45 cards (30 mil)
Ribbon Specifications
  • Load-N-Go ribbon cartridge with integrated card-cleaning roller
  • i Series ribbon information technology
  • YMCKO: 200 cards/cartridge
  • YMCKOK: 165 cards/cartridge
  • Monochrome: 1000 cards/cartridge in black, blue, or white
Communications Interface
  • USB 1.1 (cable included)
  • Width: 7.9 in (201mm)
  • Depth: 12.9 in (328mm)
  • Height: 8.5 in (216mm)
  • Weight: 9.5 lbs (4.3kg)
  • 110 ~ 240 Volts AC, 50 ~ 60 Hz (auto switching)
  • 16MB image memory standard
  • FCC Class B, CE, UL and CUL approved
  • Operating Temperature: 60°F to 86°F (15°C to 30°C)
  • Operating Humidity: 20% to 65% non-condensing
  • Storage Temperature: 23°F to 158°F (-5°C to 70°C)
  • Storage Humidity: 20% to 70% non-condensing
  • Ventilation: Free air
