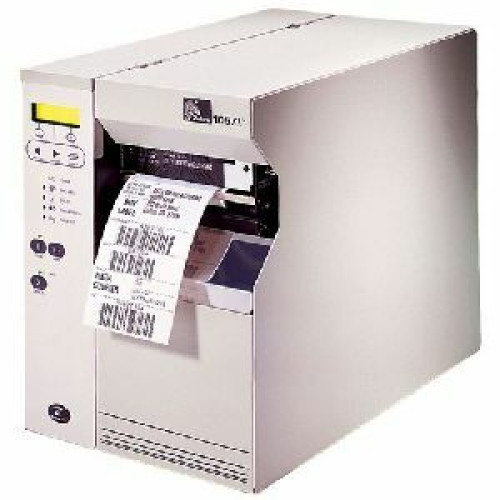

10500-2004-0000 - Zebra 105 SL Bar code Printer

The 105 SL is the newest member of Zebra's S Series Printers and it's also the fastest combining enhanced memory and processing capacity with rugged and reliable all-metal construction. Based on a proven platform with cutting-edge ZebraLink connectivity the 105 SL is the choice of experienced users.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
10500-2004-0000 105 SL, Thermal transfer Industrial Printer (203 dpi, Serial (RS-232) and Parallel interfaces, 4" max print width, 6MB DRAM, 4MB Flash, UK Power). Includes power supply. Cables sold separately. See accessories.
Information:   |  Download Zebra 105 SL driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra 105 SL service contract  |
Supplies:   |  Zebra 105 SL Label  |  Zebra 105 SL Ribbon  |  Zebra 105 SL Print head  |

10500-2004-0000 Details

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Auto Numbering
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 49
    • Code 93
    • Codabar
    • Codablock
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC
    • RSS
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • Plessey
    • POSTNET
    • PDF-417
    • Interleaved 2 of 5
    • Standard 2 of 5
    • LOGMARS
    • MSI
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • ISBT-128
    • Maxi Code
    • Micro PDF-417
    • Data Matrix
    • QR Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 105SL
  • Product Name: 105SL Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 11.2"
  • Depth: 19.5"

Interfaces/Ports

  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Package Contents:
    • 105SL Thermal Label Printer
    • User's CD
    • 105SL Thermal Label Printer
    • User's CD
  • Certifications & Standards:
    • UL 1950
    • CISPR 22 (Class B)
    • CSA 950
    • IEC 950
    • IEC 801-2
    • IEC 801-3
    • IEC 801-4
    • Canadian Doc. (Class A)
    • FCC Class A
    • CE
  • Additional Information:
    • All-metal reinforced box section enclosure
    • Fast 32-bit processing
    • Selectable print speeds up to 8ips
    • Zebra's E3 Printhead Energy Control
    • Ribbon width: 20mm to 114mm
    • Maximum Print Area:
    • Length: 106" (with standard memory)

Media Types & Handling

  • Maximum Label Width: 0.79"
  • Media Type:
    • Die-cut Label
    • Continuous Tape
    • Ticket
    • Tag
    • Fanfold
    • Roll Fed
  • Media Size:
    • 8" x Roll Paper
    • 3.20" x 984 ft
    • 3.20" x 1476 ft
  • Media Thickness: 12.01 mil

Memory

  • Standard Memory: 6 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage: 220 V AC

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL II
Part # Description Availability Price Order
G32433M Zebra 105SL, Replacement Printhead Kit, 300 dpi, Compatible Printer Model 105SL Ships Free Today $488.75
Retail $575
Save 15%
G32432-1M Zebra 105SL, Replacement Printhead Kit, 203 dpi, Compatible Printer Model 105SL Ships Free Today $442.00
Retail $520
Save 15%
05319BK11045 Zebra 5319 Performance Wax, 4.33" x 1476' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 6, Core Size: 1", Available as a single roll (05319BK11045-R) Ships Today $185.04

The Zebra 10500-2004-0000 is also known as ZEB-10500-2004-0000 or 1050020040000 .
