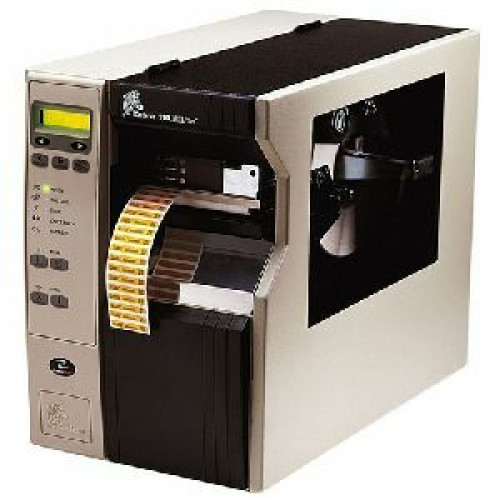

116-741-00001 - Zebra 110XiIII Plus Bar code Printer

With the new 110XiIII Plus, you can step up to the renowned, non-stop reliability of Zebra's Xi printer family without a big leap in price. This new model with full four-inch print width comes in a choice of 203, 300 or 600 dpi resolution to fit your printing application, be it 4 inches x 6 inches Compliance shipping labels, or tiny, sharply detailed labels for small components or products.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
116-741-00001 110XiIII Plus 600 DPI, Thermal transfer, 600 dpi, 4 ips, 3.2" print width, ZebraNet PrintServer II (10BASE-T), serial & USB 2.0 interfaces, 16MB SDRAM, & 4MB Flash. Includes ZebraLink & US power cord. Order cables separately, see accessories.

116-741-00001 Details

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 600 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x USB
    • 1 x RJ-45 10 Base-T Ethernet
    • 1 x RS-232C Serial
    • 1 x Ethernet
    • 1 x Serial
  • Maximum Print Width: 3.2"
  • Maximum Label Width: 4.5"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language: ZPL II
  • Input Voltage: 120 V AC
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 10.37" (263.4mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 10.37" (263.4mm) x x 19.5" (495mm)
  • Weight: 50 lb (22.68 kg)

Included Features

  • Included Features:
    • ZebraNet PrintServer II
    • Internal ZebraNet PrintServer II
    • Clear Media Side Door & Media Supply Spindle

Other

  • Package Contents:
    • 110XiIIIPlus Label Printer
    • User Guide
    • Drivers & Utility CD
    • ZebraNet Connectivity CD
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating
    • 5 to 85% Storage

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Agency Approvals

  • Agency Approvals:
    • FCC Class B EN55024: 1998 EN55022: 1998 Class B Argentina 92/98 Phase 3 Canadian ICES-003, Class B EN61000-3-2,3 W/amendment A12 Australia AS/NZS 3548; R.O.C. CNS 13438 IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme) Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
    • FCC Class B EN55024: 1998 EN55022: 1998 Class B Argentina 92/98 Phase 3 Canadian ICES-003, Class B EN61000-3-2,3 W/amendment A12 Australia AS/NZS 3548; R.O.C. CNS 13438IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme) Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited

The Zebra 116-741-00001 is also known as ZEB-11674100001 or 11674100001 .
