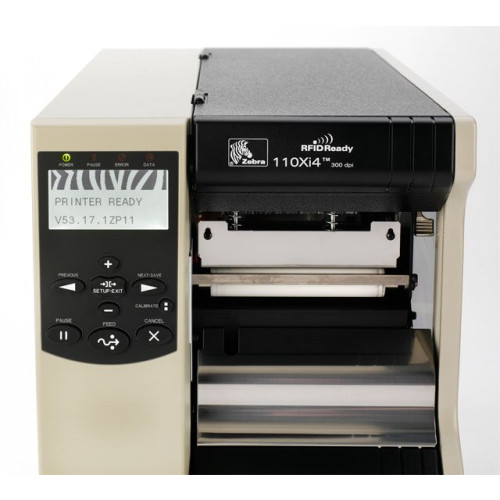

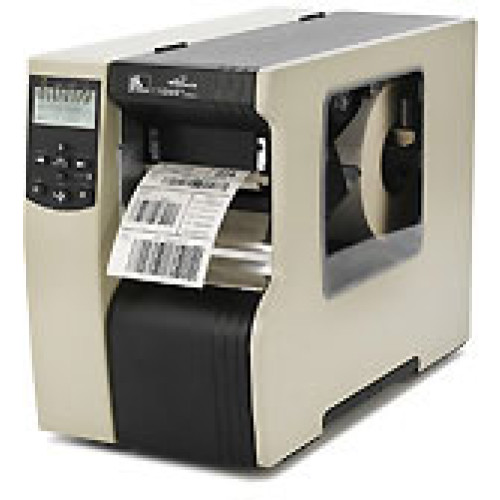

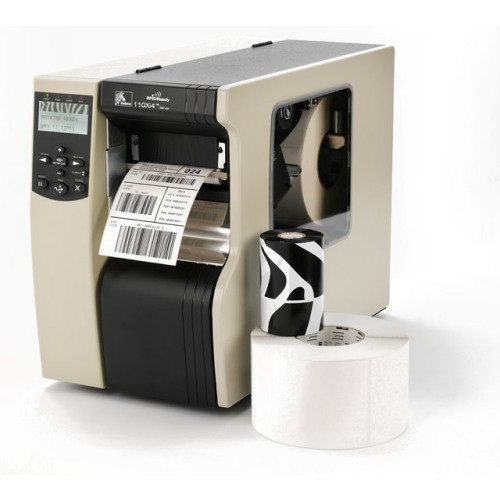

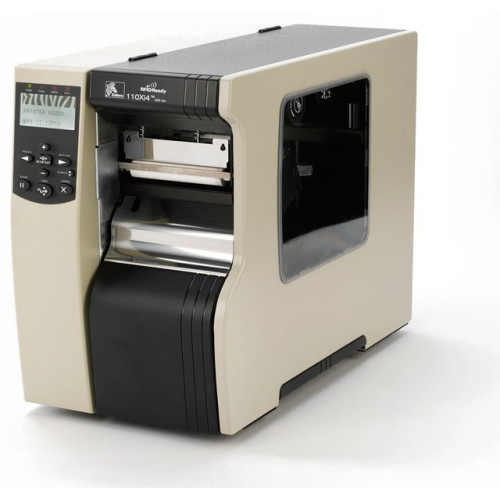

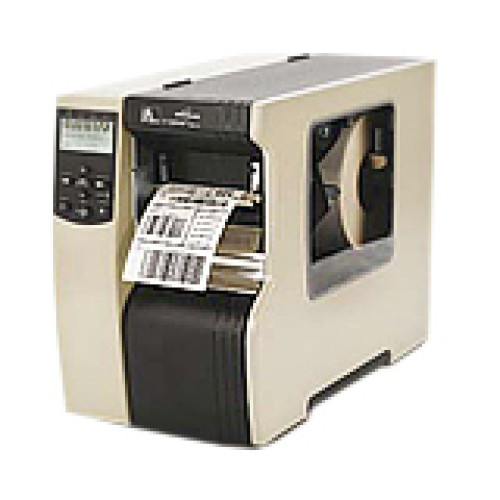

116-801-00001 - Zebra 110Xi4 Bar code Printer

"Zebra 110Xi4 series of built to last printers are legendary for their rugged durability, consistently outstanding print quality, fast print speed, long life, and unparalleled reliability in demanding applications. Print methods: Thermal transfer or direct thermal 32 bit 133 MHz RISC processor 8 MB Flash memory""""including 2.0 MB user-available non-volatile memory storage for downloadable objects Print speeds up to 14""/356 mm per second for increased batch and print/apply productivity LCD content and navigation customizable to user needs Large, easy-to-use LCD screen simplifies setup Flexible connectivity including simultaneous parallel/Ethernet Advanced ribbon- and media-low LCD/e-mail alerts On-board diagnostic tools and adjustments to ensure optimum print quality Internal real-time clock Auto calibration -printer calibrates when printer is turned on or when printhead is closed using approximately two labels Clear media side door - easy monitoring of supplies usage without opening the printer systems Thin film printhead with Element Energy Equalizer for superior print quality Serial RS-232 and bi-directional parallel ports""""with auto detect Internal ZebraNet 10/100 Print Server (Ethernet) Dual media sensors - transmissive and reflective, selectable through software or front panel"

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
116-801-00001 110Xi4, Direct Thermal/Thermal Transfer printing, RFID ready, 609 dpi, 4" print width, Ethernet/USB/RS-232/Parallel interfaces. Includes US power cord. Interface cables sold separately. Ships Free Today $4,063.00
Retail $4780
Save 15%
Information:   |  Download Zebra 110Xi4 driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra 110Xi4 service contract  |
Supplies:   |  Zebra 110Xi4 Label  |  Zebra 110Xi4 Ribbon  |  Zebra 110Xi4 Print head  |

116-801-00001 Details

Technical Information

  • Maximum Mono Print Speed: 14 in/s
  • Maximum Print Resolution: 600 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4"
  • Recommended Use: Label Print
  • Features:
    • RFID Ready
    • LCD Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Code 128-B
    • Code 128-A
    • Code 128-C
    • Code 128 UCC
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Codabar
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • Aztec Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 110Xi4
  • Product Name: 110Xi4 RFID Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 10.3"
  • Depth: 20.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • 110Xi4 RFID Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
    • 110Xi4 RFID Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
  • Additional Information:
    • RFID Ready
    • Auto calibration
    • Unicode Compliant
    • Intelligent printhead
    • 300 unique darkness settings
    • Improved head test for element out
    • Construction: 12-gauge steel frame
    • Single 32 bit 133 Mhz RISC processor
    • Multi-level Element Energy Equalizer
    • Automatic media/ribbon sensing capability
    • Clear Media Side Door & 3-inch Media Supply Spindle
    • Mirror feature allows user-defined printer configurations to be retrieved from the network

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Form
    • Roll Fed
    • Die-cut Label
    • Fanfold
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 110 V AC
Part # Description Availability Price Order
83259-R Zebra Z-Select 4000T, 2" x 1" Thermal transfer paper label. 2,260 labels/roll, single roll. Also available as a 8 roll case (Part# 83259). Ships Today $12.37
83259 Zebra Z-Select 4000T, 2" x 1" Thermal transfer paper label. 2,260 labels/roll, 8 roll case. Also available as a Single roll (Part# 83259-R). Ships Today $86.48
800274-605 Zebra Z-Select 4000T, 4" x 6" Thermal transfer paper label. 475 labels/roll, 12 roll case. Also available as a roll (Part# 800274-605-R). Ships Today $197.05
10000285 Zebra Z-Perform 2000T, 4" x 2" Thermal transfer paper label. 2,750 labels/roll, 4 roll case. Also available as a roll (Part# 10000285-R). Ships Today $65.90

The Zebra 116-801-00001 is also known as ZEB-11680100001 or 11680100001 .
