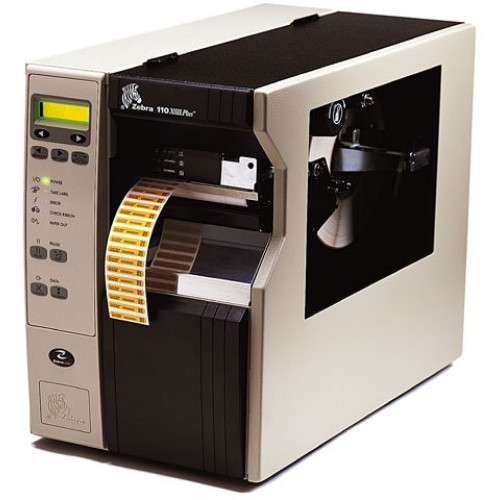

116-801-00011 - Zebra 110XiIII Plus Bar code Printer

With the new 110XiIII Plus, you can step up to the renowned, non-stop reliability of Zebra's Xi printer family without a big leap in price. This new model with full four-inch print width comes in a choice of 203, 300 or 600 dpi resolution to fit your printing application, be it 4 inches x 6 inches Compliance shipping labels, or tiny, sharply detailed labels for small components or products.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
116-801-00011 110XiIIIPlus RFID-Ready, RFID Ready Printer (600 dpi, Serial, Parallel, USB, Internal ZebraNet 10/100 PrintServer, 120 VAC Cord-NA, 64MB Flash, ZPL II, XML, Clear Media Side Door and 3 inch Media Supply Spindle)

116-801-00011 Details

Technical Information

  • Maximum Mono Print Speed: 14 in/s
  • Maximum Print Resolution: 600 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4"
  • Recommended Use: Label Print
  • Features: RFID Ready
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Codabar
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • Aztec Code
    • RSS
    • GS1 DataBar
    • UCC
    • D2 of 5

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 110Xi4

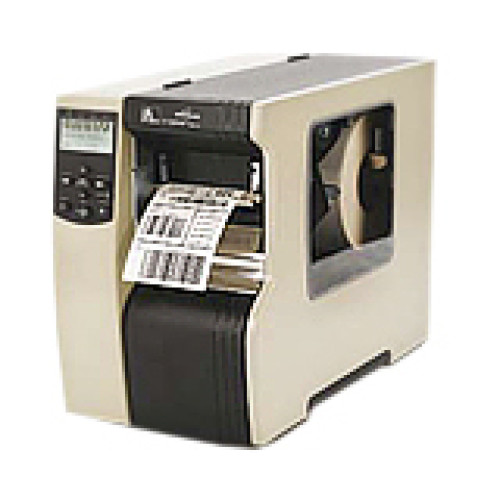

  • Product Name: 110Xi4 RFID Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 10.3"
  • Depth: 20.4"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
    • Fanfold
    • Roll Fed
  • Media Thickness: 12 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • 110Xi4 Label Printer
    • User Guide
    • Software CD
    • North American Edition 120 VAC Power Cord
    • 110Xi4 Label Printer
    • User Guide
    • Software CD
    • North American Edition 120 VAC Power Cord

Fonts & Emulation

  • Language Emulation:
    • ZPL II
    • XML

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 110 V AC

Display & Graphics

  • Display Screen Type: LCD

The Zebra 116-801-00011 is also known as ZEB-11680100011 or 11680100011 .
