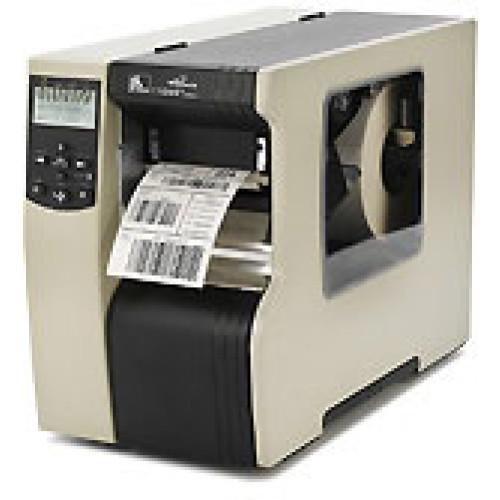

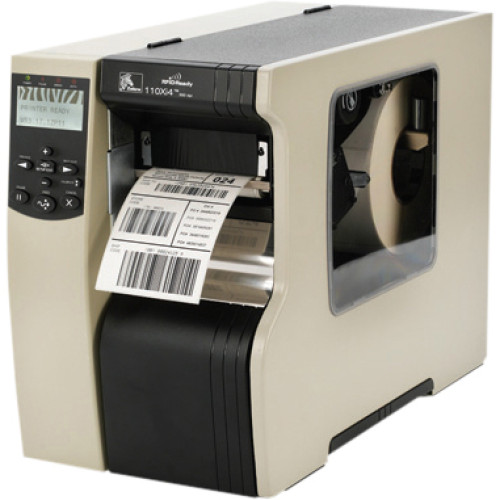

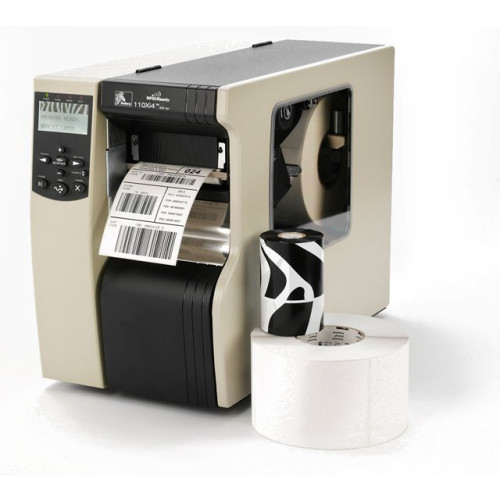

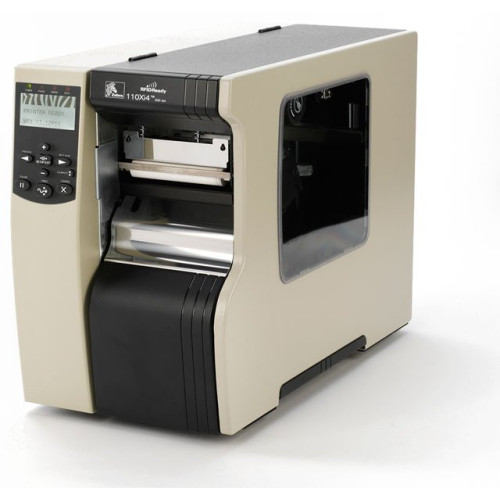

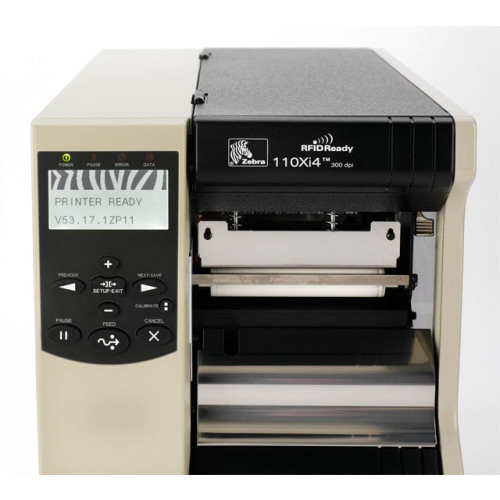

116-804-00001 - Zebra 110Xi4 Bar code Printer

Zebra"s built-to-last 110Xi4 series printers are legendary for their rugged durability, consistently outstanding print quality, fast print speed, long life, and unparalleled reliability in demanding applications.

Part # Description Availability Price Order
116-804-00001 110Xi4, Thermal transfer Industrial Printer (600 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 4" max print width, 16MB SDRAM, Clear Media Side Door & 3" Media Spindle, UK/European Power). Includes power supply. Cables sold separately. See accessories.
Information:   |  Download Zebra 110Xi4 driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra 110Xi4 service contract  |
Supplies:   |  Zebra 110Xi4 Label  |  Zebra 110Xi4 Ribbon  |  Zebra 110Xi4 Print head  |

116-804-00001 Details

Technical Information

  • Maximum Mono Print Speed: 14 in/s
  • Maximum Print Resolution: 600 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4"
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Clear Media Side Door
    • Media Supply Spindle
    • Mirror Printing
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Codabar
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF-417
    • Aztec Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 110Xi4
  • Product Name: 110Xi4 Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 10.3"
  • Depth: 20.4"
  • Form Factor: Desktop
  • Weight (Approximate): 50 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Label
    • Roll Fed
    • Fanfold
    • Die-cut Label
  • Media Thickness: 12 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Power Description

  • Power Source: AC Supply
Part # Description Availability Price Order
Z1A2-XI41-3C0 Zebra Service Contract - 3 year, Essential, Purchased within 30 days of Device, Second Business Day On-site (select counties only), 110Xi4, 140Xi4, 170Xi4, 3 Years, Comprehensive Ships Free Today $1,706.99

The Zebra 116-804-00001 is also known as ZEB-11680400001 or 11680400001 .
