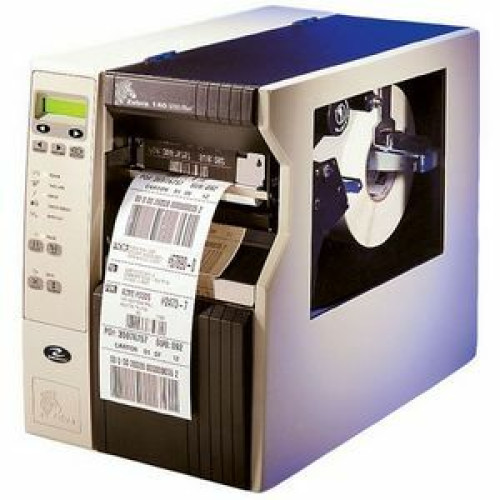

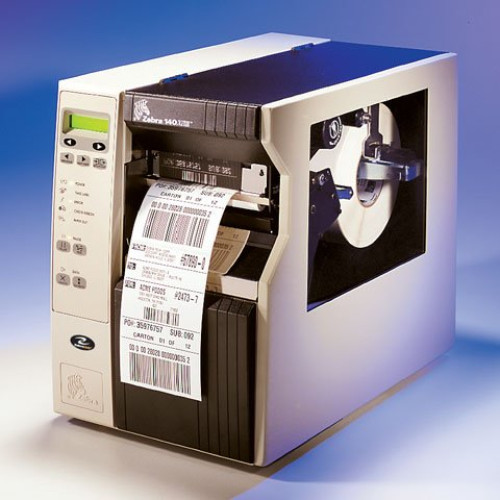

140-701-00200 - Zebra 140XiIII Plus Bar code Printer

The 140XiIII Plus is the fastest printer in Zebra's Xi Series printing at up to 12 inches per second (ips). With such powerful performance and steel construction it is the ideal choice for high-volume mission-critical applications with 24-hour duty cycles. The 140XiIII Plus is also well-suited for applications in which labels are required quickly either on demand or in batches.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
140-701-00200 140XiIII Plus, Thermal transfer Printing, 203 dpi, 5' Print width, USB/RS-232/Parallel Interfaces. Includes US power supply. Interface cables sold separately: USB (Part# 13172), Parallel (Part# 02798), RS-232 (Part# 52184).

140-701-00200 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 12 ips
  • Interfaces:
    • 1 x Parallel
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 5.04"
  • Maximum Label Width: 5.63"
  • Maximum Label Length: 39"
  • Printer Language: ZPL II
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Media Sensor:
    • Reflective
    • Transmissive
  • Input Voltage: 120 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 11.15" (283.21mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 11.15" (283.21mm) x x 19.5" (495mm)
  • Weight: 55 lb (24.95 kg)

Included Features

  • Included Features:
    • Rewinder
    • Clear Media Slide Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • CCC
    • BSMI
    • Class B
    • FCC Class B
    • R.O.C. CNS 13438
    • Canadian ICES-003
    • EN55022: 1998 Class B
    • Australia AS/NZS 3548
    • Argentina 92/98 Phase 3
    • EN55024: 1998; EN61000-3-2, 3 w/amendment A12
    • IEC 950/EN60950: 1992 w/amendments 1 through 4 (CB Scheme)
    • Bi-National UL 60950 Third Edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • 140Xiii Plus Label Printer
    • Xi IIIPlus User's Guide
    • Ztools Utilities
    • ZPL II Programming Guide
    • BAR-ONE Lite/Platinum demo
    • JefForm Central ERP Solution
    • ZebraNet WebView and Alert Utilities
    • Adobe Acrobat
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 5°C (41°F) to 40°C (104°F) Operating - Thermal Transfer
    • 0°C (32°F) to 40°C (104°F) Operating - Direct Thermal
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited

The Zebra 140-701-00200 is also known as ZEB-140XIIII+REW or 14070100200 .
