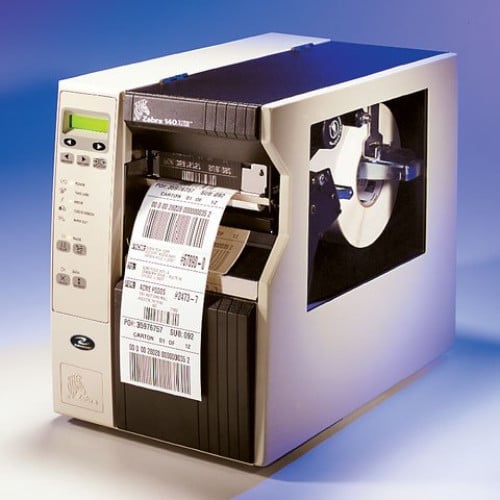

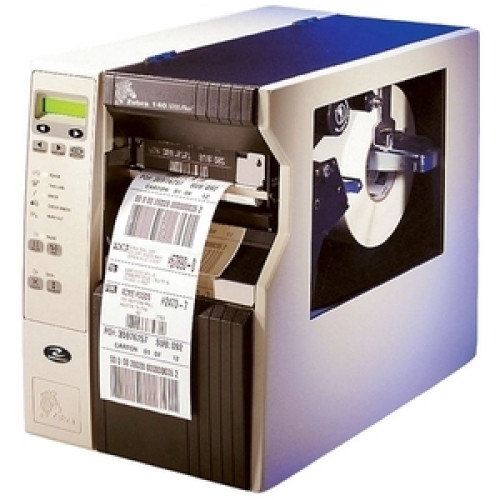

140-741-00300 - Zebra 140XiIII Plus Bar code Printer

The 140XiIII Plus is the fastest printer in Zebra's Xi Series printing at up to 12 inches per second (ips). With such powerful performance and steel construction it is the ideal choice for high-volume mission-critical applications with 24-hour duty cycles. The 140XiIII Plus is also well-suited for applications in which labels are required quickly either on demand or in batches.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
140-741-00300 140XiIII Plus, Thermal transfer Printing, 203 dpi, 5' Print width, Ethernet/USB/RS-232 Interfaces, Cutter, Rewinder. Includes US power supply. Interface cables sold separately: USB (Part# 13172), Parallel (Part# 02798), RS-232 (Part# 52184).

140-741-00300 Details

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 12 ips
  • Interfaces:
    • 1 x 10 Base-T Ethernet
    • 1 x Serial
    • 1 x USB
    • 1 x Ethernet
  • Maximum Print Width: 5.04"
  • Maximum Label Width: 5.51"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language:
    • ZPL
    • ZPL II
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Input Voltage: 120 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 11.15" (283.21mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 11.15" (283.21mm) x x 19.5" (495mm)
  • Weight: 55 lb (24.95 kg)

Included Features

  • Included Features:
    • Cutter
    • Rewinder
    • Internal ZebraNet PrintServer II
    • Clear Media Side Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • BSMI
    • CCC
    • CE
    • C-Tick
    • cUL
    • EN55022 Class B
    • EN55024
    • EN6100-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1 / EN60950
    • NOM
    • S Mark
    • VCCI
    • ZIK
    • R.O.C. CNS 13438
    • Australia AS/NZS 3548
    • Argentina 92/98 Phase 3
    • Bi-National UL 60950 Third Edition/CSA /CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • 140XiIIIPlus Label Printer
    • User Guide
    • Accessories CD
    • ZebraNet Connectivity CD for Print Server II
    • North American Edition 120 VAC Cord
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

The Zebra 140-741-00300 is also known as ZEB-140-741-00300 or 14074100300 .
