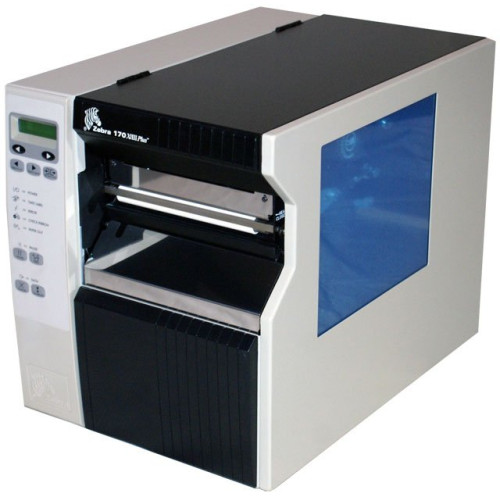

170-701-00000 - Zebra 170XiIII Plus Bar code Printer

The industrial-strength 170XiIII Plus has a 12-gauge steel frame 300dpi print resolution and the ability to print labels up to 6.6 inches wide at eight inches per second (ips). Tough compliance labeling applications are no match for the 170XiIII Plus since it can easily print large numbers of AIAG ODETTE UCC-EAN-128 and other compliance labels on demand or in batches.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
170-701-00000 170XiIII Plus, Thermal transfer Industrial Printer (300 dpi, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

170-701-00000 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 12 ips
  • Interfaces:
    • 1 x USB
    • 1 x Parallel
    • 1 x Serial
  • Maximum Print Width: 6.6"
  • Maximum Label Width: 6.6"
  • Maximum Label Length: 39"
  • Printer Language: ZPL II
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Media Sensor:
    • Reflective
    • Transmissive
  • Input Voltage: 120 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions: 15.5" (393.7mm) x 13.15" (334.01mm) x 19.5" (495.3mm)
  • Weight: 67 lb (30.39 kg)

Included Features

  • Included Features:
    • Clear Media Slide Door & Media Hanger
    • Clear Media Side Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • Class B
    • FCC Class B
    • EN55024: 1998
    • R.O.C. CNS 13438
    • Canadian ICES-003
    • Australia AS/NZS 3548
    • EN55022: 1998 Class B
    • Argentina 92/98 Phase 3
    • EN61000-3-2,3 W/amendment A12
    • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • 170Xiii Plus Label Printer
    • Xi IIIPlus User's Guide
    • Ztools Utilities
    • ZPL II Programming Guide
    • BAR-ONE Lite/Platinum demo
    • JefForm Central ERP Solution
    • ZebraNet WebView and Alert Utilities
    • Adobe Acrobat
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 5°C (41°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity:
    • 20 to 85% Operating
    • 5 to 85% Storage

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited
Part # Description Availability Price Order
P1004237 Zebra 170Xi4, Replacement Printhead Kit, 300 dpi, Compatible Printer Model 170Xi4 Ships Free Today $701.25
Retail $825
Save 15%
P1004236 Zebra 170Xi4, Replacement Printhead Kit, 203 dpi, Compatible Printer Model 170Xi4 Ships Free Today $616.25
Retail $725
Save 15%
05319BK11045 Zebra 5319 Performance Wax, 4.33" x 1476' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 6, Core Size: 1", Available as a single roll (05319BK11045-R) Ships Today $185.04

The Zebra 170-701-00000 is also known as ZEB-170XIIII+ or 17070100000 .
