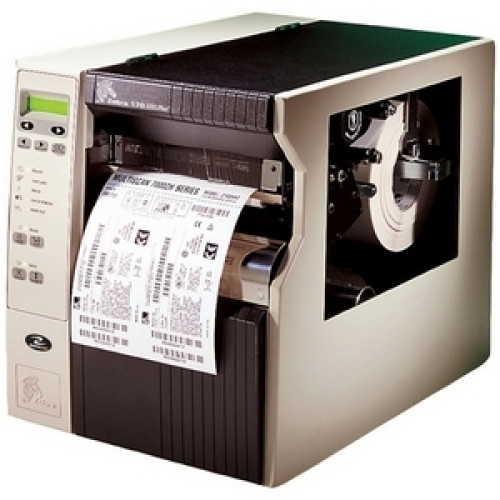

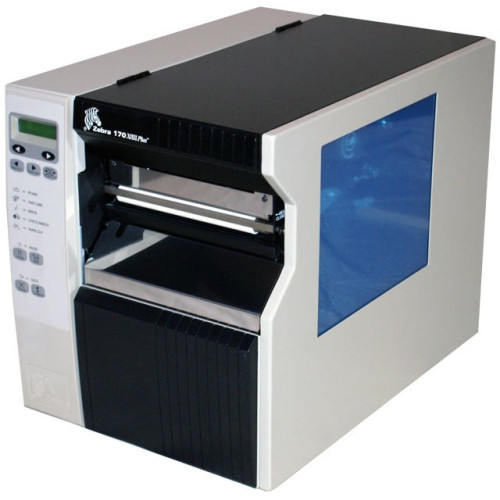

170-741-00200 - Zebra 170XiIII Plus Bar code Printer

The industrial-strength 170XiIII Plus has a 12-gauge steel frame 300dpi print resolution and the ability to print labels up to 6.6 inches wide at eight inches per second (ips). Tough compliance labeling applications are no match for the 170XiIII Plus since it can easily print large numbers of AIAG ODETTE UCC-EAN-128 and other compliance labels on demand or in batches.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
170-741-00200 170XiIII Plus, Thermal transfer Industrial Printer (300 dpi, Ethernet, USB, Serial (RS-232), and Parallel interfaces, 6.6" max print width, 16MB SDRAM, Rewinder, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

170-741-00200 Details

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Features: Rewinder
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 93
    • Code 39
    • EAN-8
    • EAN-13
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • RSS
    • TLC 39
    • Micro PDF
    • Aztec Code

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 170XiIIIPlus
  • Product Name: 170XiIIIPlus Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 13.2"
  • Depth: 19.5"

Other

  • Platform Supported: PC
  • Package Contents:
    • 170Xiii Plus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord
    • 170Xiii Plus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord
  • Certifications & Standards:
    • Class B
    • FCC Class B
    • EN55024: 1998
    • R.O.C. CNS 13438
    • Canadian ICES-003
    • Australia AS/NZS 3548
    • EN55022: 1998 Class B
    • Argentina 92/98 Phase 3
    • EN61000-3-2,3 W/amendment A12
    • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
  • Additional Information:
    • Temperatures:
    • Operating temperature 41° F to 104° F Thermal transfer
    • Operating temperature 32° F to 104° F Direct thermal
    • Media Sensors:
    • Reflective
    • Transmissive

Media Types & Handling

  • Maximum Label Width: 6.60"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Black Mark
  • Media Thickness: 120 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL II
Part # Description Availability Price Order
P1004237 Zebra 170Xi4, Replacement Printhead Kit, 300 dpi, Compatible Printer Model 170Xi4 Ships Free Today $701.25
Retail $825
Save 15%
P1004236 Zebra 170Xi4, Replacement Printhead Kit, 203 dpi, Compatible Printer Model 170Xi4 Ships Free Today $616.25
Retail $725
Save 15%
05319BK11045 Zebra 5319 Performance Wax, 4.33" x 1476' Black Wax Ribbon, Compatible with Industrial printers and Paper Labels, Rolls per Case: 6, Core Size: 1", Available as a single roll (05319BK11045-R) Ships Today $185.04

The Zebra 170-741-00200 is also known as ZEB-17074100200 or 17074100200 .
