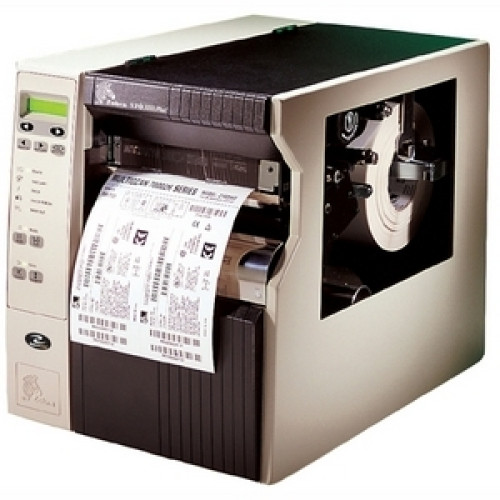

172-7A1-00000 - Zebra 170XiIII Plus Bar code Printer

The industrial-strength 170XiIII Plus has a 12-gauge steel frame 300dpi print resolution and the ability to print labels up to 6.6 inches wide at eight inches per second (ips). Tough compliance labeling applications are no match for the 170XiIII Plus since it can easily print large numbers of AIAG ODETTE UCC-EAN-128 and other compliance labels on demand or in batches.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
172-7A1-00000 170XiIII Plus, Thermal transfer printing, RFID ready, 203 dpi, 6.6" print width, Ethernet/USB/RS-232/Parallel interfaces. Includes US power cord. Interface cables sold separately.

172-7A1-00000 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 12 ips
  • Interfaces:
    • 1 x Fast Ethernet
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 6.6"
  • Maximum Label Width: 7.1"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: ZPL II
  • Input Voltage: 120 V AC
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 13.15" (334.01mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 13.15" (334.01mm) x x 19.5" (495mm)
  • Weight: 67 lb (30.39 kg)

Included Features

  • Included Features:
    • Clear Media Side Door & Media Hanger
    • Internal ZebraNet 10/100 Print Server

Agency Approvals

  • Agency Approvals:
    • BSMI
    • CCC
    • CE
    • C-Tick
    • cUL
    • EN55022 Class B
    • EN55024
    • EN6100-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1
    • EN60950
    • NOM
    • S Mark
    • VCCI
    • ZIK

Other

  • Package Contents:
    • 170XiIIIPlus Label Printer
    • North American Edition Cord
    • User's Guide
    • Ztools Utilities
    • ZPL II Programming Guide
    • Zebra Designer
    • Zebra Designer Pro
    • Universal Windows Printer Driver
    • ZebraNet WebView and Alert Utilities
    • Adobe Acrobat
    • Direct Zebra Web Access
    • ZebraNet Connectivity CD

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
P1004237 Zebra 170Xi4, Replacement Printhead Kit, 300 dpi, Compatible Printer Model 170Xi4 Ships Free Today $701.25
Retail $825
Save 15%
P1004236 Zebra 170Xi4, Replacement Printhead Kit, 203 dpi, Compatible Printer Model 170Xi4 Ships Free Today $616.25
Retail $725
Save 15%
05319BK11045 Zebra 5319 Performance Wax, 4.33" x 1476' Black Wax Ribbon, Compatible with Industrial printers and Paper labels, rolls/case: 6, Core Size: 1", Available as a single roll (05319BK11045-R) Ships Today $185.04

The Zebra 172-7A1-00000 is also known as ZEB-1727A100000 or 1727A100000 .
