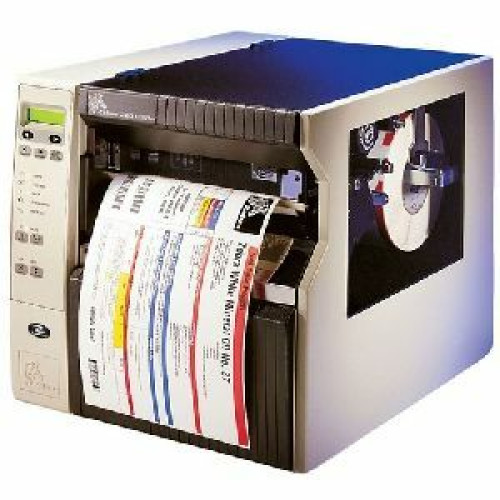

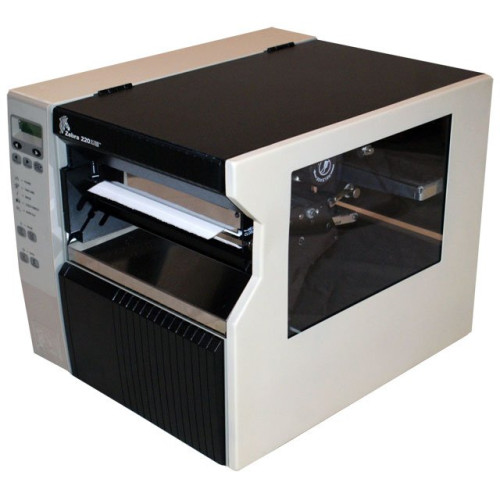

220-741-00100 - Zebra 220XiIII Plus Bar code Printer

The 220XiIII Plus quickly prints labels up to 8.5 inches wide at 10 inches per second (ips). It is ideal for wide label applications such as printing chemical drum labels primary metal standard labels automotive industry labels banner-sized labels and pallet and container shipping labels.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
220-741-00100 220XiIII Plus, Thermal transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Cutter, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

220-741-00100 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 10 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Ethernet
    • 1 x USB
  • Maximum Print Width: 8.5"
  • Maximum Label Width: 8.8"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: ZPL II
  • Input Voltage: 120 V AC
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 15.65" (397.51mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 15.65" (397.51mm) x x 19.5" (495mm)
  • Weight: 72 lb (32.66 kg)

Included Features

  • Included Features:
    • Cutter
    • Clear Media Side Door & Media Hanger
    • Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • CCC
    • CE
    • C-Tick
    • cUL
    • EN55022 Class B
    • EN55024
    • EN61000-3-2,3
    • FCC Class B
    • GOST-R
    • ICES-003 Class B
    • IEC 60950-1
    • EN60950
    • NOM
    • S Mark
    • VCCI
    • ZIK

Other

  • Package Contents:
    • 220XiIIIPlus Label Printer
    • North American Edition Cord
    • User's Guide
    • Ztools Utilities
    • ZPL II Programming Guide
    • Zebra Designer
    • Zebra Designer Pro
    • Universal Windows Printer Driver
    • ZebraNet WebView and Alert Utilities
    • Adobe Acrobat
    • Direct Zebra Web Access
    • ZebraNet Connectivity CD

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

The Zebra 220-741-00100 is also known as ZEB-22074100100 or 22074100100 .
