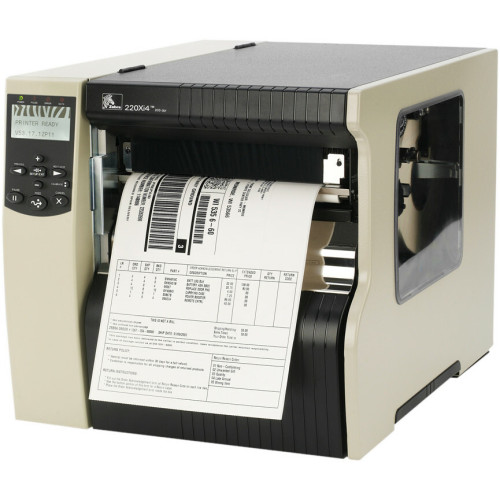

220-801-00000-GA - Zebra 220Xi4 Bar code Printer

The Zebra 220Xi4 is designed to produce large labels up to 8.5" (216 mm) wide at 10" (254 mm) per second at 203 dpi and 6" per second at 300 dpi (152 mm) resolution. The 220Xi4 is ideal for industrial applications, including chemical drum (HAZMAT) identification labels, pallet/container shipping labels and product identification labels for large rolls of paper or textiles.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
220-801-00000-GA 220Xi4, Thermal transfer Industrial Printer (203 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories. This is the TAA compliant version of this product for government purchasers. Please Call for more information.
Ships Free in 3-5 Days
Call for Details
Information:   |  Download Zebra 220Xi4 driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra 220Xi4 service contract  |
Supplies:   |  Zebra 220Xi4 Label  |  Zebra 220Xi4 Ribbon  |  Zebra 220Xi4 Print head  |

220-801-00000-GA Details

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 8.50"
  • Recommended Use: Label Print
  • Features: LCD Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Code 128-B
    • Code 128-A
    • Code 128-C
    • Code 128 UCC
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • Codabar
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • Aztec Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: Xi
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: 220Xi4
  • Product Name: 220Xi4 Thermal Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 15.8"
  • Depth: 20.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 8.80"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Form
    • Roll Fed
    • Die-cut Label
    • Fanfold
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 1"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 3.20"

Other

  • Platform Supported: PC
  • Package Contents:
    • 220Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
    • 220Xi4 Thermal Label Printer
    • North American Edition Power Cord
    • Xi4 User's Guid
    • ZebraNet Connectivity CD
  • Certifications & Standards: TAA

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage: 110 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Part # Description Availability Price Order
83259-R Zebra Z-Select 4000T, 2" x 1" Thermal transfer paper label. 2,260 labels/roll, single roll. Also available as a 8 roll case (Part# 83259). Ships Today $16.43
800274-605-R Zebra Z-Select 4000T, 4" x 6" Thermal transfer paper label. 475 labels/roll, single roll. Also available as a case (Part# 800274-605). Ships Today $19.77
10011688-R-COMPATIBLE AirTrack Label, 3" x 1" Thermal transfer kimdura polypropylene label. Not perforated. 4,350 labels/roll, 4 roll case.Use ribbon 03200BK08045 for best results. Also available as a case (Part# 10011688-COMPATIBLE) (3010BOPP-NP-R).
Ships in 7+ Days
$27.88
10000285-R Zebra Z-Perform 2000T, 4" x 2" Thermal transfer paper label. 2,750 labels/roll, single roll. Also available as a case (Part# 10000285). Ships Today $19.80
P1004239 Zebra 220Xi4, Replacement printhead, 305 dpi. Ships Free Today $850.00
Retail $1000
Save 15%
P1004238 Zebra 220Xi4, Replacement Printhead Kit, 203 dpi, Compatible Printer Model 220Xi4 Ships Free Today $807.50
Retail $950
Save 15%
05319GS11007-R Zebra 5319 Performance Wax, 4.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper Labels, Rolls per Case: 1, Core Size: 0.5", Priced per roll. Available as a case(05319GS11007) Ships Today $13.70
05319GS06407-R Zebra 5319 Performance Wax, 2.5" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper Labels, Rolls per Case: 1, Core Size: 0.5", Priced per roll. Available as a case(05319GS06407) Ships Today $12.16
05319BK11045 Zebra 5319 Performance Wax, 4.33" x 1476' Black Wax Ribbon, Compatible with Industrial printers and Paper Labels, Rolls per Case: 6, Core Size: 1", Available as a single roll (05319BK11045-R) Ships Today $185.04
Z1A2-XI42-3C0 Zebra Service Contract - 3 year, Essential, Purchased within 30 days of Device, Second Business Day On-site (select counties only), 220Xi4, 3 Years, Comprehensive
Ships Free in 3-5 Days
$1,622.66
Retail $2110
Save 23%

The Zebra 220-801-00000-GA is also known as 220-801-00000-GA or 22080100000GA .
