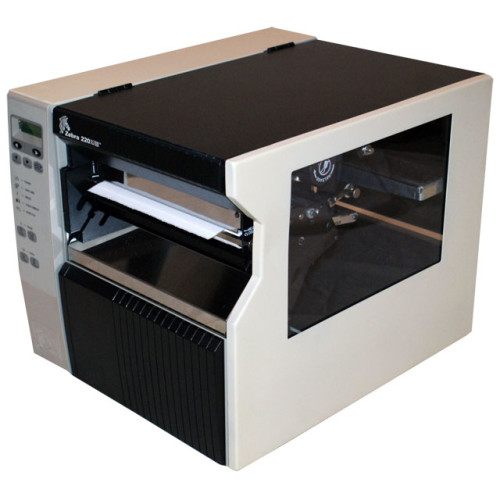

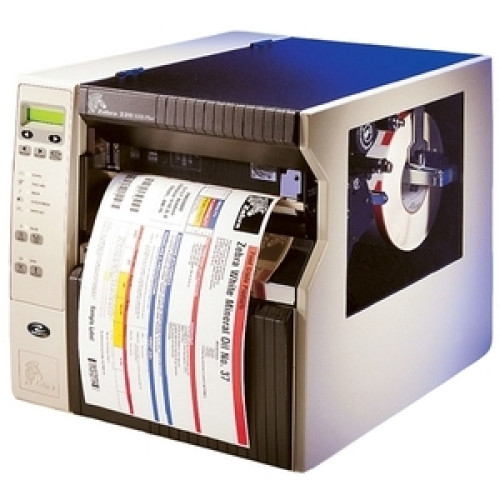

223-701-00000 - Zebra 220XiIII Plus Bar code Printer

The 220XiIII Plus quickly prints labels up to 8.5 inches wide at 10 inches per second (ips). It is ideal for wide label applications such as printing chemical drum labels primary metal standard labels automotive industry labels banner-sized labels and pallet and container shipping labels.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
223-701-00000 220XiIII Plus, Thermal transfer Industrial Printer (300 dpi, USB, Parallel, and Serial (RS-232) interfaces, 8.5" max print width, 16MB SDRAM, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.

223-701-00000 Details

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x RS-232 Serial
    • 1 x Parallel
    • 1 x USB
    • 1 x Serial
  • Maximum Print Width: 8.5"
  • Maximum Label Width: 8.8"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language: ZPL II
  • Input Voltage: 120 V AC
  • RAM Memory: 16MB
  • Input Voltage Range: 90 to 264 V AC
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 15.65" (397.51mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 15.65" (397.51mm) x x 19.5" (495mm)
  • Weight: 72 lb (32.66 kg)

Included Features

  • Included Features: Clear Media Side Door & Media Hanger

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • EN55024: 1998
    • R.O.C. CNS 13438
    • Australia AS/NZS 3548
    • EN55022: 1998 Class B
    • Argentina 92/98 Phase 3
    • Canadian ICES-003, Class B
    • EN61000-3-2,3 W/amendment A12
    • IEC 950/EN60950: 1992 W/amendments 1 thru 4 (CB Scheme)
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

Other

  • Package Contents:
    • Zebra 220XiIIIPlus Label Printer
    • User's Guide
    • Utilities & Driver's CD
    • 220XiIIIPlus Label Printer
    • Xi IIIPlus User's Guide
    • Utility & Driver CD
    • ZebraNet Connectivity CD
    • North American Edition Power Cord

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating
    • 5 to 85% Storage

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited

The Zebra 223-701-00000 is also known as ZEB-22370100000 or 22370100000 .
