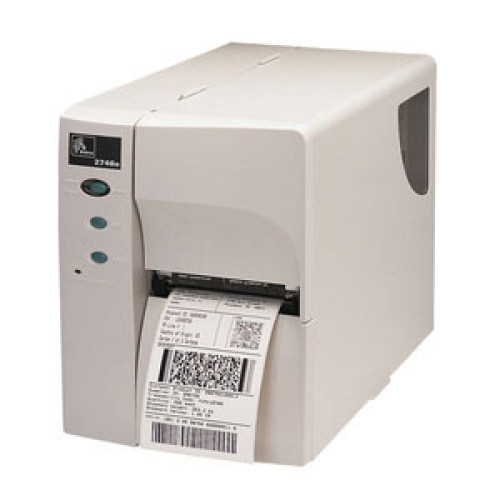

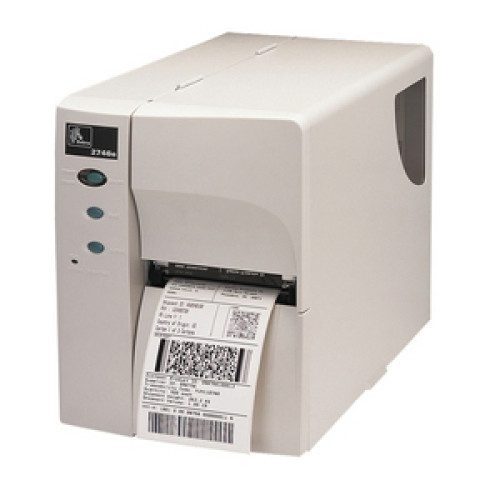

274E-10411-0010 - Zebra 2746e Bar code Printer

The steel-enclosed 2746e represents an affordable basic bar code print solution for entry-level applications that specify a durable metal printer. New feature enhancements on the 2746e include expanded connectivity capability (e.g. standard serial parallel new USB and internal Ethernet option) upgraded electronics improved ribbon spindle design additional memory and intelligent built-in media tracking capabilities that provide additional value and reliability and a compelling sales argument. The 2746e's moderate duty cycle output capability is ideal for individual or batch labeling applications within warehousing/distribution air freight/parcel tracking manufacturing and office printing. Its sturdy metal frame and intuitive design make the 2746e a natural choice for users who need a dependable full-size easy-to-use 4 inch (101.6 mm) printer.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
274E-10411-0010 2746e, Thermal transfer, 203 dpi, 4" print width, RS-232/USB/Ethernet interfaces. Includes US power cable. Interface cables sold separately.
Information:   |  Download Zebra 2746e driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra 2746e service contract  |
Supplies:   |  Zebra 2746e Label  |  Zebra 2746e Ribbon  |  Zebra 2746e Print head  |

274E-10411-0010 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 6 ips
  • Interfaces:
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.50"
  • Maximum Label Length: 22"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: EPL II
  • Input Voltage: 120 V AC
  • RAM Memory: 512KB
  • Flash Memory: 1MB

General Information

  • Manufacturer: Zebra
  • Product Name: 2746e Label Printer

Physical Characteristics

  • Dimensions: 12.38" (314.45mm) x 9.5" (241.3mm) x 16.75" (425mm)
  • Weight: 28.6 lb (12.97 kg)
  • Shipping Weight: 36lb (16.33kg)

Included Features

  • Included Features:
    • Label Dispenser
    • Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • FCC
    • UL
    • CE
    • VCCI
    • CB
    • C-Tic
    • EN55022
    • CISPR22B
    • EN50082-1
    • EN60950
    • IEC 950

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 80% Operating Non-condensing
    • 10 to 90% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Other

  • Package Contents:
    • 2746e Label Printer
    • US Power Cord
    • English/US Documentation

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

The Zebra 274E-10411-0010 is also known as ELT-274E-10411-0010 or 274E104110010 .
