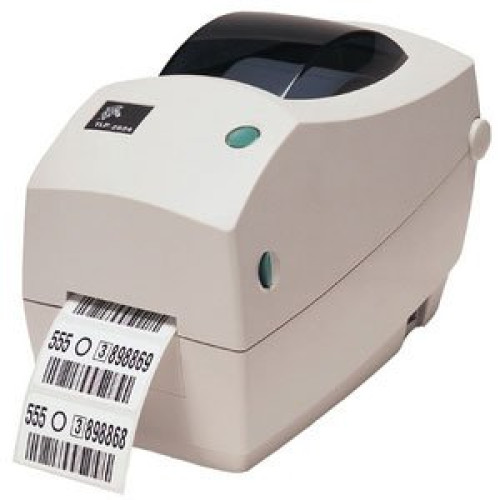

2824-11400-0001 - Zebra TLP2824 Bar code Printer

The TLP2824 is a desktop printer which boasts a surprisingly compact footprint without compromising performance or value. This 2 inch print width printer offers a multitude of user-friendly and innovative features all packed into a small but sturdy double-walled casing. With its competitive electronic platform the TLP2824 delivers high quality bar code label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
2824-11400-0001 TLP2824, Thermal transfer printing, 203 dpi, 2.25" print width, Serial and Ethernet Interfaces. Includes US power supply. Order cables separately.
Information:   |  Download Zebra TLP2824 driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra TLP2824 service contract  |
Supplies:   |  Zebra TLP2824 Label  |  Zebra TLP2824 Ribbon  |  Zebra TLP2824 Print head  |

2824-11400-0001 Details

Technical Information

  • Print Method: Thermal Transfer (TT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Ethernet
    • 1 x Serial
  • Maximum Print Width: 2.2"
  • Maximum Label Width: 2.36"
  • Maximum Label Length: 11"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: EPL II
  • Input Voltage Range: 100 to 240 V AC - USA & European
  • RAM Memory: 128KB
  • Flash Memory: 512KB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 7" (177.8mm) x 5.5" (139.7mm) x 9.5" (241mm)
    • 7" (177.8mm) x 5.5" (139.7mm) x x 9.5" (241mm)
  • Weight: 3.5 lb (1.59 kg)
  • Shipping Weight: 6.1lb (2.77kg)

Included Features

  • Included Features: Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • UL-CUL
    • FCC
    • VCCI
    • C-TICK
    • CB
    • CE
    • CCC
    • NOM
    • IRAM
    • BSMI
    • GOST-R
    • PSE
    • SRRC
    • CSA

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"
  • Ribbon Core Size: 0.5"
  • Ribbon Setup: Wound Out

Other

  • Package Contents:
    • TLP 2824 Label Printer
    • User Documentation: English/European/Latin America

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
Z1AE-28XP-3C0 Zebra Service Contract - 3 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, LP/TLP Plus Series, 3 Years, Comprehensive
Ships Free in 3-5 Days
$84.59
Retail $110
Save 23%
TSP-US-DLP-3 BCI Service Contracts, True Support contract 3-year - Desktop Label Printers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $42 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$42.00

The Zebra 2824-11400-0001 is also known as ELT-2824-11400-0001 or 2824114000001 .
