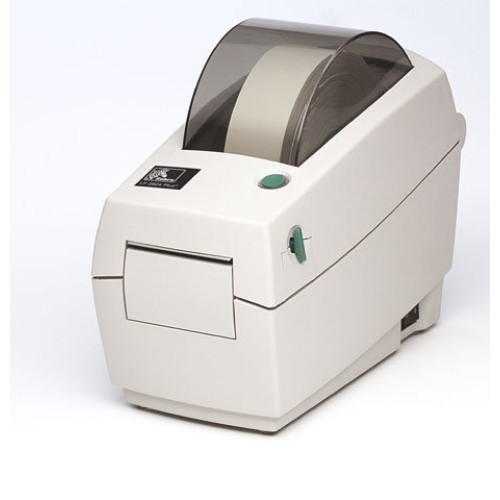

2824-21200-0001 - Zebra LP2824 Bar code Printer

The LP2824 is a desktop printer which boasts a surprisingly compact footprint without compromising performance or value. This 2 inch print width printer offers a multitude of user-friendly and innovative features all packed into a small but sturdy double-walled casing. With its competitive electronic platform the LP2824 delivers high quality bar code label printing at 3.5 inches per second and supports a range of options and accessories for flexible printing solutions.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
2824-21200-0001 LP2824, Direct thermal, 203 dpi, 4 ips, 2" print width, parallel interface, 128KB RAM, 512KB flash. Includes US power supply & product reference guide. Order cables separately. See accessories.
Information:   |  Download Zebra LP2824 driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra LP2824 service contract  |
Supplies:   |  Zebra LP2824 Label  |

2824-21200-0001 Details

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.20"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 39
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 93
    • Codabar
    • Interleaved 2 of 5
    • UPC-A
    • UPC-E
    • UPC-A with 2 or 5 Digit Extension
    • EAN-13
    • EAN-8
    • EAN-13 With 2 or 5 Digit Extension
    • EAN-8 With 2 or 5 Digit Extension
    • POSTNET
    • Japan Postal
    • Plessey
    • RSS-14
    • German Post Code
    • MSI-3
    • Maxi Code
    • Micro PDF-417
    • Macro PDF-417
    • QR Code
    • Data Matrix

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: LP 2824
  • Product Name: LP 2824 Thermal Label Printer

Physical Characteristics

  • Height: 6.8"
  • Width: 3.9"
  • Depth: 7.5"

Interfaces/Ports

  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • UL-CUL 1950
    • FCC Class B
    • VCCI Class B
    • C-TICK
    • EN 500082-1
    • EN 55022 Class B / CISPR 24
    • EN 55021/CISPR 24
    • EN 60950/IEC 950
    • EN 61000-3-2, 3-3
    • CCC/CCIB
    • NOM
    • GOST
    • IRAM
    • CB
    • CE
    • BSMI
  • Additional Information:
    • Head-up sensor
    • OpenACCESS design
    • Soft font storage in Flash memory
    • Media Thickness from 0.003" to 0.007"
    • Construction: ABS double-walled casing
    • Printer Font Set: USA and European
    • Maximum label and liner length (optional) 22"
    • User Documentation: English/European/Latin America
    • 128 KB RAM & 512 KB Flash with No Real Time Clock
    • Windows Code Pages Supported: 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257
    • DOS Code Pages Supported: 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
    • Media sensors:
    • Transmissive
    • Reflective

Media Types & Handling

  • Maximum Label Width: 2.36"
  • Maximum Label Length: 11"
  • Media Type:
    • Fanfold
    • Roll Fed
    • Die-cut Label
    • Continuous Form
    • Tag Stock
    • Continuous Receipt
    • Linerless
  • Media Size: 2.36" x Roll Paper
  • Media Thickness: 7 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 128 KB
  • Flash Memory: 512 KB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: EPL II
Part # Description Availability Price Order
10010053 Zebra Z-Select 4000D 7.5 mil Tag, 1.25" x 2.25" Direct thermal paper 7.5mil tag. Sensing Notch, String Hole. 980 tags/roll, 6 roll case. Also available as a roll (Part# 10010053-R). Ships Today $68.51
10010039-R-COMPATIBLE AirTrack Label, 2" x 1" Direct thermal paper label. 2,340 labels/roll, single roll. Also available as a case (Part# 10010039-COMPATIBLE) (2010DT-P-1"-R).
Ships in 3-5 Days
$14.29
10010039 Zebra Z-Select 4000D, 2" x 1" Direct thermal paper label. 2,340 labels/roll, 4 roll case. Also available as a roll (Part# 10010039-R) Ships Today $60.89
10010036-R-COMPATIBLE AirTrack Label, 1" x 3" Direct thermal paper label. 840 labels/roll, single roll. Also available as a case (Part# 10010036-COMPATIBLE) (1030DT-P-1"-R).
Ships in 7+ Days
$11.90
10010036 Zebra Z-Select 4000D, 1" x 3" Direct thermal paper label. 840 labels/roll, 6 roll case. Also available as a roll (Part# 10010036-R). Ships Today $60.89
G105910-102 Zebra LP 2824, Replacement Printhead Kit, 203 dpi, Compatible Printer Model LP 2824 Ships Free Today $89.25
Retail $105
Save 15%
Z1AE-28XP-3C0 Zebra Service Contract - 3 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, LP/TLP Plus Series, 3 Years, Comprehensive
Ships Free in 3-5 Days
$84.59
Retail $110
Save 23%
TSP-US-DLP-3 BCI Service Contracts, True Support contract 3-year - Desktop Label Printers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $42 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$42.00

The Zebra 2824-21200-0001 is also known as ELT-2824-21200-0001 or 2824212000001 .
