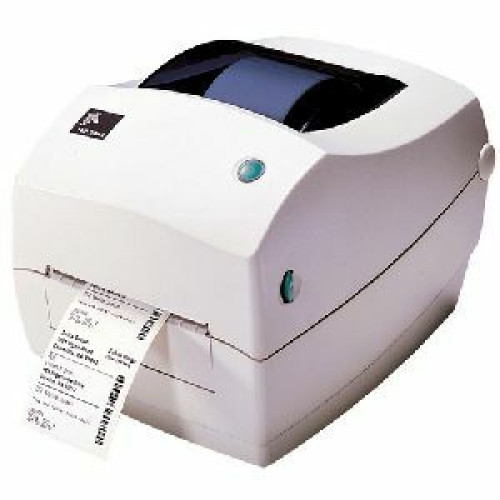

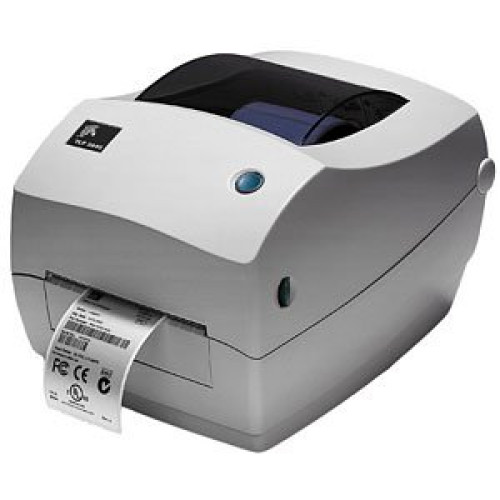

2844-10301-0001 - Zebra TLP2844 Bar code Printer

The TLP2844 direct thermal and TLP2844 thermal transfer desktop label printers expand Zebra's 28-Series product family offering 4-inch print-width capability. These models provide a sturdy double-walled case design and come equipped with a new-generation of controller board motor and power supply that drive the TLP2844's at a print speed of 4 inches per second! An improved print head provides 203dpi resolution with enhanced print quality and the choice of direct thermal or thermal transfer printing technology ensures greater flexibility in supporting a broad variety of labeling applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
2844-10301-0001 TLP2844, Thermal transfer printing, 203 dpi, 4" print width, USB, Parallel, and Serial Interfaces, Dispenser, and US power cord. Order cables separately.
Information:   |  Download Zebra TLP2844 driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra TLP2844 service contract  |
Supplies:   |  Zebra TLP2844 Label  |  Zebra TLP2844 Ribbon  |  Zebra TLP2844 Print head  |

2844-10301-0001 Details

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Parallel
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: EPL II
  • Input Voltage Range: 100 to 240 V AC
  • Power Supply: External
  • RAM Memory: 256KB
  • Flash Memory: 512MB

General Information

Physical Characteristics

  • Dimensions:
    • 6.8" (172.72mm) x 7.9" (200.66mm) x 9.4" (239mm)
    • 6.8" (172.72mm) x 7.9" (200.66mm) x x 9.4" (239mm)
  • Weight: 3.7 lb (1.68 kg)

Included Features

  • Included Features: Dispenser

Agency Approvals

  • Agency Approvals:
    • FCC Part 15
    • Subpart B
    • VCCI
    • C-TICK
    • CE: EN55022 Class-B
    • EN61000-3-2
    • EN61000-3-3
    • EN55024
    • CB Scheme IEC 60950:1991 +A1 +A2 +A3 +A4
    • UL 60950
    • C-UL
    • IRAM
    • NOM
    • AAMI

Environmental Conditions

  • Temperature:
    • 5°C (41°F) to 41°C (106°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity:
    • 10 to 90% Operating
    • 5 to 95% Storage

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"

Warranty

  • Manufacturer Warranty: 1 Year(s)
Part # Description Availability Price Order
800274-605-R-COMPATIBLE BCI Label, 4" x 6" Thermal transfer paper label. 475 labels/roll, single roll. Also available as a case (Part# 800274-605-COMPATIBLE) (4060TT-P-R).
Ships in 24-48 Hours
$10.06
10010044-R-COMPATIBLE BCI Label, 3" x 2" Direct thermal paper labels, 1240 labels/roll, single roll. Also available as a case (Part# 10010044-COMPATIBLE).
Ships in 3-6 days
$20.46
10010044 Zebra Z-Select 4000D, 3" x 2" Direct thermal paper labels, 1240 labels/roll, 6 roll case. Also available as a Single roll (Part# 10010044-R). Ships Today $104.67
10010043-R-COMPATIBLE BCI Label, 3" x 1" Direct thermal paper label. 2,340 labels/roll, single roll. (3010DT-P-1"-R).
Ships in 3-6 days
$16.20
10010043 Zebra Z-Select 4000D, 3" x 1" Direct thermal paper label. 2,340 labels/roll, 6 roll case. Also available as a roll (Part# 10010043-R). Ships Today $105.30
G105910-053 Zebra TLP 2844, Replacement Printhead Kit, 203 dpi, Compatible Printer Model TLP2844 Ships Free Today $107.10
Retail $126
Save 15%
Z1AE-28XP-3C0 Zebra Service Contract - 3 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, LP/TLP Plus Series, 3 Years, Comprehensive
Ships Free in 24-48 Hours
$84.59
Retail $110
Save 23%
TSP-US-DLP-3 BCI Service Contracts, True Support contract 3-year - Desktop Label Printers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $42 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$42.00

The Zebra 2844-10301-0001 is also known as ELT-2844-10301-0001 or 2844103010001 .
