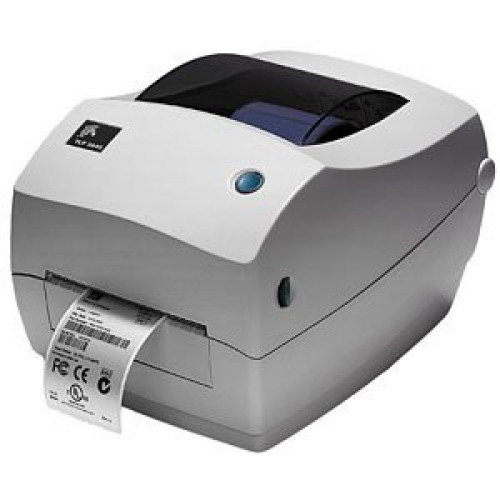

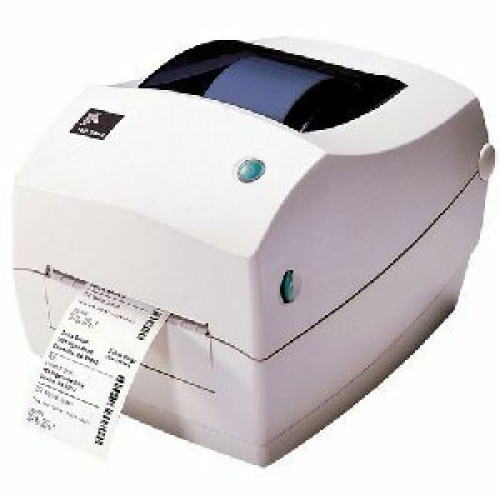

2844-10302-0001 - Zebra TLP2844 Bar code Printer

The TLP2844 direct thermal and TLP2844 thermal transfer desktop label printers expand Zebra's 28-Series product family offering 4-inch print-width capability. These models provide a sturdy double-walled case design and come equipped with a new-generation of controller board motor and power supply that drive the TLP2844's at a print speed of 4 inches per second! An improved print head provides 203dpi resolution with enhanced print quality and the choice of direct thermal or thermal transfer printing technology ensures greater flexibility in supporting a broad variety of labeling applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
2844-10302-0001 TLP2844, Thermal transfer printing, 203 dpi, 4" print width, USB, Parallel, and Serial Interfaces, Cutter, and US power cord. Order cables separately.
Information:   |  Download Zebra TLP2844 driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra TLP2844 service contract  |
Supplies:   |  Zebra TLP2844 Label  |  Zebra TLP2844 Ribbon  |  Zebra TLP2844 Print head  |

2844-10302-0001 Details

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Cutter
  • Barcode Symbology Supported:
    • Code 39
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 93
    • Codabar
    • Interleaved 2 of 5
    • UCP-E
    • UPC-A
    • UPC-A with 2 or 5 Digit Extension
    • EAN-13
    • EAN-8
    • EAN-13 With 2 or 5 Digit Extension
    • EAN-8 With 2 or 5 Digit Extension
    • POSTNET
    • Plessey
    • German Post Code
    • RSS-14
    • MSI-3
    • Maxi Code
    • Micro PDF-417
    • Macro PDF-417
    • QR Code
    • Data Matrix

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TLP
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: TLP 2844
  • Product Name: TLP 2844 Thermal Label Printer

Physical Characteristics

  • Height: 6.8"
  • Width: 7.8"
  • Depth: 9.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • TLP 2844 Label Printer
    • User Documentation: English, European, Latin America
    • TLP 2844 Label Printer
    • User Documentation: English, European, Latin America
  • Certifications & Standards:
    • UL-CUL 1950
    • FCC Class B
    • VCCI Class B
    • C-TICK
    • EN 500082-1
    • EN 55022 Class B
    • .
    • CB
    • CE
    • CCC
    • NOM
    • IRAM
    • BSMI
    • GOST
  • Additional Information:
    • Status reporting
    • Line mode support
    • Element Energy Equalizer
    • Counter support (up to 10)
    • Form, font, and graphics storage
    • Variable field support (up to 100)
    • Printer font set: USA and European
    • Variable field addition and subtraction
    • Text and barcodes printed in 0°, 90°, 180°, 270°
    • User Documentation: English/European/Latin America
    • 128 KB SRAM & 512 KB Flash with no Real Time Clock

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 11"
  • Media Type:
    • Fanfold
    • Tag Stock
    • Roll Fed
    • Die-cut Label
    • Continuous Form
    • Continuous Receipt
  • Media Thickness: 7 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 256 KB
  • Flash Memory: 512 KB

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: EPL II
