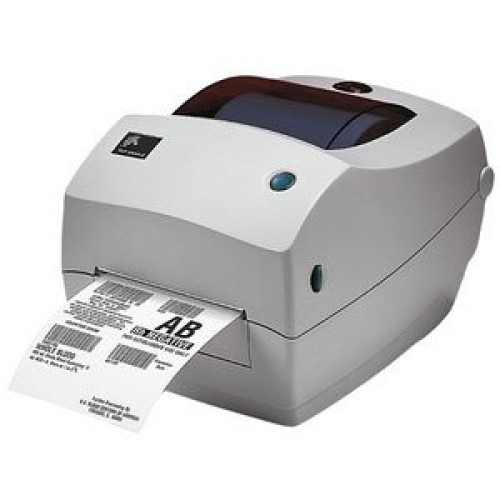

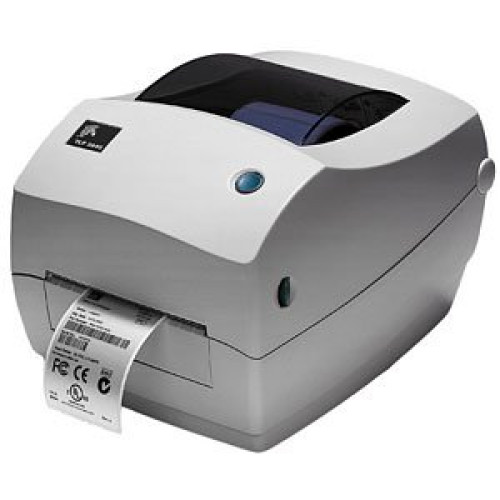

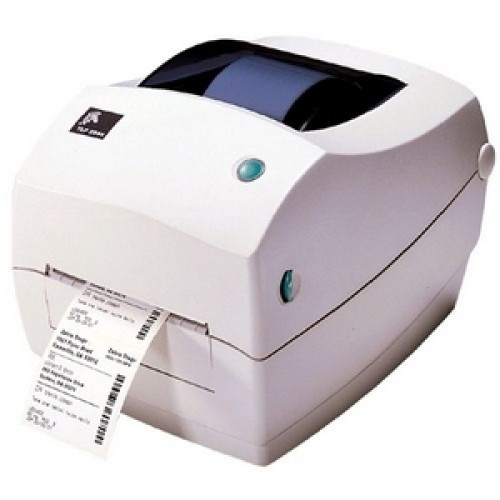

284Z-10400-0001 - Zebra TLP2844Z Bar code Printer

An exciting new addition to the Zebra Desktop Series, the dynamic TLP2844Z features a powerful combination of proven Zebra attributes. The TLP2844Z offers the best in-class integration capabilities of any desktop thermal label printer in the industry. This new ZPL based model comes standard with triple communications interfaces - serial, parallel & USB. The optional internal ZebraNet PrintServer II interface provides quick and easy integration into Ethernet networks and enables the printer to unlock the power of ZebraLink.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
284Z-10400-0001 TLP2844Z, Thermal transfer, 203 dpi, 4 ips, 4" print width, serial, USB, & ZebraNet PrintServer II interfaces, 8MB SDRAM, 4MB flash and ZPL. Includes US power supply. Order cables separately. See accessories.
Information:   |  Download Zebra TLP2844Z driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra TLP2844Z service contract  |
Supplies:   |  Zebra TLP2844Z Label  |  Zebra TLP2844Z Ribbon  |  Zebra Print head  |

284Z-10400-0001 Details

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x USB
    • 1 x RS-232 Serial
    • 1 x RJ-45 10 Base-T Ethernet
    • 1 x Serial
    • 1 x Ethernet
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.25"
  • Maximum Label Length: 11"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language:
    • ZPL
    • ZPL II
    • ZBI
  • Input Voltage Range: 100 to 240 V AC
  • RAM Memory: 256KB
  • Flash Memory: 512KB

General Information

Physical Characteristics

  • Dimensions:
    • 6.8" (172.72mm) x 7.8" (198.12mm) x 9.4" (239mm)
    • 6.8" (172.72mm) x 7.8" (198.12mm) x x 9.4" (239mm)
  • Weight: 3.7 lb (1.68 kg)

Included Features

  • Included Features:
    • ZebraNet PrintServer II
    • Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • UL-CUL 1950
    • FCC Class B
    • VCCI Class B
    • C-TICK
    • EN 500082-1
    • EN 55022 Class B
    • CB
    • CE
    • CCC
    • NOM
    • IRAM
    • BSMI
    • GOST

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating
    • 5 to 95% Storage

Other

  • Package Contents:
    • TLP 2844-Z Label Printer
    • User Documentation: English

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"

Warranty

  • Manufacturer Warranty: 1 Year(s)
Part # Description Availability Price Order
800274-605-R-COMPATIBLE AirTrack Label, 4" x 6" Thermal transfer paper label. 475 labels/roll, single roll. Also available as a case (Part# 800274-605-COMPATIBLE) (4060TT-P-R).
Ships in 3-5 Days
$13.41
800272-125-R-COMPATIBLE AirTrack Label, 2.25" x 1.25" Thermal transfer paper label. 2,100 labels/roll, single roll. Also available as a case (Part# 800272-125-COMPATIBLE) (2250125TT-P-1"-R).
Ships in 7+ Days
$14.29
Retail $16.60
Save 13%
18932-R-COMPATIBLE AirTrack Label, 4" x 2" Thermal transfer polypropylene label. 1,110 labels/roll, single roll. Also available as a case (Part# 18932-COMPATIBLE).
Ships in 7+ Days
$59.24
G46500M Zebra 170Xi II & 170Xi III, Replacement Printhead Kit, 300 dpi, Compatible Printer Model 170XiII & 170XiIII Ships Free Today $701.25
Retail $825
Save 15%
G105910-048 Zebra LP 2844, Replacement Printhead Kit, 203 dpi, Compatible Printer Model LP 2844 Ships Free Today $107.10
Retail $126
Save 15%

The Zebra 284Z-10400-0001 is also known as ELT-284Z104000001 or 284Z104000001 .
