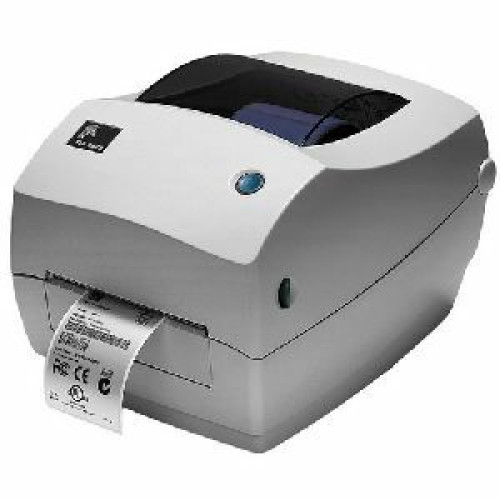

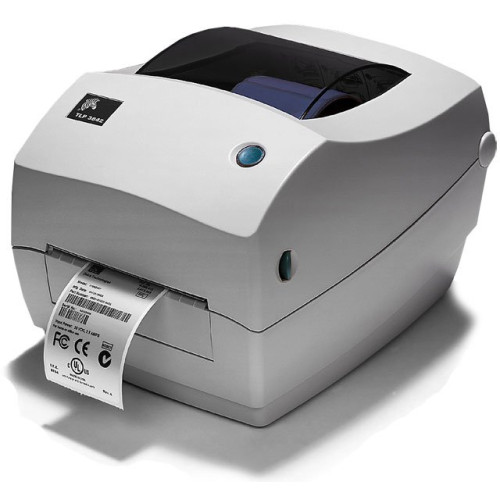

Zebra TLP3842

Thermal transfer, 300 dpi, 2 ips, 4" print width, parallel, serial & USB interfaces, 512KB RAM, 1MB flash. Includes US power supply. Order cables separately. See accessories.

Printer
This part is replaced by GX43-102510-000.
Call for Details



Zebra TLP3842 Printer

The Zebra TLP3842's 300 dpi printhead enables high quality, crisp, clear printing in applications requiring data such as two-dimensional bar codes, fine text or composite graphics. 300 dpi resolution printing also ensures that very small labels, such as those used on laboratory vials or items of jewelry, are easy to read and scan.

Full specifications (PDF)

Manufacturer part number: 3842-10300-0001

Technical Information

  • Print Method: Thermal Transfer (TT)
  • Print Resolution: 300 dpi
  • Print Speed: 2 ips
  • Interfaces:
    • 1 x Parallel
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.25"
  • Maximum Label Length: 11"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language: EPL II
  • Input Voltage Range: 100 to 240 V AC - USA & European
  • RAM Memory: 512KB
  • Flash Memory: 1MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 6.8" (172.72mm) x 7.8" (198.12mm) x 9.4" (239mm)
    • 6.8" (172.72mm) x 7.8" (198.12mm) x x 9.4" (239mm)
  • Weight: 3.2 lb (1.45 kg)

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • UL-CUL
    • EN 500082-1
    • VCCI Class B
    • C-Tick
    • EN 55022 Class B
    • NOM
    • CCC
    • CB
    • CE
    • NOM
    • IRAM
    • BSMI
    • GOST

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating
    • 5 to 95% Storage

Warranty

  • Manufacturer Warranty:
    • 1 Year(s)
    • 1 Year(s) Limited

Other

  • Package Contents:
    • TLP3842 Label Printer
    • User Documentation(English/European/Latin America)

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"
