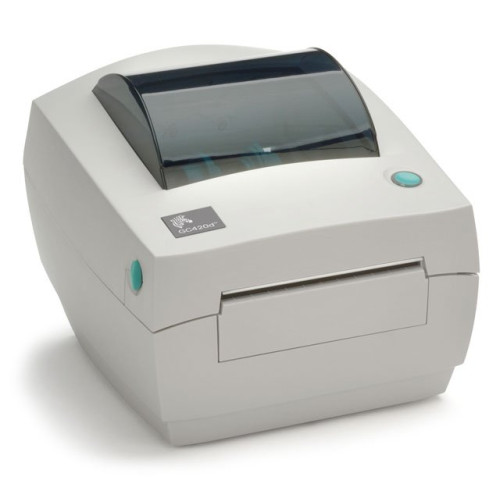

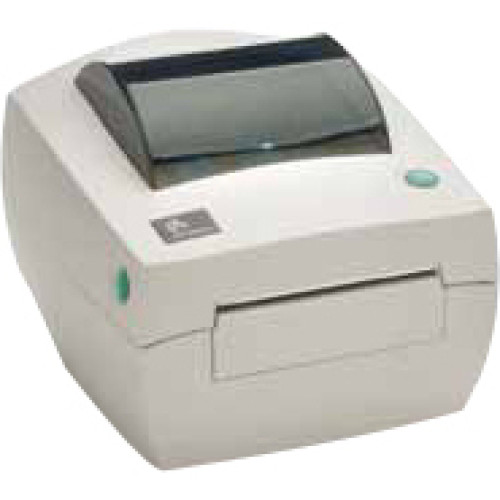

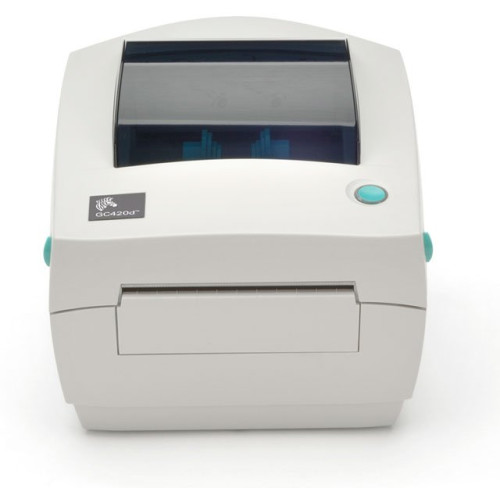

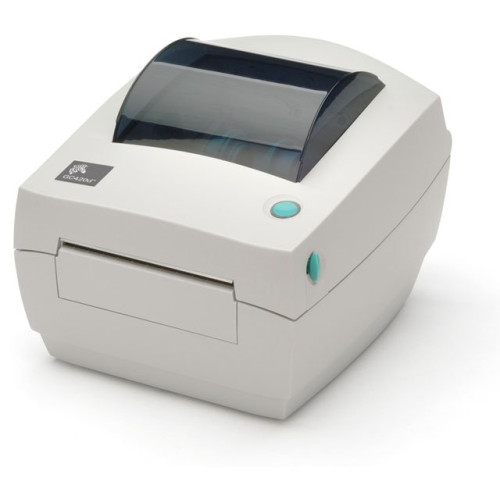

Zebra GC420d Barcode Label Printer
Part #: GC420-200511-000 | SKU: ZEB188792

The GC420d printer's compact, space saving design contains a powerful 32-bit processor for fast label throughput, and 8 MB Flash memory for increased storage of fonts and graphics. The GC420d supports media widths up to 4.25" for standard desktop applications. It also includes both EPL2 and powerful ZPL II programming languages, making it easy to integrate with other Zebra printers. Peeler/dispenser option extends the GC420d printer's versatility to meet an even greater variety of applications.

Zebra GC420d Barcode Label Printer

Part Details: Direct Thermal printing, 203 dpi, 4" Print Width, Serial, USB, Parallel Interfaces, Dispenser, and US Power Cord. Cables sold separately.

Additional Information

Interface Options Parallel, Serial (RS-232), USB
Labels Per Day less than 1,000
Manufacturer Zebra
Max Label Width 4"
Max Roll Outer Diameter 5
Model Name GC420d
Print Resolution 203 dpi
Printer Type Desktop
Printing Technology Direct Thermal
Ribbon Core Size 0.5 inch

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Dispenser
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 39
    • Code 93
    • EAN-13
    • EAN-14
    • EAN-8
    • EAN-13 With 2 or 5 Digit Extension
    • EAN-8 With 2 or 5 Digit Extension
    • German Post Code
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Japan Postal
    • POSTNET
    • LOGMARS
    • MSI
    • Plessey
    • MSI-3
    • RSS
    • RSS14 Limited
    • RSS14 Stacked
    • RSS14 Truncated
    • UCC/EAN 128
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • UPC-A with EAN 2 or 5 Digit Extension
    • UPC-E with EAN 2 or 5 Digit Extension
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Macro PDF-417
    • Maxi Code
    • Micro PDF-417
    • PDF-417
    • QR Code
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: G
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: GC420d
  • Product Name: GC420d Desktop Printer

Physical Characteristics

  • Height: 6.7"
  • Width: 7.9"
  • Depth: 8.2"
  • Form Factor: Desktop
  • Weight (Approximate): 3 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Fanfold
    • Roll Fed
    • Tag Stock
    • Continuous Label
    • Direct Thermal Label
    • Black Mark
    • Continuous Receipt
    • Wristband
    • Liner-free Label
  • Media Thickness: 7 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Other

  • Platform Supported: PC
  • Package Contents:
    • GC420d Desktop Printer
    • US Power Cord
    • User Documentation
    • GC420d Desktop Printer
    • US Power Cord
    • User Documentation
  • Certifications & Standards:
    • PFC
    • TUV-R NRTL
    • TUV-R CB
    • NOM
    • KCC
    • CE
    • FCC Class-B

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • EPL
    • ZPL

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year
Extended Details
