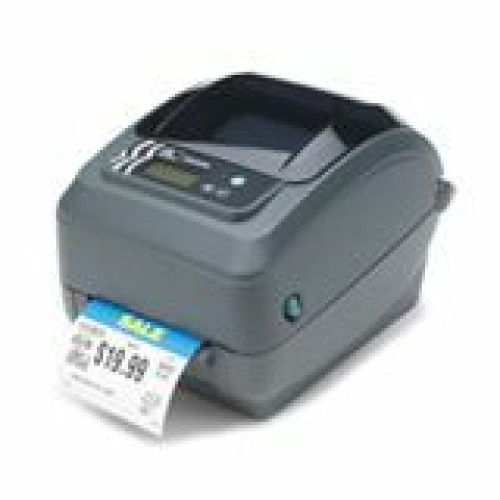

GX42-200310-000 - Zebra GX 420 d Bar code Printer

The best-in-class Zebra GX 420 d direct thermal printer offers the widest range of features, and fast 6 inches per second print speed to meet all your low- to medium-volume printing requirements. The GX 420 d has a sleek and compact design, boasts the smallest footprint in a 4-inch desktop printer, and supports a variety of applications and industries. The GX 420 d comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the reliable Zebra GX 420 d desktop printer is a smart investment that's always a perfect fit.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
GX42-200310-000 GX 420 d, Direct thermal printing, 203 dpi, RS-232 serial, Parallel and USB interfaces, 8MB RAM, 4MB Flash, tear bar, EPL 2, ZPL II and US Power cord
Information:   |  Download Zebra GX 420 d driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra GX 420 d service contract  |
Supplies:   |  Zebra GX 420 d Label  |  Zebra GX 420 d Print head  |

GX42-200310-000 Details

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 39
    • Code 93
    • EAN-13
    • EAN-14
    • EAN-8
    • EAN-8 With 2 or 5 Digit Extension
    • EAN-13 With 2 or 5 Digit Extension
    • German Post Code
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Japan Postal
    • LOGMARS
    • MSI
    • MSI-3
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UCC/EAN 128
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • UPC-E
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Macro PDF-417
    • Maxi Code
    • Micro PDF-417
    • PDF-417
    • QR Code
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: G Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: GX420d
  • Product Name: GX420d Thermal Label Printer

Physical Characteristics

  • Height: 6"
  • Width: 6.8"
  • Depth: 8.3"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Black Mark
    • Continuous Form
    • Continuous Receipt
    • Fanfold
    • Gap
    • Notched
    • Perforated Paper
    • Receipt
    • Roll Fed
    • Tag
    • Tag Stock
  • Media Thickness: 7.50 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Maximum Roll Diameter: 5"

Other

  • Platform Supported: PC
  • Package Contents:
    • GX420d Thermal Label Printer
    • Power Cords: USA
    • GX420d Thermal Label Printer
    • Power Cords: USA
  • Additional Information:
    • 32 bit RISC processor
    • Quick and easy ribbon loading system
    • Dual-wall reinforced plastic construction
    • OpenACCESS design for easy media loading
    • User Documentation: English/European/Latin America/Asian

Fonts & Emulation

  • Language Emulation:
    • EPL2
    • ZPL II

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Warranty

  • Limited Warranty: 1 Year
Part # Description Availability Price Order
10010045-R-COMPATIBLE AirTrack Label, 4" x 1" Direct thermal paper label. 2,340 labels/roll, single roll. Also available as a case (Part# 10010045-COMPATIBLE).
Ships in 7+ Days
$20.27
10010045 Zebra Z-Select 4000D, 4" x 1" Direct thermal paper labels, Perforated, 2340 labels/roll, 6 roll case. Also available as a roll (Part# 10010045-R). Ships Today $126.16
10010044-R-COMPATIBLE AirTrack Label, 3" x 2" Direct thermal paper labels, 1240 labels/roll, single roll. Also available as a case (Part# 10010044-COMPATIBLE).
Ships in 7+ Days
$18.57
10010044 Zebra Z-Select 4000D, 3" x 2" Direct thermal paper labels, 1240 labels/roll, 6 roll case. Also available as a Single roll (Part# 10010044-R). Ships Today $104.67
10010043-R-COMPATIBLE AirTrack Label, 3" x 1" Direct thermal paper label. 2,340 labels/roll, single roll. (3010DT-P-1"-R).
Ships in 3-5 Days
$18.29
10010043 Zebra Z-Select 4000D, 3" x 1" Direct thermal paper label. 2,340 labels/roll, 6 roll case. Also available as a roll (Part# 10010043-R). Ships Today $105.30
105934-037 Zebra GK 420D & GX 420D, Replacement Printhead Kit, 203 dpi, Compatible Printer Model GK420D & GX420D Ships Free Today $107.10
Retail $126
Save 15%
Z1AE-GSER-3C0 Zebra Service Contract - 3 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, G-Series, 3 Years, Comprehensive
Ships Free in 3-5 Days
$69.22
Retail $90
Save 23%
TSP-US-DLP-3 BCI Service Contracts, True Support contract 3-year - Desktop Label Printers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $42 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$42.00

The Zebra GX42-200310-000 is also known as ZEB-GX42-200310-000 or GX42200310000 .
