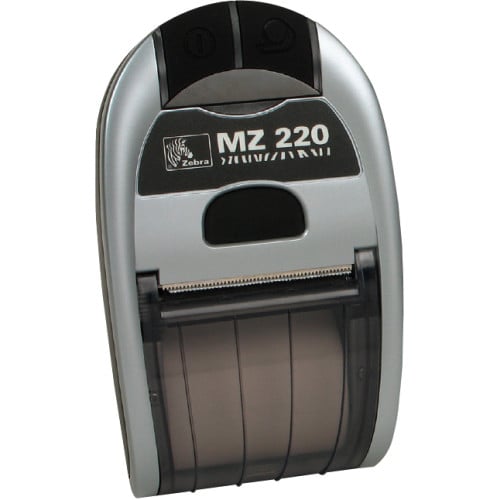

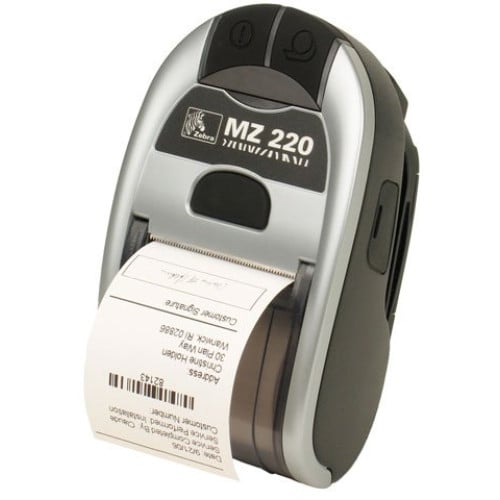

M2F-0UG00010-00 - Zebra MZ220 Portable Bar code Printer

The easy-to-operate Zebra MZ220 mobile receipt printer is a great first step for users looking to replace pen and paper documentation, pre-printed receipts, or unreliable mobile printers. A 2" print width and Bluetooth, 802.11g, IrDA and USB interfaces help mobile workforces all over the world benefit from the MZ220's compact convenience. The MZ220 improves and streamlines business processes in applications such as field repair/installation, deliveries, restaurant tableside payments, mobile point-of-sale, parking citations, onboard transportation ticketing, utility billing/meter reading and much more!

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
M2F-0UG00010-00 MZ 220 Mobile Printer, Printer, 2" Direct thermal, Mobile Receipt, 8Mb/16Mb, Cpcl Native, Zebra Performance Radio 802.11b/G, Includes Battery, Ac Adapater And Roll Of Media
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |  Zebra MZ220 service contract  |
Supplies:   |  Zebra MZ220 Label  |

M2F-0UG00010-00 Details

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 1.90"
  • Recommended Use: Receipt Print
  • Features:
    • Error Condition Indicator
    • Status Indicator
    • Belt Clip
    • Smart Battery Management
  • Barcode Symbology Supported:
    • Codabar
    • Code 128
    • Code 93
    • Code 39
    • EAN-8
    • MSI
    • Interleaved 2 of 5
    • Plessey
    • POSTNET
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • EAN-18
    • NW-7
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • UPC-A with EAN 2 or 5 Digit Extension
    • UPC-E with EAN 2 or 5 Digit Extension
    • FIM
    • Maxi Code
    • PDF-417
    • Aztec Code
    • QR Code
    • RSS
    • GS1 DataBar
    • EAN-13
    • EAN-14

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: MZ
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: MZ 220
  • Product Name: MZ 220 Receipt Printer

Physical Characteristics

  • Height: 5.3"
  • Width: 3.2"
  • Depth: 2.3"
  • Form Factor: Portable
  • Weight (Approximate): 11.20 oz

Interfaces/Ports

  • Infrared: Yes
  • USB: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • MZ 220 Receipt Printer
    • Battery
    • AC Adapter
    • Roll of Media
    • Belt Clip
    • Cleaning Pen
    • Quick Reference Guide
    • Mail-in Registration Card
    • MZ 220 Receipt Printer
    • Battery
    • AC Adapter
    • Roll of Media
    • Belt Clip
    • Cleaning Pen
    • Quick Reference Guide
    • Mail-in Registration Card
  • Certifications & Standards:
    • IP42
    • FCC Part 15
    • En55022 Class B limits
    • FCC
    • ICS
    • CSA
    • IEC 60950
    • nOM
    • C-tick
    • VCCI
    • S-Mark
    • PSE
    • CCC
    • MII

Media Types & Handling

  • Maximum Label Width: 2"
  • Media Type:
    • Continuous Receipt
    • Receipt
    • Direct Thermal Label
    • UV Coated Media
  • Media Thickness: 4 mil
  • Media Sensor:
    • Out Of Paper Sensor
    • Reflective Media Sensor
    • Media Door Open Sensor
  • Label Core Size: 0.75"
  • Maximum Roll Diameter: 1.88"

Battery Information

  • Battery Included: Yes
  • Battery Rechargeable: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b/g

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Fonts & Emulation

  • Language Emulation: CPCL

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Power Source: Battery

The Zebra M2F-0UG00010-00 is also known as ZEB-M2F-0UG00010-00 or M2F0UG0001000 .
