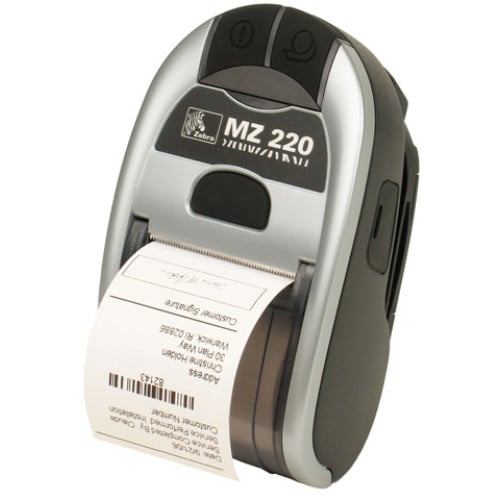

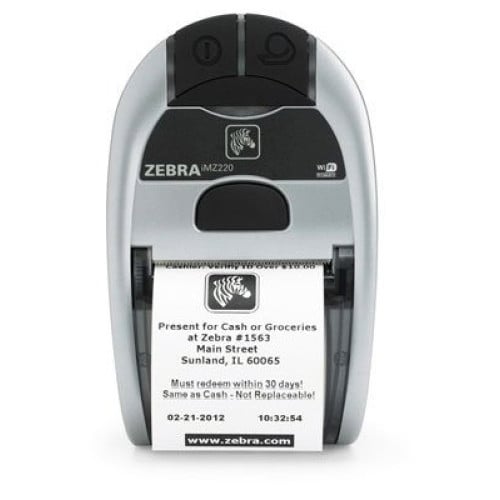

Zebra iMZ220 Receipt Printer
Part #: M2I-0UB00010-00 | SKU: ZEB211621

Boost efficiency and easily print 2 inch-wide crisp, clear receipts on the go with the iMZ220 mobile printer. Its compact design makes it easy to carry all day. Supports 2-inch print width.

Zebra iMZ220 Receipt Printer

Part Details: 2" print width, 128MB/128MB, US/Canada English, Bluetooth. Works with Apple iOS (iPad, iPhone, iPod).

Additional Information

Color Gray
Form Factor Mobile
Interface Options Bluetooth
Manufacturer Zebra
Model Name iMZ220
Print Speed 4 ips

STANDARD FEATURES

  • A receipt label mobile printer using direct thermal printing technology
  • Primary vertical applications center around retail, mobile workforce, transportation & logistics and hospitality
  • Compatible with the latest smartphone and tablet operating systems

More Standard Features
  • 203 dpi resolution (8 dots/mm)
  • Print Speed: up to 4 ips (102 mm/s)
  • CPCL and ZPL programming languages
  • Resident fixed and scalable fonts
  • 400 MHz 32-bit ARM processor with 128MB RAM
  • 128 Flash supports downloadable programs, receipt formats, fonts, and graphics
  • USB port
  • 16oomAH Li-Ion battery
  • Optical out-of-media sensing using fixed center position sensor
  • Tear bar for easy receipt dispensing
  • Supports vertical and horizontal printing
  • Printer can be used in any orientation
  • Fixed media roll width
  • \"Clamshell\" design for easy loading
  • Management : Mirror, SNMP, Web server (with customizable HTML pages), Wavelink Avalanche®
  • Four LEDs as user interface indicators
  • 4' (1.2 m) drop to concrete (multiple times)
  • IP42 rated for dust and water resistance (IP54 with durability enhancing case)
  • Label odometer
  • Bluetooth™ security modes 1-4
  • Bluetooth printing from Apple, Android and Windows devices
  • Made for iPod, iPhone, iPad
  • Link-OS™ environment capable
  • Print Touch™ via NFC (Near Field Communication)

Validated Handheld Terminals, Smartphones, and Software
  • Wireless connectivity was tested with the leading handheld terminals to improve the integration of the complete solution with the iMZ printers. If a product is not documented as being interoperable there is no implication it does not work with the printer.
  • Honeywell: Dolphin 6000, Dolphin 6100, Dolphin 7800, Dolphin 99EX, Tecton
  • Motorola: MC909x, MC75A, MC55, ET1
  • Intermec: CK71
  • Android: Google Nexus 7, Motorola ET1, Samsung Galaxy Tablet
  • Apple: iPod touch (5th and 4th generation), iPhone (5, 4S, 4), iPad (3rd generation and 2)
  • A list of Independent Software Vendor (ISV) software applications that have been validated to work with the iMZ can be found at zebra.com/validation. Validated applications have gone through the Zebra Validation Program to verify the interoperability of the software applications with Zebra products.
\"\"
Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Memory: 128 MB Flash, 128 MB RAM
iMZ220 Print width: 1.9\" (48.3 mm)
Print length: Maximum continuous
Print speed: 4ips (102 mm/s)


Options
  • Bluetooth 2.1 connectivity
  • 802.11 (a/b/g/n) connectivity

Programming Lanuages
  • Core programming languages: CPCL and ZPL

Media Characteristics

Media width: 2.0\" (+/-0.03\"), 50.8 mm (+/-0.76 mm)
Max media thickness: 4 mil (0.1016 mm)
Max print width: 1.9\" (48.3 mm)
Media roll ID: 0.4\" (10.2 mm) to 0.75\" (19 mm)
Max media roll OD: 1.88\" / 47.8 mm
Media types: Direct-thermal receipt paper, or UV-coated media


Related Products

Accessories:

  • Protective silicone case
  • Durability-enhancing case (IP54 rating when using the case)
  • Shoulder strap
  • iMZ™ Series 4-bay power station
  • Vehicle adapter

Communication and Interface Capabilities:

ZebraNet 802.11 a/b/g/n radio with support for:

  • WEP, TKIP, and AES encryption (802.1x)
  • EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
  • 802.11i (WPA2), 802.11d, 802.11h
  • 802.11n (optional): Wi-Fi Certified
  • USB 2.0
  • Bluetooth 2.1 (includes Bluetooth support for iOS devices)
  • Windows R compatibility: (CE NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows print driver and/or our Mobile SDK controls and other applications.)
  • Android 2.3, 4.0, 4.1
  • iOS 6, iOS 5
  • Dual radio 802.11 a/b/g/n & Bluetooth 3.0 radio

Operating Characteristics

Operating temperature: 14° F (-10° C) to 122° F (50° C)
Operating humidity: 10-90% non-condensing
Storage humidity: 10-90% non-condensing
Storage temperatures: -4° F (-20° C) to 140° F (60° C)

Agency approvals:
FCC Part 15 and EN55022 Class B limits
FCC, ICS, and European Standards for Bluetooth and 802.11a/b/g/n
TUV and IEC 60950 standard for Safety
NOM
C-Tick
VCCI
S-Mark
PSE
CCC
MII Bluetooth SIG-registered
Made for iPod, iPhone, iPad certified
Wi-Fi certified


Physical Characteristics

Width: 3.18\"/80.8 mm
Height: 5.34\" (135.6 mm)
Depth: 2.26\" (57.4 mm)
Weight: .70 lbs (.32 kg)


barcode Symbologies

Barcode Ratios:
1.5:1, 2:1, 2.5:1, 3:1, 3.5:1\"
Linear barcodes:
Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, 2 and 5 digit add-on, Interleaved 2 of 5, UCC/EAN 128, UPC-A, UPC-E, 2 and 5 digit add-on\"
2-Dimensional:
Aztec Code, Data Matrix, GS1/DataBar™, (RSS) family, MaxiCode, MicroPDF417, PDF 417, QR Code, TLC 39\"


Fonts and Graphics

Standard fonts: 25 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed)
Optional fonts: Downloadable bitmapped and scalable fonts
International character sets / codepages supported: USA, Germany, France, Sweden, Spain, Norway, Italy, CP850, UK (Latin 9), Chinese GB18030, BIG 5 (Traditional), Japanese and Korean supported in 16x16 and 24x24, Thai and others upon request
Supports user-defined fonts and graphics, including custom logos

Extended Details

Recommended Receiptpapers for Model: Zebra iMZ220 Receipt Printer

  • Zebra Z-Perform 1000D Receipt Paper
    Part #: 10006224 | SKU: ZEB41752

    4"x100' Z-Perform 1000D DT Receipt Paper - price per case
    MSRP: $122.04 Price: $97.04
    In Stock
  • Zebra Z-Select 4000D Receipt Paper
    Part #: 10011043 | SKU: ZEB82777

    2" x 55' Z-Select 4000D 3.2 mil Receipt (25 year archivability) Paper, Direct Thermal, 55' Per Roll, Rolls Per Carton/36. For use with Mobile Printers
    MSRP: $108.72 Price: $85.84
    In Stock
  • Zebra Receipt Paper Receipt Paper
    Part #: 10011041 | SKU: ZEB82775

    2" x 80' Z-Perform 1000D 2.4 mil Receipt (10 year archivability) Paper, Direct Thermal, 80' Per Roll, Rolls Per Carton/36. For use with Mobile Printers
    MSRP: $82.44 Price: $64.96
  • Zebra Z-Perform 1000D Receipt Paper
    Part #: 10006224-R | SKU: ZEB86666

    4" x 1200" Direct Thermal 2.4mil Receipt Paper. Compatible with Mobile Printers. Continuous Roll. Single roll. Does not require a ribbon. Also available as a case (Part# 10006224).
  • Zebra Z-Perform 1000D Receipt Paper
    Part #: 10011041-R | SKU: ZEB84271

    2" x 960" Direct Thermal 2.4mil Receipt Paper. Compatible with Mobile Printers. Continuous Roll. Single roll. Does not require a ribbon. Also available as a case (Part# 10011041).

Recommended Warranties for Model: Zebra iMZ220 Receipt Printer

  • Zebra iMZ Series Service Contract
    Part #: Z1BF-IMZX-1C0 | SKU: ZEB373873

    Essential, Purchased after 30 days of Device, NBD TAT, NA MX only, iMZ220, iMZ320, 1 Years, Comprehensive
    MSRP: $95.68 Price: $78.65
    In Stock
  • Zebra iMZ Series Service Contract
    Part #: Z1AS-IMZX-3CR | SKU: ZEB373890

    Select, Purchased within 30 days of Device, Advanced Exchange, iMZ220, iMZ320, 3 Years, Comprehensive w Battery Refresh (Applicable countries only)
    MSRP: $250.00 Price: $207.81
    In Stock
  • Zebra iMZ Series Service Contract
    Part #: Z1BS-IMZX-1C0 | SKU: ZEB373874

    Select, Purchased after 30 days of Device, Advanced Exchange, iMZ220, iMZ320, 1 Years, Comprehensive
    MSRP: $107.12 Price: $88.05
    In Stock
  • Zebra iMZ Series Service Contract
    Part #: Z1AS-IMZX-3CM | SKU: ZEB373889

    Select, Purchased within 30 days of Device, Advanced Exchange, iMZ220, iMZ320, 3 Years, Comprehensive with Battery Maintenance (applicable countries only)
    MSRP: $245.00 Price: $203.64
    In Stock
  • Zebra iMZ Series Service Contract
    Part #: Z1AE-IMZX-3C0 | SKU: ZEB373866

    Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX; 5 DAY TAT ROW, iMZ220, iMZ320, 3 Years, Comprehensive
