Photo of Zebra Q2D-LUGA0000-00 Zebra logo

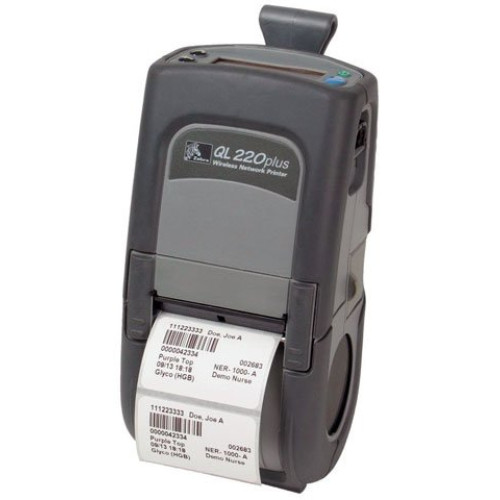

Zebra QL 220

Plus Direct thermal Mobile Printer (USB, 8MB/16MB, LCD, 802.11b/g, Linered Platen and Belt Clip). Power supply (Part# CC16614-G4) not included. See accessories.

This part is replaced by QN2-AUNA0E00-00.
Call for Details



Zebra QL 220 Plus Portable Printer

At 1.04 lbs, the lightweight QL 220 Plus is the smallest network addressable printer available. This 2-inch direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. To keep your business moving, it provides many user-friendly options such as center-loading media, smart battery monitoring, and an optional LCD. The QL 220 Plus is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery and verification, and for mobile point-of-sale anywhere space is at a premium. The QL 220 Plus's QuickLink modules, with Bluetooth or 802.11b radios, offer the flexibility to adjust to a wide range of connectivity needs.

Full specifications (PDF)

Manufacturer part number: Q2D-LUGA0000-00

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 1.89"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 128
    • Code 93
    • Code 39
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • POSTNET
    • Plessey
    • UCC/EAN 128
    • FIM
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • PDF-417
    • Maxi Code
    • Data Matrix
    • RSS
    • GS1 DataBar
    • QR Code
    • Aztec Code

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: QL
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: QL 220 Plus
  • Product Name: QL 220 Plus Label Printer

Physical Characteristics

  • Height: 7.2"
  • Width: 3.6"
  • Depth: 3"
  • Form Factor: Portable

Interfaces/Ports

  • USB: Yes

Media Types & Handling

  • Maximum Label Width: 2.18"
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Linerless
    • Receipt
  • Media Thickness: 6.50 mil
  • Label Core Size: 1.38"
  • Maximum Roll Diameter: 2.20"

Other

  • Country of Origin: China
  • Platform Supported: PC
  • Package Contents:
    • QL 220 Plus Label Printer
    • Linered Platen
    • Belt Clip
    • QL 220 Plus Label Printer
    • Linered Platen
    • Belt Clip

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL
    • CPCL
    • EPL II

Memory

  • Standard Memory: 16 MB
  • Memory Technology: DRAM
  • Flash Memory: 8 MB

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b/g

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Power Description

  • Input Voltage: 7.4 V DC

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)
