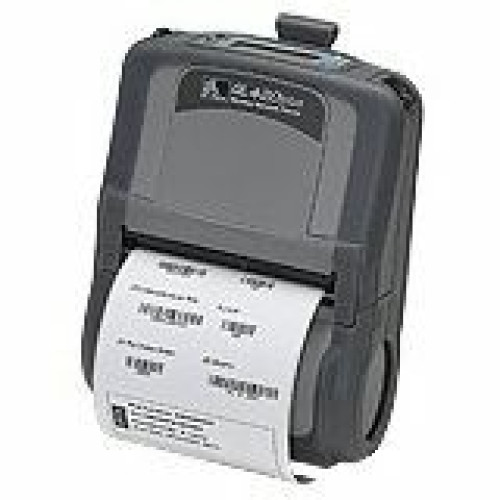

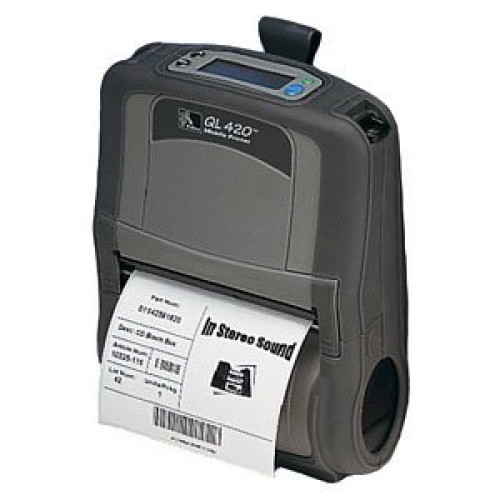

Q4C-LUFA0000-00 - Zebra QL420 Plus Portable Bar code Printer

The newly-updatedQL420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over molding to maintain both rugged construction and minimal weight. With center-loading media smart battery monitoring and an optional LCD it provides user-friendly options to keep your business moving.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
Q4C-LUFA0000-00 QL420 Plus, Direct thermal, 4 inch print width, 8MB RAM, 4MB Flash, CPCL, EPL/ZPL Support, LCD, Zebra Value Radio 802.11b, Linered Platen and Beltclip. Power supply (Part# CC16614-G4) not included. See accessories.
Information:   |  Download Zebra QL420 Plus driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Zebra QL420 Plus service contract  |
Supplies:   |  Zebra QL420 Plus Label  |

Q4C-LUFA0000-00 Details

Technical Information

  • Print Method: Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x USB
    • Wireless
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.12"
  • Maximum Label Length: 20"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Printer Language:
    • ZPL
    • EPL
    • CPCL
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: Yes
  • Power Source: Battery

General Information

Physical Characteristics

  • Dimensions:
    • 7.5" (190.5mm) x 6" (152.4mm) x 3" (76mm)
    • 7.5" (190.5mm) x 6" (152.4mm) x x 3" (76mm)
  • Weight: 2 lb (0.91 kg)

Included Features

  • Included Features:
    • LCD Display
    • Linered Platen
    • Belt Clip
    • Zebra Value Radio

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE Class B
    • CSA
    • CB
    • NOM
    • C-Tick

Environmental Conditions

  • Temperature:
    • 5°F (-15°C) to 122°F (50°C) Operating
    • -13°F (-25°C) to 158°F (70°C) Storage
  • Humidity:
    • 10 to 80% Operating Non-condensing
    • 10 to 90% Storage Non-condensing

Other

  • Package Contents:
    • QL 420 Plus Mobile Label Printer
    • Lithium Ion Battery

Media Characteristics

  • Maximum Label Roll Diameter: 2.6"
  • Label Core Size: 1.38"

Mobile Features

  • Network Connectivity: 802.11b

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
LD-R7AM5R Zebra Z-Perform 1000D, 2" x 3" Direct thermal paper label. Black mark sensing, Not perforated. 125 labels/roll, 36 roll case. Ships Today $114.20
LD-R6AD5W Zebra Z-Perform 2000D, 2.94" x 4.94" Direct thermal paper label. Black mark sensing, Not perforated. 130 labels/roll. 36 roll case. Also available as a roll (Part# LD-R6AD5W-R). Ships Today $217.70
LD-R4AW5B Zebra Z-Perform 1000D, 4" x 6" Direct thermal paper label. Black mark sensing. 105 labels/roll. 36 roll case. Also available as a roll (Part# LD-R4AW5B-R). Ships Today $328.50

The Zebra Q4C-LUFA0000-00 is also known as ZEB-Q4C-LUFA0000-00 or Q4CLUFA000000 .
