Photo of Zebra Q4D-LUBA0000-00 Zebra logo

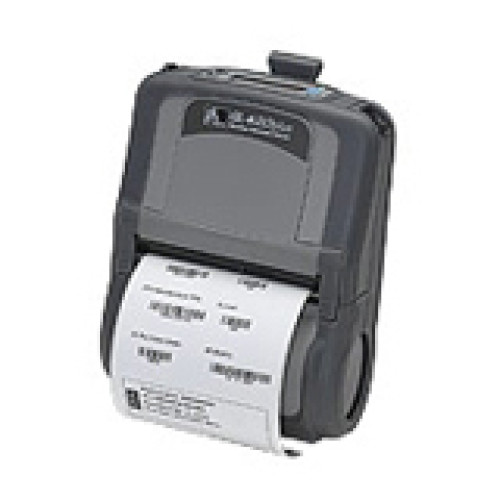

Zebra QL420 Plus

Mobile Direct thermal Printer (4 inch Printhead, USB, 16MB RAM, 8MB Flash, LCD, Bluetooth, Linered Platen and Belt Clip). Power supply (Part# CC16614-G4) not included. See accessories.

This part is replaced by QN4-AUCA0E00-00.
$968.15
Ships in 24-48 hours



Zebra QL420 Plus Portable Printer

The updated QL420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.

Full specifications (PDF)

Manufacturer part number: Q4D-LUBA0000-00

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Peel Facility
    • Belt Clip
    • LCD Display
  • Barcode Symbology Supported:
    • Codabar
    • Code 128
    • Code 93
    • Code 39
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • MSI
    • Plessey
    • POSTNET
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • EAN-18
    • FIM
    • Maxi Code
    • PDF-417
    • Aztec Code
    • Data Matrix
    • QR Code
    • RSS
    • GS1 DataBar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: QL
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: QL 420 Plus
  • Product Name: QL 420 Plus Network Thermal Label Printer

Physical Characteristics

  • Height: 7.5"
  • Width: 6"
  • Depth: 3"
  • Form Factor: Portable

Interfaces/Ports

  • USB: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • QL 420 Plus Network Thermal Label Printer
    • Battery
    • QL 420 Plus Network Thermal Label Printer
    • Battery
  • Additional Information:
    • Present Mode
    • Media Handling : Direct Thermal/Linered Platen
    • Open access design and center locking media loading
    • Rubber infused plastic over mold design for tough conditions
    • Backward compatible with Encore and Cameo media and cables
    • Character Set : US/Canadian English/Latin 1 & 5 (Including Turkish)
    • Grouping "0": (US/Canada/Australia/New Zealand/ Mexico/Nicaragua)

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Media Type:
    • Roll Fed
    • Die-cut Label
    • Linerless
    • Receipt
    • Fanfold
    • Black Bar
  • Media Thickness: 6.50 mil
  • Label Core Size: 1.38"
  • Maximum Roll Diameter: 2.63"

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • ZPL
    • EPL II
    • XML
    • EPL

Battery Information

  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 1 Year
