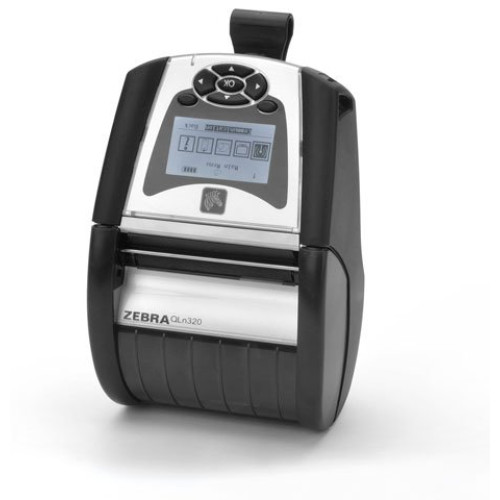

QN3-AUGA0E00-00 - Zebra QLn 320 Portable Bar code Printer

Boost productivity and print anywhere with drop-resistant mobile printers that offer high-quality printing, easy integration, proactive alerts and convenient charging. Trust these mobile printers to improve efficiencies throughout operations–in the warehouse, shipping and receiving and merchandising. Quickly and easily print barcode labels, receipts, tickets and more, on-site and on-demand.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
QN3-AUGA0E00-00 QLn 320, 3 INCH, USB, PERFORMANCE RADIO 802.11g, Ethernet, 128MB/256MB, CPCL, LCD, DT, LINERED PLATEN, 3/4 INCH MEDIA CORE SIZE. Power supply (Part# P1031365-063) not included. See accessories.
Information:   |  Download Zebra QLn 320 driver  |  Specifications  |  Zebra's QLn 320 page  |
Accessories:   |  Accessories/Options  |  Zebra QLn 320 service contract  |

QN3-AUGA0E00-00 Details

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.90"
  • Recommended Use: Label Print
  • Features:
    • Belt Clip
    • Tear Bar
    • Mirror Printing
    • Label Odometer
    • Real Time Clock
    • Vertical Printing
    • Horizontal Printing
    • Peel Facility
    • Dust Resistant
    • Water Resistant
    • Hand Strap
    • Shoulder Strap
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • UCC/EAN 128
    • Code 128
    • Codabar
    • Interleaved 2 of 5
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • PDF-417
    • Micro PDF-417
    • Maxi Code
    • QR Code
    • RSS
    • GS1 DataBar
    • Aztec Code
    • Data Matrix
    • TLC 39
    • FIM
    • POSTNET
    • Plessey

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: QLn
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: QLN320
  • Product Name: QLn320 Mobile Printer

Physical Characteristics

  • Height: 3.3"
  • Width: 4.6"
  • Depth: 6.8"
  • Form Factor: Portable
  • Weight (Approximate): 1.60 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Package Contents:
    • QLn320 Mobile Printer
    • Software & Drivers CD
    • Battery
    • QLn320 Mobile Printer
    • Software & Drivers CD
    • Battery
  • Certifications & Standards:
    • IP54
    • FCC Part 15, Subpart B
    • EN55022 Class-B
    • EN60950
    • EN55024
    • VCCI class B
    • EN55024
    • EN61000-4-2
    • EN61000-4-3
    • EN61000-4-4
    • EN61000-4-5
    • CE
    • UL
    • TUV
    • CSA
    • IP43
    • IP54
    • Unicode
    • UTF-16

Media Types & Handling

  • Maximum Label Width: 3.10"
  • Maximum Label Length: 32"
  • Media Type:
    • Linered Media
    • Black Mark
    • Gap
    • Roll Fed
    • Direct Thermal Label
    • Label
  • Media Thickness: 6.50 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Label Taken Sensor
    • Reflective Media Sensor
  • Label Core Size: 0.75"
  • Maximum Roll Diameter: 2.60"

Network & Communication

  • Ethernet: Yes
  • Wireless LAN: Yes
  • Ethernet Technology: Fast Ethernet
  • Wireless LAN Standard: IEEE 802.11g

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • ZPL
    • XML

Battery Information

  • Battery Included: Yes
  • Battery Rechargeable: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Power Description

  • Input Voltage: 7.4 V DC
  • Power Source: Battery

Memory

  • Standard Memory: 128 MB
  • Flash Memory: 256 MB

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
