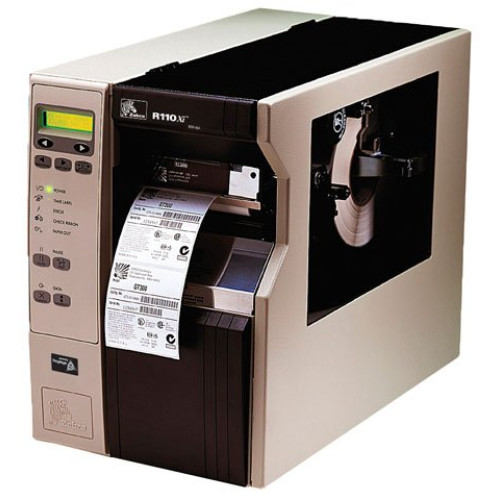

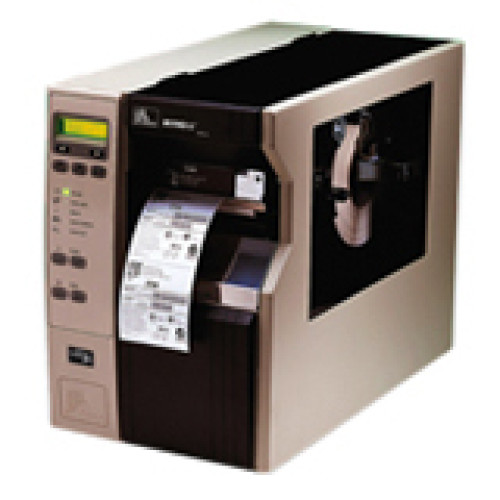

R13-7A1-00000 - Zebra R110 xi RFID Printer

The Zebra R110 xi is built on Zebra's durable, industry-leading Xi III Plus platform. With the added capability of RFID printing, the R110 xi offers amazing flexibility and performance to any size enterprise system. The Zebra R110 xi features XML encoding, automatic calibration of inlay positions, stats tracking, a 4" print width and more. No more RFID compliance worries - the R110 xi offers investment protection and performance far into the future.

Part # Description Availability Price Order
R13-7A1-00000 R110 xi, Thermal transfer, RFID, 300 dpi, Serial, ZebraNet 10/100 PrintServer and USB Interfaces, US Power supply, 16MB SDRAM, Clear Media Side Door and Media Hanger. Order cables separately, see accessories.
Information:   |  Specifications  |
Accessories:   |  No accessories available  |  Bar code Software  |  Zebra R110 xi service contract  |
Supplies:   |  Zebra R110 xi Label  |  Zebra Print head  |

R13-7A1-00000 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 8 ips
  • Interfaces:
    • 1 x Fast Ethernet
    • 1 x Serial
    • 1 x USB 2.0
  • Maximum Print Width: 4"
  • Maximum Label Width: 4.5"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language: ZPL II
  • Input Voltage: 120 V AC
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 10.37" (263.4mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 10.37" (263.4mm) x x 19.5" (495mm)
  • Weight: 50 lb (22.68 kg)

Included Features

  • Included Features:
    • Clear Media Side Door & Media Hanger
    • Internal ZebraNet 10/100 Print Server

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Agency Approvals

  • Agency Approvals:
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
    • FCC Part 15.107 Class B
    • FCC Part 15.109 Class B
    • FCC Part 15.247
    • Canadian ICES-003, Class B IC RSS-210
    • Canadian ICES-003, Class BIC RSS-210

RFID

  • Standards Supported:
    • EPC Class 0
    • EPC Class 1
    • ISO18000-06B
    • Matrics' 0+
  • Operating Frequency: 908MHz to 928MHz

Other

  • Package Contents:
    • R110Xi RFID Printer
    • RXi User's Guide
    • North American Edition Power Cord With US Plug
    • Accessories CD

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
G48924 Zebra Twinax (for the XIII, XIIII and 105SL Printers) Ships Free Today $1,313.00
G41355 Zebra Media Rewind Spindle (Enables Rewind and Peel Off) for the XiIII+ Ships Free Today $645.15
Retail $759
Save 15%
G33194-256 Zebra Memory Kit (PCMCIA, 256MB) Ships Free Today $456.00
G33114M Zebra Kit (RS-232/RS-485 External Converter) Ships Free Today $48.46
Retail $61
Save 20%
13400 Zebra Cables, 10 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-03M). Ships Free Today $12.57
Retail $14.99
Save 16%
13172 Zebra Cables, 6 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-02M). Ships Free Today $12.14
G79094 Zebra ZebraNet PrintServer II, Wireless PrintServer (for the XIII+ Only) Ships Free Today $514.80
G47480 Zebra ZebraNet PrintServer II, Internal PrintServer 10/100 Base-T interface for 105SL and 110XiIIIplus Ships Free Today $375.70
Retail $442
Save 15%
NSC-OSMC-NEW-36 Zebra Service Plan, 3-Year On-Site Service Plan for new printers. When trouble occurs, a technician will arrive on-site in 48 hours with repair parts in-hand. Ships Free Today $836.00

The Zebra R13-7A1-00000 is also known as ZEB-R137A100000 or R137A100000 .
