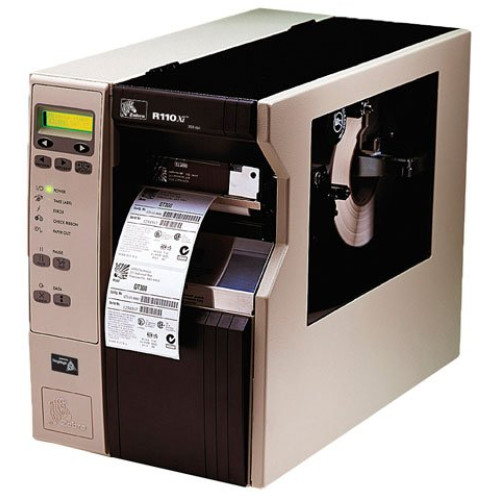

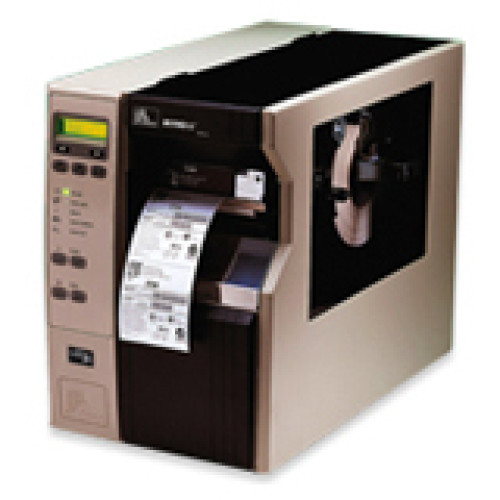

R13-7A1-00200 - Zebra R110 xi RFID Printer

The Zebra R110 xi is built on Zebra's durable, industry-leading Xi III Plus platform. With the added capability of RFID printing, the R110 xi offers amazing flexibility and performance to any size enterprise system. The Zebra R110 xi features XML encoding, automatic calibration of inlay positions, stats tracking, a 4" print width and more. No more RFID compliance worries - the R110 xi offers investment protection and performance far into the future.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
R13-7A1-00200 R110 xi, Thermal transfer, RFID, 300 dpi, ZebraNet 10/100 PrintServer Interface, Rewinder, US Power supply, 16MB SDRAM, Clear Media Side Door and Media Hanger
Information:   |  Specifications  |
Accessories:   |  No accessories available  |  Bar code Software  |  Zebra R110 xi service contract  |
Supplies:   |  Zebra R110 xi Label  |  Zebra Print head  |

R13-7A1-00200 Details

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4"
  • Recommended Use: RFID Label Print
  • Features: Rewinder
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 93
    • Code 39
    • EAN-8
    • EAN-13
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • ISBT-128
    • LOGMARS
    • MSI
    • Planet Code
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • RSS
    • TLC 39
    • Micro PDF

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: RXi
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: R110Xi
  • Product Name: R110Xi RFID Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 10.4"
  • Depth: 19.5"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • R110Xi RFID Printer
    • North American Edition Power Cord
    • User's Guide
    • Accessories CD
    • R110Xi RFID Printer
    • North American Edition Power Cord
    • User's Guide
    • Accessories CD
  • Certifications & Standards:
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
    • FCC Part 15.107 & 15.109 Class B
    • FCC Part 15.247
    • Canadian ICES-003 Class B
    • IC RSS-210
  • Additional Information:
    • Label Tracking
    • 300 unique darkness settings
    • Advanced media/ribbon counter
    • North American Edition, 120 VAC Cord
    • Clear Media Side Door and Media Hanger
    • Transmissive and reflective media sensors
    • Enhanced Alert notification -monitors printhead condition
    • Multi-level Element Energy Equalizer (E3) for superior print quality
    • Integrated ThingMagic UHF RFID Reader/Encoder for EPC Class 1, EPC Class 0, Matrics' 0+, ISO18000-06B

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Black Mark
    • Label
    • RFID Label
  • Media Size:
    • Custom Size - 4.50"
    • 0.80"
    • 4.50"
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

RFID

  • Minimum Operating Frequency: 300 MHz
  • Maximum Operating Frequency: 3 GHz

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL II
Part # Description Availability Price Order
G48924 Zebra Twinax (for the XIII, XIIII and 105SL Printers)
Ships Free in 3-5 Days
$1,029.07
G41355 Zebra Media Rewind Spindle (Enables Rewind and Peel Off) for the XiIII+ Ships Free Today $517.24
Retail $759
Save 31%
G33194-256 Zebra Memory Kit (PCMCIA, 256MB)
Ships Free in 3-5 Days
$293.86
Retail $456
Save 35%
G33114M Zebra Kit (RS-232/RS-485 External Converter) Ships Free Today $45.06
Retail $61
Save 26%
G79094 Zebra ZebraNet PrintServer II, Wireless PrintServer (for the XIII+ Only)
Ships Free in 3-5 Days
$499.21
G47480 Zebra ZebraNet PrintServer II, Internal PrintServer 10/100 Base-T interface for 105SL and 110XiIIIplus Ships Free Today $294.67
Retail $442
Save 33%
NSC-OSMC-NEW-36 Zebra Service Plan, Minimize downtime and extend the life of your equipment with a 3-Year On-Site Service Plan for new printers. When trouble occurs, a technician will arrive onsite in 48 hours with repair parts in-hand.
Ships Free in 3-5 Days
$836.00

The Zebra R13-7A1-00200 is also known as ZEB-R137A100200 or R137A100200 .
