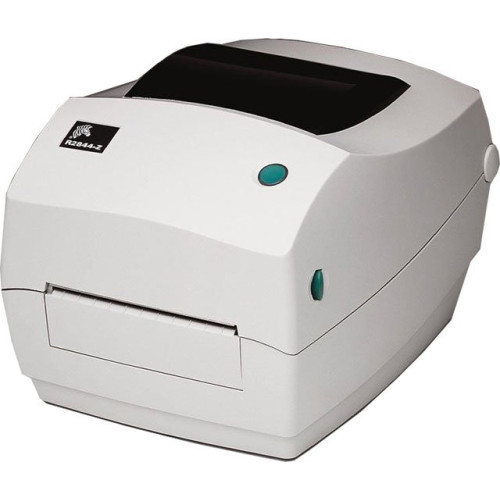

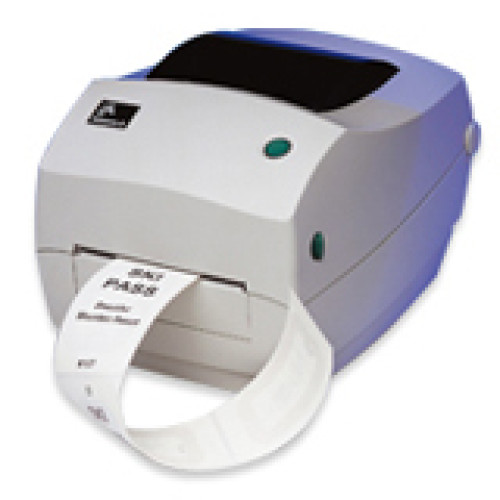

R284-10400-0001 - Zebra R2844-Z RFID Printer

The Zebra R2844-Z combines the industry-standard direct thermal and thermal transfer technologies with the wide capabilities of RFID encoding. The R2844-Z offers the widest range of supported 13.56 MHz HF RFID transponders, and its small size makes it perfect for crowded desktops. Printing and encoding patient wristbands, tickets, tags for library book and video check-out are all made easy with the R2844-Z With a range of connectivity options, the Zebra R2844-Z is the perfect choice for desktop printing and RFID encoding.

Part # Description Availability Price Order
R284-10400-0001 R2844-Z, Thermal transfer HF RFID (13.56 MHz), 4" print width, 203 dpi, Serial/ Ethernet/ USB, Standard flash (4MB) SDRAM (8MB).
Information:   |  Specifications  |  Zebra's R2844-Z page  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra R2844-Z service contract  |
Supplies:   |  Zebra Ribbon  |  Zebra Print head  |

R284-10400-0001 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
    • 1 x USB
    • 1 x Ethernet
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language:
    • ZPL
    • ZPL II
  • Input Voltage Range: 100 to 240 V AC
  • RAM Memory: 8MB
  • Flash Memory: 4MB

General Information

Physical Characteristics

  • Dimensions:
    • 6.8" (172.72mm) x 7.9" (200.66mm) x 9.75" (248mm)
    • 6.8" (172.72mm) x 7.9" (200.66mm) x x 9.75" (248mm)
  • Weight: 3.2 lb (1.45 kg)

Agency Approvals

  • Agency Approvals:
    • FCC Part 15
    • Subpart C
    • C-Tick
    • CE
    • ETSI 300 330-2
    • ETSI EN301-489-3
    • EN55022 Class-B
    • EN61000-3-2
    • EN61000-3-3
    • EN55024
    • CB Scheme IEC 60950: 1991 +A1 +A2 +A3 +A4
    • UL 60950
    • C-UL

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating - Thermal Transfer
    • 40°C (104°F) to 105°F (41°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"
  • Ribbon Core Size: 0.5"
  • Ribbon Setup: Wound Out

Other

  • Package Contents:
    • R2844-Z RFID Printer
    • User Documentation: English

RFID

  • Operating Frequency: 13.56MHz

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
48733-120 Zebra ZebraNet Bridge Enterprise, Net Bridge Enterprise for 1-50 Printers Ships Free Today $535.50
Retail $595
Save 10%
120182G-001 Zebra Keyboard kit, Keyboard Display Unit (KDU) with standard ship-away kit. KDU has 85 Keys, 2 DB-9 Serial ports, 1 PS/2 port. For EPL2 & ZPL Printers. Ships Free Today $210.22
Retail $379
Save 44%
105950-038 Zebra US power cord for Desktop series, Pack of 5 cords Ships Free Today $35.10
105810-003 Zebra 4 inch Media Adapter Guide for LP/TLP 2844, 2844-Z and TLP3842 series printers Ships Free Today $62.90
Retail $74
Save 15%

The Zebra R284-10400-0001 is also known as ZEB-R284104000001 or R284104000001 .
