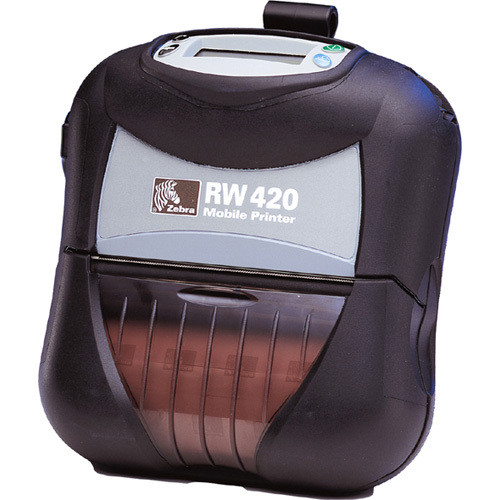

R4D-0U0A000N-10 - Zebra RW420 Portable Bar code Printer

As the only mobile printer to meet the stringent IP54 dust and water resistance rating, the RW420 endures extreme temperatures and weather conditions. Bounce it in the truck, carry it in the rain, drop it to the pavement, and expect the same performance day in and day out. These resilient and lightweight printers can withstand the harsh demands of a number of Route Accounting and Field Service printing applications

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
R4D-0U0A000N-10 RW420, Standard Media, Linered Platen, ADVANCED PUBLIC SAFETY Ships Free Today $769.23
Retail $999
Save 23%
Information:   |  Download Zebra RW420 driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Zebra RW420 service contract  |
Supplies:   |  Zebra RW420 Label  |

R4D-0U0A000N-10 Details

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Receipt Print
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • UCC/EAN 128
    • Code 128
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • EAN-14
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • FIM
    • POSTNET
    • Interleaved 2 of 5
    • MSI
    • Codabar
    • PDF-417
    • Data Matrix
    • Maxi Code
    • RSS
    • GS1 DataBar
    • QR Code

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: RW
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: RW 420
  • Product Name: RW 420 Receipt Printer

Physical Characteristics

  • Height: 6.9"
  • Width: 6.3"
  • Depth: 3"
  • Form Factor: Portable

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Media Type:
    • Receipt
    • Tag
    • Gap
    • Continuous Receipt
    • Linerless
  • Media Thickness: 6.30 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.38"
  • Maximum Roll Diameter: 2.25"

Other

  • Platform Supported: PC
  • Package Contents:
    • RW 420 Receipt Printer
    • Battery
    • Belt Clip
    • RW 420 Receipt Printer
    • Battery
    • Belt Clip

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • EPL
    • XML
    • ZPL

Battery Information

  • Battery Included: Yes
  • Battery Rechargeable: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Power Description

  • Input Voltage: 7.4 V DC

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Part # Description Availability Price Order
Z1AE-RWX1-3C0 Zebra Service Contract - 3 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, RW220, RW420, 3 Years, Comprehensive
Ships Free in 3-5 Days
$149.96
Retail $195
Save 23%
TSP-US-MP-3 BCI Service Contracts, True Support contract 3-year - Mobile Printers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$60.00

The Zebra R4D-0U0A000N-10 is also known as ZEB-R4D-0U0A000N-10 or R4D0U0A000N10 .
