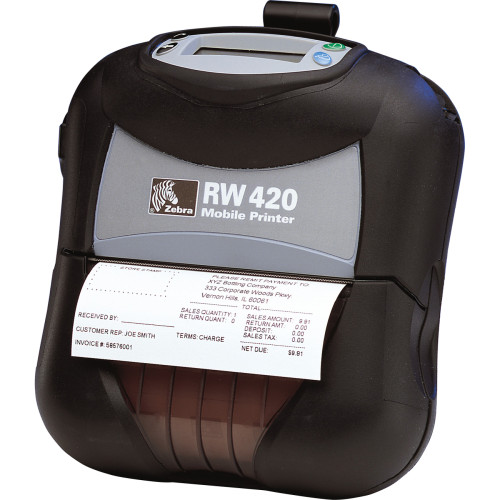

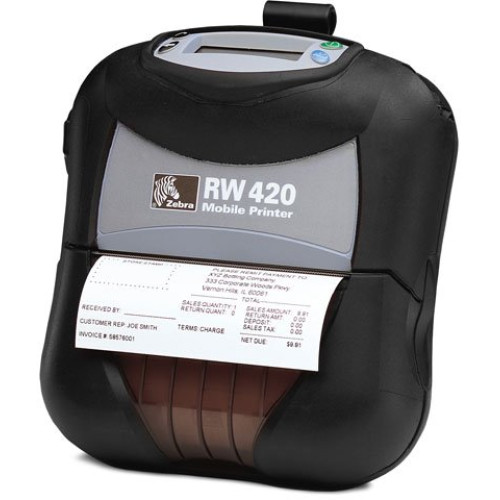

Zebra RW 420 Portable Barcode Printer
Part #: R4D-0UJA010N-00 | SKU: ZEB172306

As the only mobile printer to meet the stringent IP54 dust and water resistance rating, the RW 420 endures extreme temperatures and weather conditions. Bounce it in the truck, carry it in the rain, drop it to the pavement, and expect the same performance day in and day out. These resilient and lightweight printers can withstand the harsh demands of a number of Route Accounting and Field Service printing applications

Zebra RW 420 Portable Barcode Printer

Part Details: Direct thermal mobile printer, 203 dpi, 4" print width, Wi-Fi (802.11b/g), USB/RS-232 interfaces, Bluetooth. Magnetic Stripe and Contact Smart Card reader. Includes belt clip. Charger and interface cables sold separately, see accessories.

Additional Information

Interface Options Wi-Fi
Manufacturer Zebra
Max Label Width 4.12
Max Roll Outer Diameter 2.25
Model Name RW 420
Print Resolution 203 dpi
Printer Type Mobile
Printing Technology Direct Thermal

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Water Resistant
    • Dust Resistant
    • Drop Resistant
    • Magnetic Card Reader
    • Smart Card Reader
    • Belt Clip
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • UCC/EAN 128
    • Code 128
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • EAN-14
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • FIM
    • POSTNET
    • Interleaved 2 of 5
    • MSI
    • Codabar
    • PDF-417
    • Data Matrix
    • Maxi Code
    • QR Code
    • GS1 DataBar
    • RSS

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: RW
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: RW420
  • Product Name: RW420 Mobile Printer

Physical Characteristics

  • Height: 6.9"
  • Width: 6.3"
  • Depth: 3"
  • Form Factor: Portable
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Platform Supported: PC
  • Package Contents:
    • RW420 Mobile Printer
    • Battery
    • Belt Clip
    • RW420 Mobile Printer
    • Battery
    • Belt Clip
  • Certifications & Standards:
    • IP54
    • FCC Part 15 Class B
    • Canadian ICES-003
    • VCCI
    • NOM/NYCE
    • CE compliance (Class B)
    • C-Tick
    • CSA

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Maximum Label Length: 1.38"
  • Media Type:
    • Receipt
    • Direct Thermal Tag
    • Continuous Receipt
    • Continuous Label
    • Linerless
    • Synthetic Media
    • UV Coated Media
    • Linered Media
  • Media Thickness: 6.30 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Maximum Roll Diameter: 2.25"

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • EPL
    • XML
    • CPCL

Battery Information

  • Battery Included: Yes
  • Battery Rechargeable: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b/g

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Power Description

  • Input Voltage: 7.4 V DC
  • Power Source: Battery

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details
