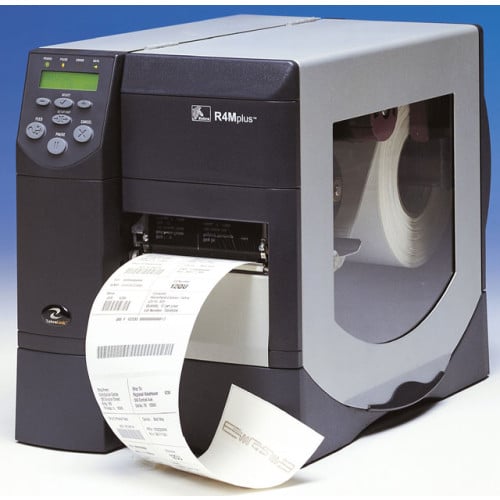

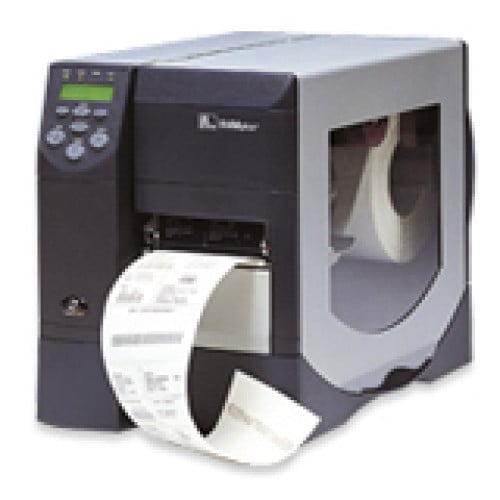

R4M01-2001-0100 - Zebra R4Mplus RFID Printer

The R4Mplus, the newest member of Zebra's RFID printer line, encodes information on ultra-thin UHF RFID transponders embedded in smart labels. The R4Mplus verifies proper encoding, and prints bar codes, graphics, and/or text on the smart label's surface.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
R4M01-2001-0100 R4Mplus, Thermal transfer, 203 dpi, 4.09" print width, 8MB DRAM, 2MB Flash, serial & parallel interfaces. Order cables separately. See accessories.
Information:   |  Specifications  |
Accessories:   |  No accessories available  |  Bar code Software  |  Zebra R4Mplus service contract  |
Supplies:   |  Zebra R4Mplus Label  |  Zebra Print head  |

R4M01-2001-0100 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 10 ips
  • Interfaces:
    • 1 x Serial
    • 1 x Parallel
  • Maximum Print Width: 4.09"
  • Maximum Label Length: 39"
  • Media Sensor: Transmissive
  • Printer Language:
    • ZPL
    • ZPL II
  • Input Voltage Range: 90 to 265 V AC
  • RAM Memory: 8MB
  • Flash Memory: 2MB

General Information

Physical Characteristics

  • Dimensions:
    • 13.32" (338.33mm) x 10.93" (277.62mm) x 18.69" (475mm)
    • 13.32" (338.33mm) x 10.93" (277.62mm) x x 18.69" (475mm)
  • Weight: 32.4 lb (14.7 kg)
  • Shipping Weight: 49lb (22.23kg)

Included Features

  • Included Features: Memory Socket Board: for Compact Flash and PCMCIA Memory cards

Agency Approvals

  • Agency Approvals:
    • EN 60950 (European version)
    • EN 300 220 (European version)
    • ENTSI EN 301-489 (European version)
    • EN 55022 (European version)
    • EN 55024 (European version)
    • EN 61000-3-2 (European version)
    • EN 61000-3-3 (European version)
    • MIC (Japan version)
    • VCCI (Japan version)
    • MIC (South Korea version)
    • BSMI (Taiwan version)
    • DGT (Taiwan version)

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Other

  • Package Contents:
    • R4Mplus RFID Printer
    • Power Cord With US Plug
    • Documentation

RFID

  • Standards Supported: EPC Class 1
  • Operating Frequency: 908MHz to 928MHz

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Part # Description Availability Price Order
02798 Zebra Cables, 6 ft. Parallel printer cable. Replaces (Part# PCM-1100-06). Ships Free Today $15.19
NSC-OSMC-NEW-36 Zebra Service Plan, 3-Year On-Site Service Plan for new printers. When trouble occurs, a technician will arrive on-site in 48 hours with repair parts in-hand.
Ships Free in 3-5 Days
$836.00

The Zebra R4M01-2001-0100 is also known as ZEB-R4M0120010100 or R4M0120010100 .
