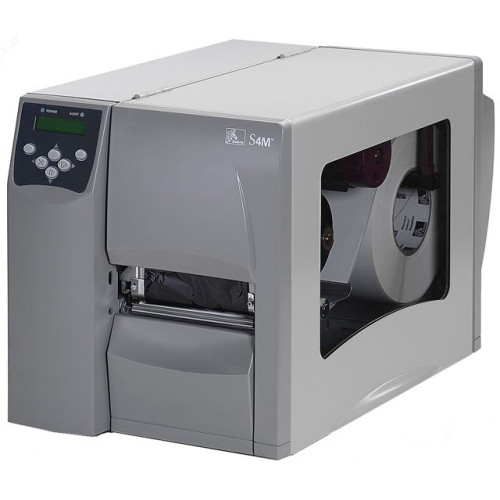

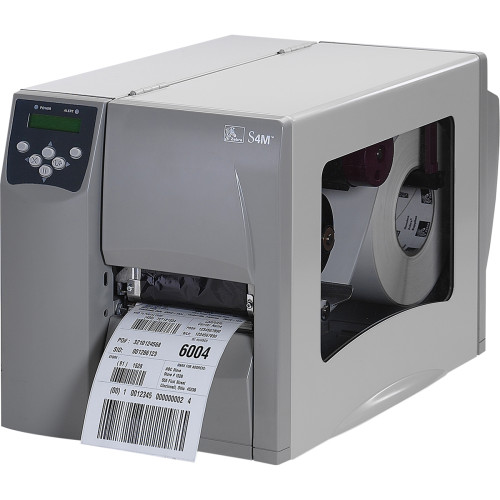

S4M00-2001-0700T - Zebra S4M Bar code Printer

The S4M printer from Zebra packages ease of use, metal construction, and a variety of connectivity options into a thermal printer that takes a full 8" roll of labels for fewer media changes. Designed for the budget-minded, the Zebra S4M has the features needed to support many applications at an affordable price. With easy controls and proven side-loading design, it's quick to learn, use, and load, so operators can focus on more productive tasks. The printer offers standard serial, parallel and USB connectivity, as well as optional internal 10/100 Ethernet and 802.11b wireless networking for simple integration and remote monitoring, plus it can be ordered with different printer programming languages. Compared to similar printers on the market, the S4M thermal printer is an outstanding value.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
S4M00-2001-0700T S4M, Thermal transfer printing, 203 dpi, 4" print width, RS-232/USB/Ethernet interfaces. Includes US Power cord. Interface cables sold separately.
Information:   |  Download Zebra S4M driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra S4M service contract  |
Supplies:   |  Zebra S4M Label  |  Zebra S4M Ribbon  |  Zebra S4M Print head  |

S4M00-2001-0700T Details

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Tear-off
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Codabar
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC-A with 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Planet Code
    • RSS
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • Micro PDF-417
    • TLC 39
    • GS1 DataBar
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: S4M
  • Product Name: S4M Label Printer

Physical Characteristics

  • Height: 11.6"
  • Width: 10.7"
  • Depth: 18.8"
  • Form Factor: Desktop
  • Weight (Approximate): 27.20 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS
  • Platform Supported: PC
  • Package Contents:
    • S4M Label Printer
    • Safety Guide
    • Power Cord with US Plug
    • Software & Driver CD
    • S4M Label Printer
    • Safety Guide
    • Power Cord with US Plug
    • Software & Driver CD
  • Certifications & Standards:
    • PFC
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
    • C-UL-US
    • CE
    • Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
    • Tag
  • Media Thickness: 10 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

The Zebra S4M00-2001-0700T is also known as ZEB-S4M0020010700T or S4M0020010700T .
