Photo of Zebra S4M00-2001-1100T Zebra logo

Zebra S4M

Thermal transfer printing, 203 dpi, 4" print width, Serial/Parallel/USB interfaces, Peeler. Includes US power cord. Interface cables sold separately.

This part is replaced by ZT23042-D11000FZ.
Call for Details

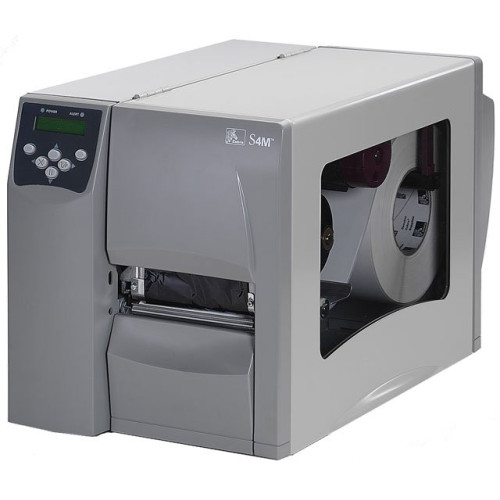

Zebra S4M Printer

The S4M printer from Zebra packages ease of use, metal construction, and a variety of connectivity options into a thermal printer that takes a full 8" roll of labels for fewer media changes. Designed for the budget-minded, the Zebra S4M has the features needed to support many applications at an affordable price. With easy controls and proven side-loading design, it's quick to learn, use, and load, so operators can focus on more productive tasks. The printer offers standard serial, parallel and USB connectivity, as well as optional internal 10/100 Ethernet and 802.11b wireless networking for simple integration and remote monitoring, plus it can be ordered with different printer programming languages. Compared to similar printers on the market, the S4M thermal printer is an outstanding value.

Full specifications (PDF)

Manufacturer part number: S4M00-2001-1100T

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: S4M
  • Product Name: S4M Thermal Label printer

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print

Physical Characteristics

  • Height: 11.6"
  • Width: 10.7"
  • Depth: 18.8"

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Form
    • Die-cut Label
    • Tag
    • Black Mark


  • Platform Supported: PC
  • Package Contents:
    • S4M Label Printer
    • Power Cord with US plug
    • Safety Guide
    • User's CD

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC


  • Limited Warranty: 1 Year


  • Standard Memory: 8 MB
