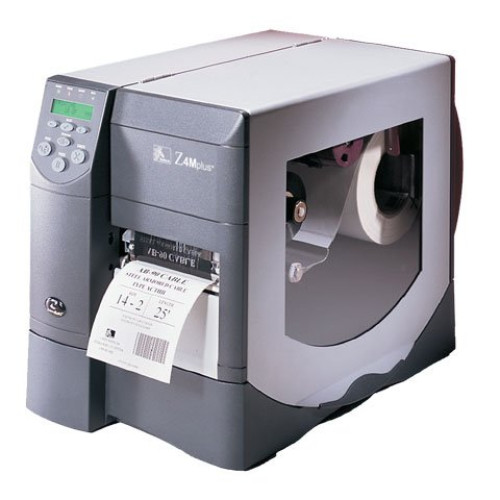

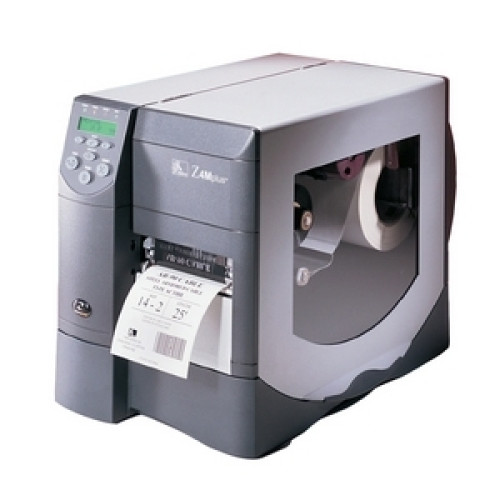

Zebra Z4M Plus Barcode Label Printer
Part #: Z4M00-2001-1020 | SKU: 16967

The Z4M Plus Thermal Printer has a personality all its own-along with a rugged look and feel characteristic of a Zebra workhorse. Among Zebra's fastest printers at 10 inches per second this state-of-the-art metal printer with back-lit LCD control panels works hard but is easy on your budget. The Z4M Plus is the price performance leader in its class - combining state-of-the-art technology and ruggedness in one.

Zebra Z4M Plus Barcode Label Printer

Part Details: Thermal transfer & direct thermal, 203 dpi, 10 ips, 4" print width, Serial & PrintServerII interfaces, 8MB RAM & 2MB flash and Cutter. Includes US power cord. Does not include wireless card. (See (Part# LA-4137-1020-WWR). Order cables separately. See accessories.

Additional Information

Interface Options No
Manufacturer No
Max Label Width No
Max Roll Outer Diameter No
Model Name Z4M Plus
Print Resolution No
Print Speed 10 ips
Printer Type No
Printing Technology Thermal Transfer
Ribbon Core Size No

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 10 ips
  • Interfaces:
    • 1 x Serial
    • Wireless
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.5"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language:
    • ZPL
    • ZPL II
    • Zebra BASIC Interpreter
  • Input Voltage Range: 90 to 265 V AC
  • RAM Memory: 8MB
  • Flash Memory: 2MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 13.32" (338.33mm) x 10.93" (277.62mm) x 18.69" (475mm)
    • 13.32" (338.33mm) x 10.93" (277.62mm) x x 18.69" (475mm)
  • Weight: 32.4 lb (14.7 kg)
  • Shipping Weight: 49lb (22.23kg)

Included Features

  • Included Features:
    • Internal ZebraNet PrintServer II
    • Cutter

Agency Approvals

  • Agency Approvals:
    • IEC60950
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • cULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI (pending)

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • 40°F (4°C) to 104°F (40°C) Operating - Thermal Transfer
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Other

  • Package Contents:
    • Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord with US plug

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
