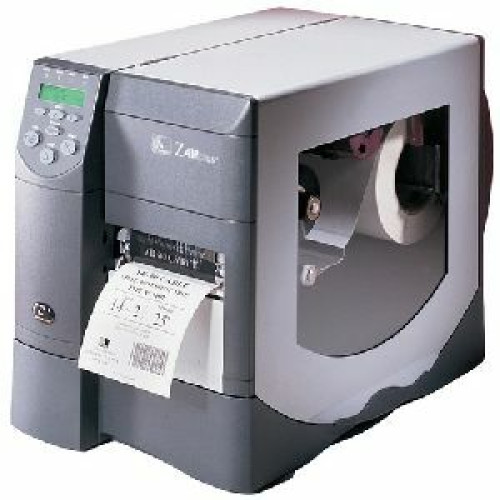

Z4M00-2001-5020 - Zebra Z4Mplus Bar code Printer

The Z4Mplus Thermal Printer has a personality all its own-along with a rugged look and feel characteristic of a Zebra workhorse. Among Zebra's fastest printers at 10 inches per second this state-of-the-art metal printer with back-lit LCD control panels works hard but is easy on your budget. The Z4Mplus is the price performance leader in its class - combining state-of-the-art technology and ruggedness in one.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
Z4M00-2001-5020 Z4Mplus, Thermal transfer, 203 dpi, 10 ips, 4" print width, PrintServer II interface, 8MB RAM & 2MB flash. Includes ZebraLink, US power cord, & peeler and full roll rewinder. Order cables separately. See accessories.
Information:   |  Download Zebra Z4Mplus driver  |  Specifications  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra Z4Mplus service contract  |
Supplies:   |  Zebra Z4Mplus Label  |  Zebra Z4Mplus Ribbon  |  Zebra Z4Mplus Print head  |

Z4M00-2001-5020 Details

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 203 dpi
  • Print Speed: 10 ips
  • Interfaces:
    • 1 x 10 Base-T Ethernet
    • 1 x Ethernet
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language:
    • ZPL
    • ZPL II
  • Input Voltage Range: 90 to 265 V AC
  • RAM Memory: 8MB
  • Flash Memory: 2MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 13.32" (338.33mm) x 10.93" (277.62mm) x 18.69" (475mm)
    • 13.32" (338.33mm) x 10.93" (277.62mm) x x 18.69" (475mm)
  • Weight: 32.4 lb (14.7 kg)
  • Shipping Weight: 49lb (22.23kg)

Included Features

  • Included Features:
    • Peel with Full Roll Rewind
    • Internal ZebraNet PrintServer II

Agency Approvals

  • Agency Approvals:
    • IEC60950
    • EN55022 Class B
    • EN55024 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • CULus
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R
    • BSMI

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • 40°F (4°C) to 104°F (40°C) Operating - Thermal Transfer
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Other

  • Package Contents:
    • Z4Mplus Label Printer
    • Safety Guide
    • User's CD
    • Power Cord with US plug

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

The Zebra Z4M00-2001-5020 is also known as ZEB-Z4M0020015020 or Z4M0020015020 .
