Photo of Zebra ZE50042-L013000Z
Watch Product Video
View larger image Zebra logo

Zebra ZE500

4LH Thermal transfer 203 dpi Serial Parallel USB 11BG PRINT SVR US CORD

$5,524.00

Free Shipping

Ships in 3-6 Days

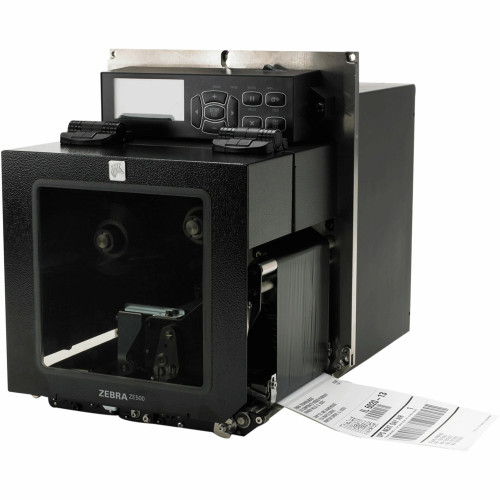

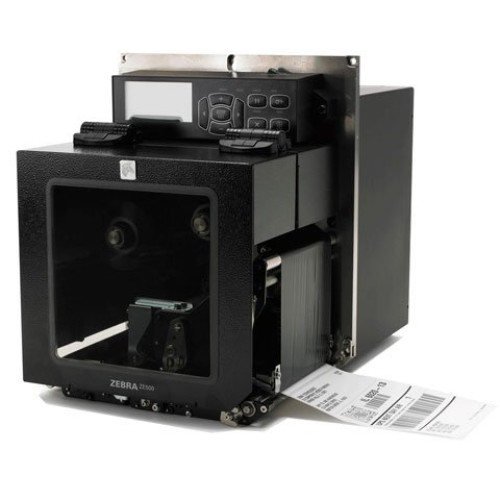

Zebra ZE 500 Print Engine

The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.

Full specifications (PDF)

Manufacturer part number: ZE50042-L013000Z

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features:
    • Element Energy Equalizer
    • Real Time Clock
    • Rotatable Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-E
    • UPC-A
    • EAN-13
    • EAN-8
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Codabar
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • RSS-14
    • RSS Composite
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: ZE500
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZE500-4
  • Product Name: ZE500-4 Label Printer Left-Handed

Physical Characteristics

  • Height: 11.8"
  • Width: 9.6"
  • Depth: 14.9"
  • Form Factor: Desktop
  • Weight (Approximate): 33.95 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • ZE500-4 Label Printer Left-Handed
    • ZebraNet Connectivity Guide
    • Software & Drivers CD
    • North America Power Cords
    • User's Guide
    • ZPL II Programming Guide
    • ZE500-4 Label Printer Left-Handed
    • ZebraNet Connectivity Guide
    • Software & Drivers CD
    • North America Power Cords
    • User's Guide
    • ZPL II Programming Guide
  • Certifications & Standards:
    • EN55022
    • Class A
    • EN55024
    • EN61000-3-2, 3-3
    • NRTL
    • CE
    • FCC A
    • ICES-003
    • VCCI
    • C-Tick
    • CCC
    • NOM
    • Gost-R
    • S- Mark
    • KCC
    • BSMI
    • Unicode

Media Types & Handling

  • Maximum Label Width: 4.49"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 1"
  • Ribbon Core Size: 1"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Wireless LAN: Yes
  • Ethernet Technology: Fast Ethernet
  • Wireless LAN Standard: IEEE 802.11b/g

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • ZPL II
    • ZPL 1

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Display & Graphics

  • Display Screen Type: LCD
