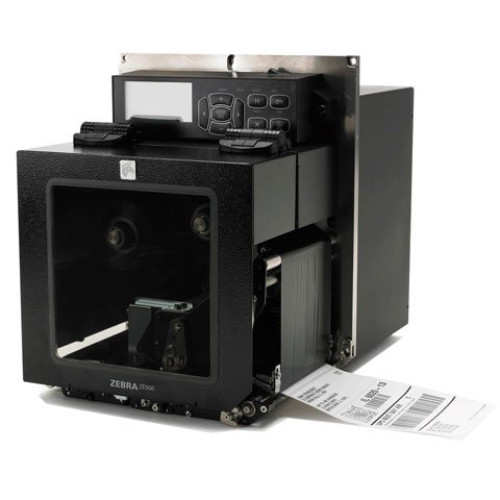

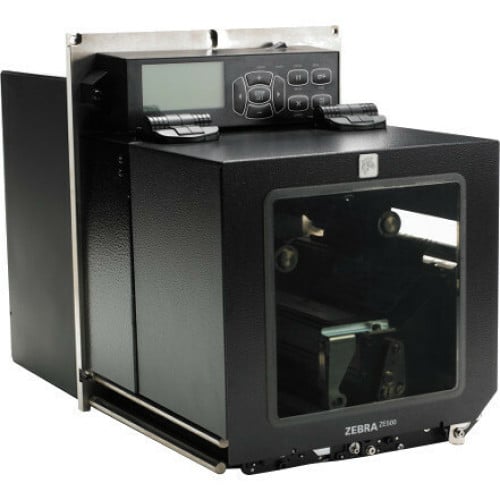

Zebra ZE500 Print Engine
Part #: ZE50062-R010000Z | SKU: ZEB234986

Introducing Zebra's ZE500 Series Print Engines that are innovatively engineered for usability and servicing. The ZE500 is designed to keep your mission-critical print-and-apply applications operating without interruptions. The ZE500 Series can endure harsh environments and are easy to integrate, operate and maintain. The large, graphical display with simple five-button menu can be rotated or remotely located up to two meters with an optional kit, so it is easily accessible even for unusual mounting orientations. Maximize print and image quality with the easy-to-use outboard cam system that adjusts the printhead to the platen roller on all three different axes, no matter what media is in use. Engineered without the need for cooling fans, the ZE500 Series' external cabinet is impervious to prevent debris and water from entering the print engine.

Zebra ZE500 Print Engine

Part Details: ZE500 Thermal Transfer Print Engine, Right Hand, Print Width - 6", DPI - 203, Interface Options - Serial (RS-232), Parallel, USB and Ethernet, Installation available upon request

Additional Information

Interface Options Parallel, Serial (RS-232), USB
Manufacturer Zebra
Model Name ZE500
Print Orientation Right Hand
Print Resolution 203 dpi
Resident Fonts 8 Bit map

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Element Energy Equalizer
    • Rotatable Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-E
    • UPC-A
    • EAN-13
    • EAN-8
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Codabar
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • RSS-14
    • RSS Composite
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: ZE500
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZE500-6
  • Product Name: ZE500-6 Label Printer Right-Handed

Physical Characteristics

  • Height: 11.8"
  • Width: 9.6"
  • Depth: 15"
  • Form Factor: Wall Mount
  • Weight (Approximate): 33.95 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Package Contents:
    • ZE500-6 Label Printer Right-Handed
    • Safety Guide
    • User's CD
    • North American Edition 120 VAC Power Cord
    • ZE500-6 Label Printer Right-Handed
    • Safety Guide
    • User's CD
    • North American Edition 120 VAC Power Cord
  • Certifications & Standards:
    • IEC 60950-1
    • EN55022
    • Class A
    • EN55024
    • EN61000-3-2, 3-3
    • NRTL
    • CE
    • FCC A
    • ICES-003
    • VCCI
    • C-Tick
    • CCC
    • NOM
    • Gost-R
    • S- Mark
    • KCC
    • BSMI
    • Unicode

Media Types & Handling

  • Maximum Label Width: 7.10"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Ribbon Core Size: 1"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • XML

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
