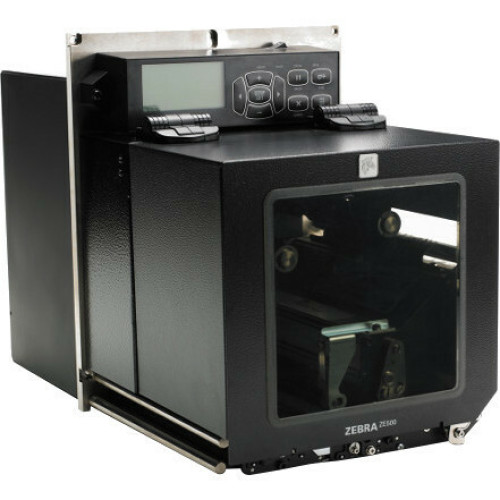

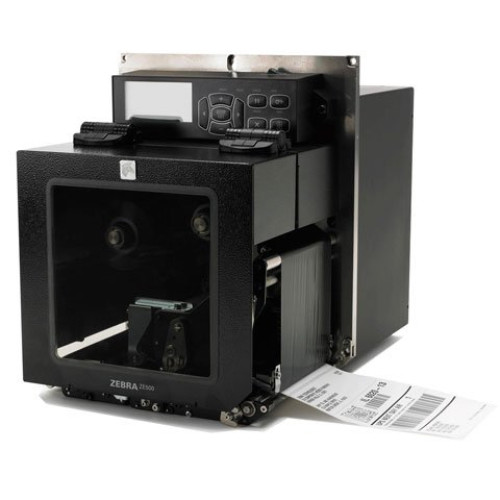

ZE50063-R010000Z - Zebra ZE 500 Print Engine

The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
ZE50063-R010000Z ZE500, Thermal transfer Print Engine, Right Hand, Print width - 6", dpi - 300, Interface Options - Serial (RS-232), Parallel, USB and Ethernet, Installation available upon request Ships Free Today $5,022.73
Information:   |  Specifications  |  Zebra's ZE 500 page  |
Accessories:   |  Accessories/Options  |  Zebra ZE 500 service contract  |
Supplies:   |  Zebra ZE 500 Label  |  Zebra ZE 500 Ribbon  |  Zebra ZE 500 Print head  |

ZE50063-R010000Z Details

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Recommended Use: Label Print
  • Features:
    • Real Time Clock
    • Element Energy Equalizer
    • Rotatable Display
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-E
    • UPC-A
    • EAN-13
    • EAN-8
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Codabar
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • RSS-14
    • RSS Composite
    • Aztec Code

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: ZE500
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZE500-6
  • Product Name: ZE500-6 Label Printer Right-Handed

Physical Characteristics

  • Height: 11.8"
  • Width: 9.6"
  • Depth: 15"
  • Form Factor: Wall Mount
  • Weight (Approximate): 33.95 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Package Contents:
    • ZE500-6 Label Printer Right-Handed
    • Safety Guide
    • User's CD
    • North American Edition 120 VAC Power Cord
    • ZE500-6 Label Printer Right-Handed
    • Safety Guide
    • User's CD
    • North American Edition 120 VAC Power Cord
  • Certifications & Standards:
    • IEC 60950-1
    • EN55022
    • Class A
    • EN55024
    • EN61000-3-2, 3-3
    • NRTL
    • CE
    • FCC A
    • ICES-003
    • VCCI
    • C-Tick
    • CCC
    • NOM
    • Gost-R
    • S- Mark
    • KCC
    • BSMI
    • Unicode

Media Types & Handling

  • Maximum Label Width: 7.10"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
  • Media Thickness: 12 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Ribbon Core Size: 1"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • XML

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

The Zebra ZE50063-R010000Z is also known as ZE50063-R010000Z or ZE50063R010000Z .
