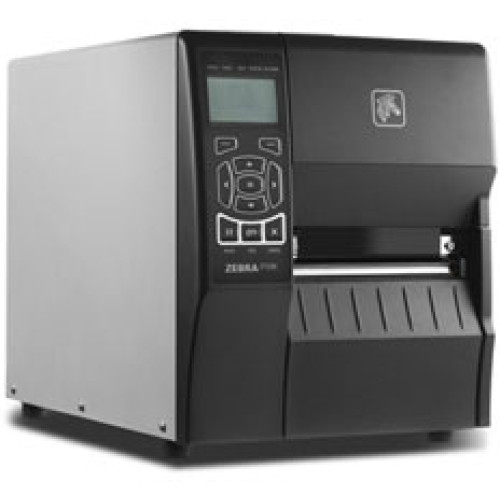

ZT23043-D01000FZ - Zebra ZT230 Bar code Printer

The ZT230 is the premium product within the Zebra printer line. Distinguishing features of the ZT230 include the mostly metal printer cover, an icon based LCD graphical user interface, and larger print ribbon capacity (450M). The ZT230 is the next generation replacement for the S4M, having the same list price while offering an enhanced feature set and improved mechanical and functional design.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
ZT23043-D01000FZ ZT230, Direct thermal printing, 300 dpi, 4" print width, Serial and USB Interfaces, and US Power cord. Cables sold separately. Ships Free Today $1,029.60
Retail $1430
Save 28%
Information:   |  Download Zebra ZT230 driver  |  Specifications  |  Zebra's ZT230 page  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  Zebra ZT230 service contract  |
Supplies:   |  Zebra ZT230 Label  |  Zebra ZT230 Ribbon  |  Zebra ZT230 Print head  |

ZT23043-D01000FZ Details

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Tear-off
    • Element Energy Equalizer
    • Bi-color LED
    • Clear Bi-fold Media Side Door
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • EAN With 2 or 5 Digit Extension
    • UPC 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Codabar
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • Maxi Code
    • QR Code
    • TLC 39
    • Micro PDF
    • RSS-14
    • Aztec Code
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: ZT200
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: ZT230
  • Product Name: ZT230 Industrial Printer

Physical Characteristics

  • Height: 10.9"
  • Width: 9.5"
  • Depth: 17"
  • Form Factor: Desktop
  • Weight (Approximate): 20 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Package Contents:
    • ZT230 Industrial Printer
    • Power Cord with US Plug
    • ZT230 Industrial Printer
    • Power Cord with US Plug
  • Certifications & Standards:
    • IEC 60950
    • EN 55022 Class B
    • EN55024
    • EN 61000-3-2
    • EN 61000-3-3
    • UL
    • CE Marking
    • FCC-B
    • ICES-003
    • VCCI
    • C-Tick
    • NOM
    • IRAM
    • CCC
    • GOST-R

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 39"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Notch
    • Black Mark
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 128 MB
  • Memory Technology: DRAM
  • Flash Memory: 128 MB

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Fonts & Emulation

  • Language Emulation: ZPL
Part # Description Availability Price Order
10015347-R Zebra Z-Select 4000D, 4" x 6" Direct thermal paper label. 475 labels/roll, single roll. Also available as a case (Part# 10015347). Ships Today $22.58
10015347 Zebra Z-Select 4000D, 4" x 6" Direct thermal paper label. 475 labels/roll. 12 roll case. Also available as a roll (Part# 10015347-R). Ships Today $253.77
10015341-R Zebra Z-Select 4000D, 2.25" x 1.25" Direct thermal paper label. 2,100 labels/roll, single roll. Also available as a case (Part# 10015341). Ships Today $17.48
10015341 Zebra Z-Select 4000D, 2.25" x 1.25" Direct thermal paper label. 2,100 labels/roll, 12 roll case. Also available as a roll (Part# 10015341-R) Ships Today $150.97
10010047-R Zebra Z-Select 4000D, 4" x 2" Direct thermal paper label. 1,240 labels/roll, single roll. Also available as a case (Part# 10010047). Ships Today $22.89
10010047 Zebra Z-Select 4000D, 4" x 2" Direct thermal paper labels, Perforated, 1240 labels/roll, 6 roll case. Also available as a Single roll (Part# 10010047-R). Ships Today $130.02
Z1AE-ZT2X-3C0 Zebra Service Contract - 3 year, Essential, Purchased within 30 days of Device, 3 Day TAT NA, MX, 5 DAY TAT ROW, ZT200 Series, 3 Years, Comprehensive
Ships Free in 3-5 Days
$280.70
Retail $365
Save 23%

The Zebra ZT23043-D01000FZ is also known as ZEB-ZT23043D01000FZ or ZT23043D01000FZ .
